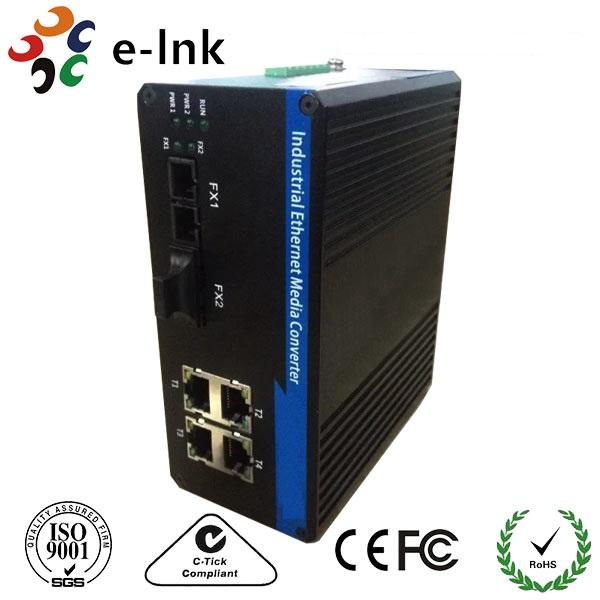

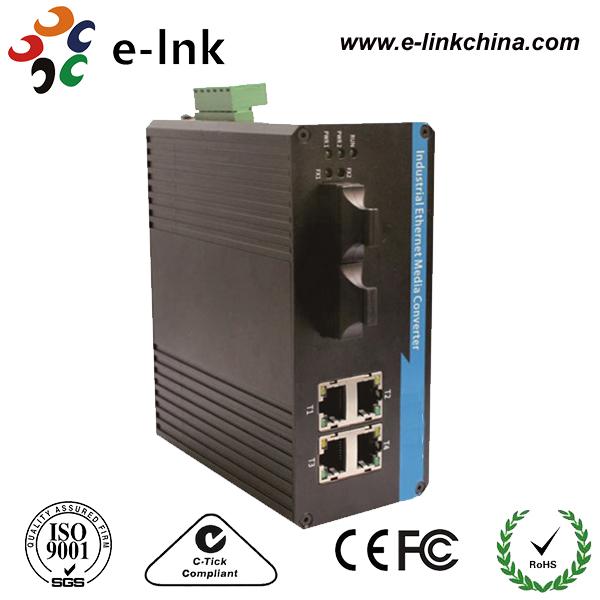

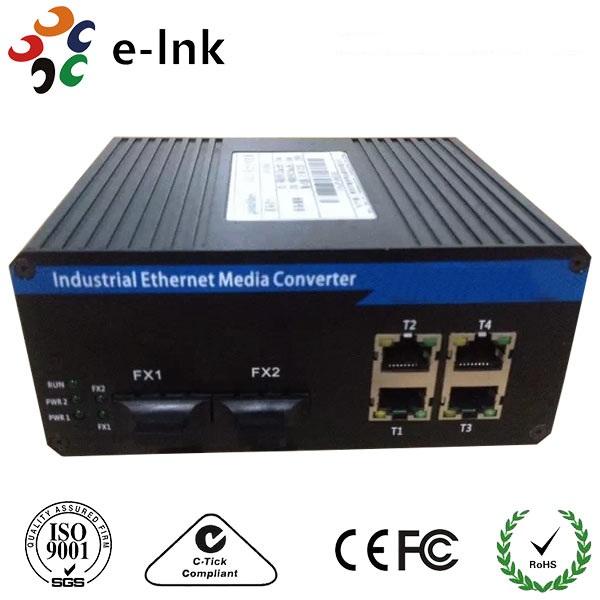

Din Rail / Wall Mounting Industrial Ethernet Media Converter 4G + 2 SC Gigabit Ethernet Switch
4G+2SC Gigabit Industrial Ethernet Switch
Model: LNK-GY204G Series
Overview
LNK-GY204G Series Hardened Industrial Ethernet Switch supports 4 x Gigabit Ethernet and 2 x SC Fiber Ports.
To create reliability in your network, the LNK-GY204G comes equipped with a proprietary redundant network protocol, which provides users with an easy way to establish a redundant Ethernet network with ultra high-speed recovery time less than 20ms.
Furthermore, LNK-GY204G also supports many advanced network standards to optimize network performance, ease maintenance issues, and secure network safety.
Features
- All Gigabit Ethernet ports for 4 Copper and 2 SC
- SC Port can be SMF, MMF
- Support IEEE802.3, IEEE802.3x, IEEE802.3u Standard
- Support full-duplex and half-duplex and its auto-sensed
- Support auto-sense of MDI/MDI-X, facilitating system commissioning and installation
- -40℃ to 80℃ operating temperature range
- Designed for industrial applications. IP40 protection, Aluminum Alloy
Technical Indexes
| Parameter |
Specifications |
| Standard |
IEEE802.3 (10BASE-T), IEEE802.3u 100BASE-TX/FX (Fast-Ethernet), |
| RJ45 port rate |
4 x RJ45 Ports: 10/100/1000BaseT(X) auto connection, Full/Half duplex or force work mode, and support MDI/MDI-X connection |
| Fiber Ports |
2 x SC ports |
| Transmission |
Twisted pair: 100m (Standard CAT5/CAT5e cable) |
| Power Input options |
Input Voltage: 24VDC(18~36V DC) |
| Environmental Limits |
Operating Temperature: -40℃ to +80℃ |
| Mechanical Dimension |
Dimensions:138 x 112 x 60 mm |
| Approvals |
EMI: FCC Part 15 Subpart B Class A,EN 55022 Class A |
