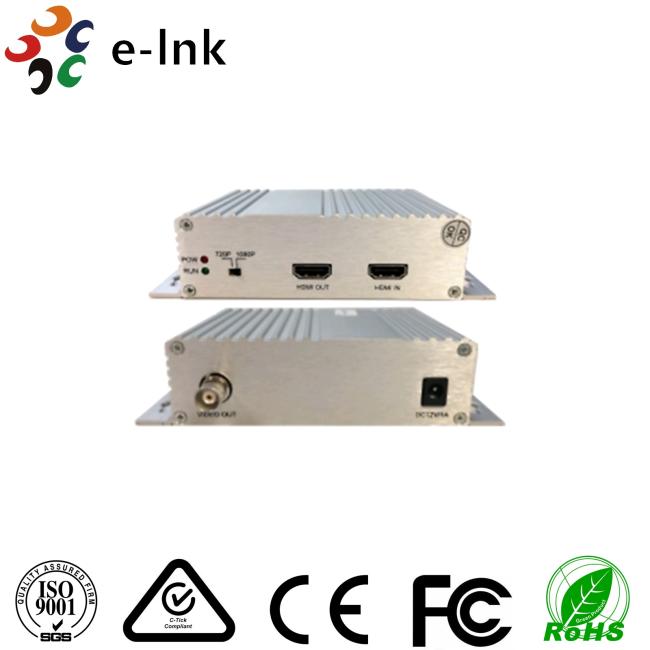

LNK-HT01 Series HDMI TO TVI AHD Video Converter
Model: LNK-HT01 Series
Technical Indexes
| Onput Interface | IEEE802.3 10BASE-T |
| Input Signal Type | HDMI |
| TVI Output Format | 720P or 1080P 30/25Hz |
| Max. Input Coax Length | 400 meters for 1080P |
| HDMI Loop out | HDMI x 1 |
| HDMI input support |
800x600, 1024x768, 1280x720, 1280x1024. 1400x900, 1920x1080p |
| Power Supply | DC12V,1A |
| Power Consumption | 4-5Watts |
| Operating Temperature | -10°C ~ 60°C / 14°F ~ 140°F |
| Storage Temperature | -0°C to 50°C (32°F to 122°F) |
| Storage Temperature: | -30°C ~ 70°C / -22°F ~158°F |
| Relative Humidity | 20~90% RH (Non-condensation) |
| Dimension | 145*90*35mm |
Overview
● Detect the HDMI EDID information automatically.
● Receive the HDMI video then converter to TVI output and HDMI loop output.
● HDMI video input supports: 1280x720,800x600,1024x768,1280x1024,1440x900,1920x1080.
● The output of TVI supports 720P or 1080P 30/25Hz. When the resolution of HDMI input is 800x600,1024x768,1280x720, the TVI output is 720P, when is other resolution, the TVI output is 1080P.
● The resolution of HDMI loop output is same as the HDMI input.
● With POWER LED and RUN LED.
Features
● Automatically detect the HDMI EDID information
● The output of TVI supports 720P and 1080P 30/25Hz
● One Channel HDMI loop out
● When the resolution of HDMI input is 800x600,1024x768,1280x720,the TVI output is 720P, when is other resolution, the TVI output is 1080P.
● The HDMI video input supports:
800x600,1024x768, 1280x720,1280x1024, 1400x900,1920x1080p

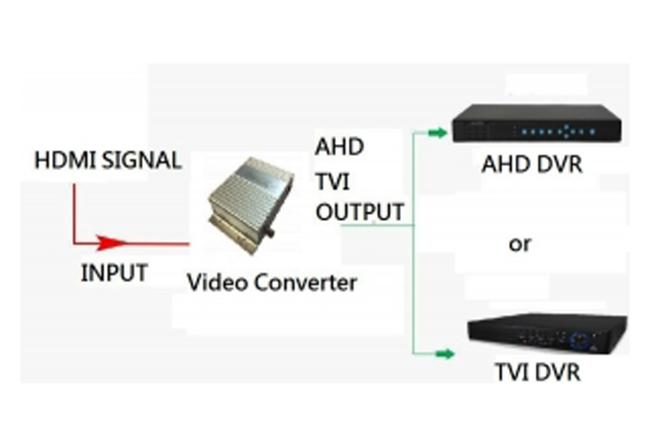

Typical Application
