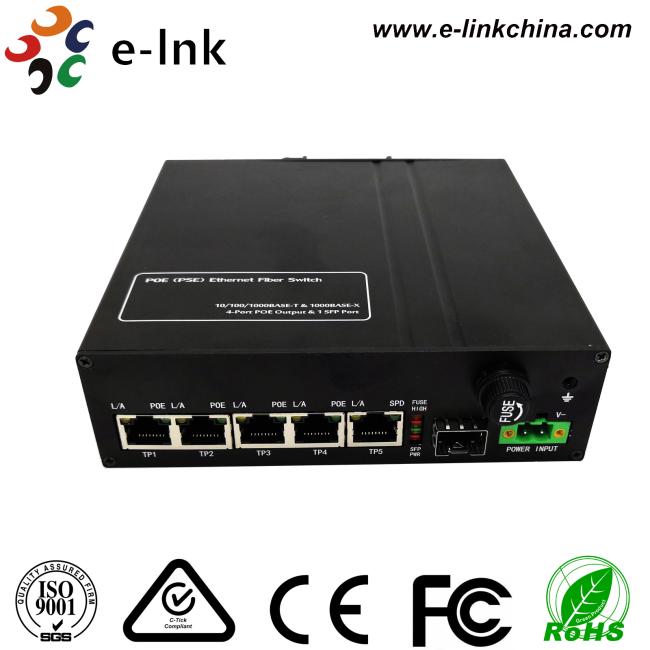

10-18VDC Input Industrial Ethernet POE Switch With 5 Ports Gigabit POE+ 1 SFP Port
Industrial 5-port 10/100/1000BASE-T (4-port PoE+) + 1-port 1000BASE-FX SFP Ethernet Switch with 12VDC power input
Model: LNK-GY104GP-12V Series
LNK-GY104GP-12V is a 5 ports 10/100/1000Base-TX + 1 port 1000Base-FX SFP Industrial PoE switch with 12VDC power input. The Switch provides 4 port PoE+ function for kinds of Powered Devices to receive power as well as data over RJ-45 cable. SFP ports to support the use of SFP (Small Form-factor Pluggable) transceiver module. User can chose different types of SFPs (1000M only). The Switch supports 1 or 2 core Single-mode or Multi-mode fiber. With its reliable design and ease of use, the product is a great choice for integrating networks consisting of network devices such as IP cameras and wireless access points between remote locations.
Technical Indexes
| Ethernet | |
| Standards: | IEEE802.3 10BASE-T |
| IEEE802.3u 100BASE-TX/FX | |
| IEEE802.3ab 1000BASE-T | |
| IEEE802.3z 1000BASE-X | |
| IEEE802.3af Power over Ethernet | |
| IEEE802.3at Power over Ethernet | |
| Forward & Filtering Rate: | 14,880pps (10Mbps) |
| 148,800pps (100Mbps) | |
| 1,488,000pps (1000Mbps) | |
| Packet Buffer Memory: | 1M bits |
| Processing Type: | Store-and-Forward |
| MAC Table Size: | 8K |
| Interface | |
| Connector: | 5 x RJ45 |
| Optical Port: | 1 x SFP 1000Base-X |
| Environmental | |
| Operating Temperature: | -40°C to 80°C (-40°F to 176°F) |
| Storage Temperature: | -40°C to 85°C (-40°F to 185°F) |
| Relative Humidity: | 5% to 95% non-condensing |
| MTBF | > 200,000 hrs |
| PoE: | |
| Input Power: | 12VDC |
| Power/Distance 54V: | Distance: 100m |
| Power: 26W | |
| Standard: | IEEE802.3af/at |
| Port: | RJ45 Port 1 ~ Port 4 |
| Max. Power per Port: | 30W Max per port (Alternative B Mode) |
| Output Power Budget | 100W Max. |
| Protection: | |
| Overload Current: | Present |
| Reverse Polarity: | Present |
| LED Indicators: | |
| Power: | Power1, Power2 Status |
| PoE: | Per Port Status |
| Ethernet(Per Port): | Link/Activity |
| SFP: | Link/Activity |
| Dimensions (WxDxH): | 40 x 145 x 145 mm |
| Weight: | 0.8Kg |
| Casing: | Metal Case |
| Mounting Options: | DIN-Rail / Wall-mount/Desktop |
| Regulatory Approvals | |
| ISO9001 | |
| EN55022:2010+AC: 2011, Class A | |
| EN 61000-3-2: 2006+A1: 2009+A2: 2009 | |
| EN 61000-3-3: 2013 | |
| EN55024:2010 | |
| IEC 61000-4-2: 2008 (ESD) | |
| IEC 61000-4-3: 2010 (RS) | |
| IEC 61000-4-4: 2012 (EFT) | |
| IEC 61000-4-5: 2014 (Surge) | |
| IEC 61000-4-6: 2013 (CS) | |
| IEC 61000-4-8: 2009 (PFMF) | |
Features
· 4 10/100/1000 TX PoE ports and 1 1000 FX uplink port(SFP uplink)
· Support 12VDC (10~18VDC) Power Input
· Up to 30W on each PoE port
· Output power budget : 100W max
· Terminal Block Power Input for Industrial Application.
· To protect the external battery set
· Super lightening protection, IP40 protection
· Excellent heat elimination without cooling fan
· DIN-Rail/ Wall-mounting and Desktop Installation
· -40°C to 80°C (-40°F to 176°F) operating temperature
Warranty
· 5-Year Warranty
Ordering Information
| Model | Description |
| LNK-GY104GP-12V | Industrial 5-port 10/100/1000BASE-T (4-port PoE+) + 1-port 1000BASE-FX SFP Ethernet Switch with 12VDC power input |
| SFP Options | ► SFP option. Please select your SFP on our SFP Options Page |
| ► SFP module is to be purchased separately. | |
| Mounting Options | ► Default DIN-Rail Bracket installed, Wall Mount Bracket is included. |
| Power Options | ► 10~18VDC DIN-Rail Power Supply. Open Wire for Terminal Block. |
| ► Power Supply is to be purchased separately. |

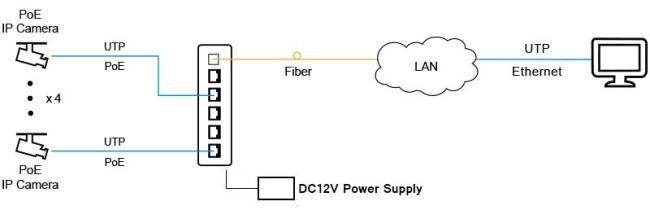

Application
