100Ghz 200Ghz DWDM Multiplexer Packaged in LGX Cassette
Overview

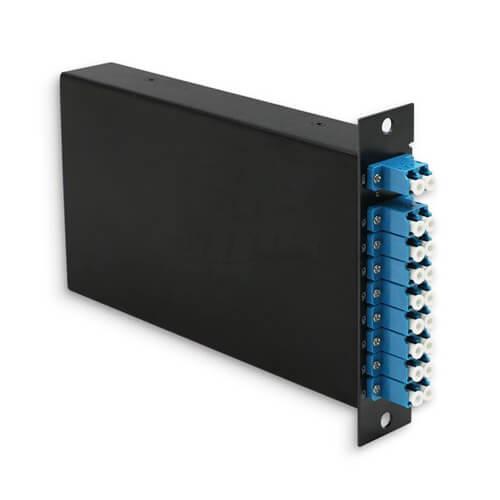

E-link’s LGX DWDM cassette has a hard metal case. It has been integrated with the fiber optic adapters. You only need to plug in the corresponding fiber optic patch cords to connect your network.
The LGX type DWDM Module can use LC, SC, FC, ST or E2000 connectors. It can be used alone or plugged into the 1U, 2U or 4U rack mount for easy management. Simplex or Duplex DWDM multiplexer is available. Welcome to contact us to get more information.
1. Features
- Low Insertion Loss
- High Isolation
- Low PDL
- Compact Design
- Good channel-to-channel uniformity
- Wide Operating Wavelength: From 1460nm to 1620nm
- Wide Operating Temperature: From -40℃ to 85℃
- High Reliability and Stability
2. Applications
- DWDM System
- PON Networks
- CATV Links
3. Compliance
- Telcordia GR-1209-CORE-2001
- Telcordia GR-1221-CORE-1999
- ITU-T G.694.1
- RoHS
4. Specifications
1×N DWDM Mux/Demux Module
| Parameters | |||||||
| Channel Space (GHz) | 100 | 200 | |||||
| Channel Number | 1*4 | 1*8 | 1*16 | 1*4 | 1*8 | 1*16 | |
| Center Wavelength (nm) | ITU Grid | ||||||
| Center Wavelength Accuracy (nm) | ± 0.05 | ± 0.1 | |||||
| Channel Passband (@-0.5dB) (nm) | 0.22 | 0.5 | |||||
| Fiber Type | SMF-28e with 900um loose tube or customer specified | ||||||
| IL (dB) | 1.8 | 3.0 | 4.0 | 1.7 | 2.9 | 3.8 | |
| Passband Ripple (dB) | 0.35 | 0.4 | 0.5 | 0.35 | 0.4 | 0.5 | |
| Isolation(dB) | Adjacent Channel | 25 | 28 | ||||
| Non-Adjacent Channel | 40 | ||||||
| PDL (dB) | 0.2 | ||||||
| PMD (ps) | 0.1 | ||||||
| RL (dB) | 45 | ||||||
| Directivity (dB) | 50 | ||||||
| Maximum Optical Power (mw) | 300 | ||||||
| Operating Temperature (℃) | -40~85 | ||||||
| Storage Temperature (℃) | -40~85 | ||||||
| BOX Package (mm) | 100*80*10 or 140*115*18 | ||||||
| LGX Package | 1U,2U | ||||||
| 19’’ Rack mount Package | 1U | ||||||
Notes:
1. Specified without connectors.
2. Add an additional 0.2dB loss per connector.
