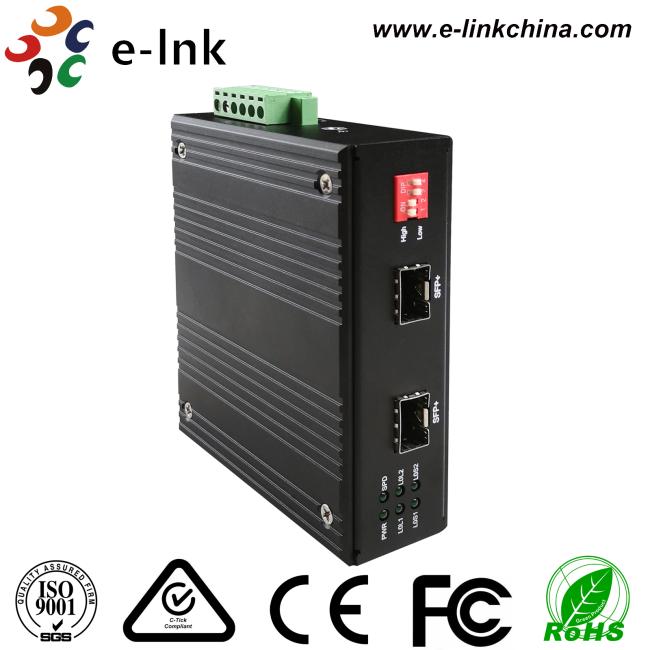

Industrial 10G SFP+ to SFP+ OEO Converter 3R Repeater
Industrial 10G SFP+ to SFP+ OEO Converter 3R Repeater
Model: LNK-GY-OEO-10G Series
Overview
E-link Industrial 10G OEO Converter supports connection between fiber to fiber 10Gbps equipment function as fiber media converter, or as fiber repeater for long distance transmission. The OEO converter can be for network backbone (SAN, LAN and MAN). It supports SDH/SONET STM-64/OC-192, 10G fiber channel, 10G Ethernet etc. It can be applied in Telecommunication room, R&D laboratory, Data center, and etc. It supports 1310nm /1550nm/CWDM/DWDM Optical Wavelength Conversion. It also supports Loopback.
Features
- Support Loopback
- Support Jumbo Frame
- Support hot plugging
- Transparent Transport and very low delay
- 3R function(Regeneration, Reshaping , Retiming)
- Support ITUT prescribed DWDM/CWDM wavelength
- Support hot plug
- Full State Led display
- Easy installation
Technical Indexes
| Performance Data | Technical Indexes |
| Equipment function | 3R Repeater |
| Transmission Speed | 8.5Gb/s-11.7Gb/s |
| Protocols |
8.5G Fiber Channel SONET OC-192, SDH STM-64 (9.95Gbps) 10G WAN (10Gbps) 10G LAN (10.31Gbps) OTN OTU-2 (G.709) (10.70Gbps) 10G LAN with 255/237 FEC coding (11.09Gbps) 10G Fiber Channel (11.32Gbps) 10G POS |
| Interface Type | SFP+ to SFP+ |
| Transmission Distance | SFP+ module: up to 80km |
|
Maximum Packet Forwarding Rate |
14,880,950/S |
| Power Requirement |
Standalone : 12~48VDC Power consumption: ≤4W |
| Work Environment |
Operating Temp: -40~ +85 ℃ Storage Temp: -40~ 85 ℃ Humidity: 5%~90% ( non-condensing ) |
| Dimension (LxWxH) | Standalone :110 x 96.5 x 35 (mm) |
Ordering Information
| Model | Description |
| LNK-GY-OEO-10GSS | Industrial 10G OEO Converter (3R Repeater) (SFP+ to SFP+), support 1.25G-14G SFP module |
