150 Watt Ethernet POE Switch 8 Ports New Condition 20Gbps AC100-240V 50/60HZ
8 Ports 10/100/1000Mbps Gigabit PoE Switch with 1 Uplink and 1 SFP
Overview
LNK-8GP1G1SFP is an unmanaged PoE switch with gigabit uplink that 8 Gigabit ports support PoE and complies to IEEE 802.3af/at. The whole device PoE output power can achieve 150W with its single port PoE power up to 30W. Supporting standard normal, flow control and VLAN(port isolation) modes, the switch can adapt to multiple and complex environments. As a PoE power supply device, it can automatically detect and supply power for powered devices suitable for PoE standard. Having the features of "play and plug", no need of configuration and easier and more convenient usage, network in hotels, schools, factory areas, domitories and small enterprises.
Feature
- 8-port 10/100/1000BASE-T Gigabit RJ45 copper
- 1-port 10/100/1000BASE-T TP
- 1-port 1000BASE-X mini-GBIC SFP
- 10/100/1000Mbps auto-negotiation and auto MDI/MDI-X
- Complies with IEEE 802.3af/at Power over Ethernet end-span PSE
- PoE output power up to 150W
- Complied to IEEE 802.3af/at
- Operating Mode: N(Standard normal), V(Port isolation) and C(Flow control)
- Environmentally -10°C to 55°C operating temperature

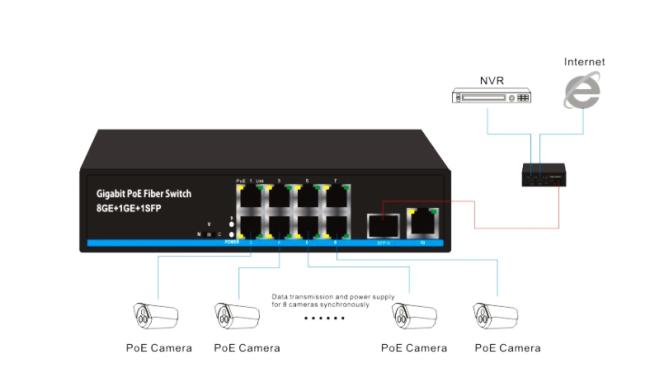

Application
Specification
| Model | LNK-8GP1G1SFP |
| Product | 8+1+1 PoE Switch |
| Fixed Port | 8*10/100/1000Base-TX PoE port(Data/Power) |
| 1*10/100/1000Base-TX uplink RJ45 port (Data) | |
| 1*1000M SFP | |
| PoE ports | 1-8 port supports PoE(optional first port outputs HiPoE-60W) |
| Function | N:(Standard normal) |
| V:(Port isolation) | |
| P:(Flow Control mode) | |
| Network Protocol | IEEE 802.3 |
| IEEE 802.3i 10BASE-T | |
| IEEE 802.3u 100BASE-TX | |
| IEEE 802.3ab 1000BASE-T | |
| IEEE 802.3x | |
| IEEE 802.3z 1000BASE-X | |
| IEEE 802.3af/at | |
| PoE Standard | IEEE802.3af/at |
| Port Specification | 10/100/1000BaseT(X)Auto |
| Transmission Mode | Store and Forward(full wirespeed) |
| Bandwidth | 20Gbps |
| Packet Forwarding | 14.44Mpps |
| MAC Address | 2K |
| Buffer | 2.5M |
| Transmission Distance | 10BASE-T : Cat3,4,5 UTP(≤250 meter) |
| 100BASE-TX : Cat5 or later UTP(150 meter) | |
| 1000BASE-TX : Cat6 or later UTP(150 meter) | |
| 1000BASE-SX:62.5μm/50μm MMF(2m~550m) | |
| 1000BASE-LX:62.5μm/50μm MM(2m~550m) or 10μm SMF(2m~5000m) | |
| Power Pin | Default 1/2(+),3/6(-)； Optional 4/5(+),7/8(-) |
| Single port power | Average 15.4W；MAX 30W |
| Total power/Input voltage | MAX 150W (AC100-240V 50/60HZ) |
| Watt | Standby Power Consumption:≤8W； |
| LED Indicator | POWER: Power LED9optional over-power LED) |
| Uplink:(Link LED=10/100M Link,1000M=Gigabit Link) | |
| 9:(SFP LED) | |
| Port:(Orange=PoE LED+Green=Link LED) | |
| Power Input | Built-in power AC:100～240V 50-60Hz 1A |
| Operating Temperature/Humidity | -10～+55°C；5%～90% RH Non coagulation |
| Storage Temperature/Humidity | -40～+75°C；5%～95% RH Non coagulation |
| Product size/Packing size(L*W*H) | 210mm*140mm*45mm |
| 270mm*220mm*70mm | |
| N.W/G.W(kg) | 1.1kg/1.4kg |
| Installation | Desktop (optional wall+machine hangers) |
| Lightning protection level | 3KV 8/20us； |
| IP30 | |
| Certificate | CE mark, commercial；CE/LVD EN60950； |
| FCC Part 15 Class B；RoHS； | |
| Warranty | Whole device for 1 year(Accessories not included) |
Order Information
| Model | Description |
| LNK-8GP1G1SFP | 8-Port 10/100/1000T 802.3at PoE + 1-Port Uplink Ethernet + 1-Port Gigabit SFP Ethernet Switch, PoE Budget: 150W, Built-in Power Supply |
| SFP Options | ► SFP option. Please select your SFP on our SFP Options Page (Industrial SFP). |
| ► SFP module is to be purchased separately. | |
| Mounting Options | ► Wall Mount or Rack Mount installation |
