Ethernet

Standards:

IEEE 802.3 Ethernet

IEEE 802.3u Fast Ethernet

IEEE 802.3ab Gigabit Ethernet

IEEE 802.3x Full-Duplex Flow Control

IEEE 802.3az Energy Efficient Ethernet (EEE)

IEEE 802.3at Power over Ethernet Plus PSE

IEEE 802.3af Power over Ethernet Plus

Forward & Filtering Rate:

14,880pps (10Mbps)

148,800pps (100Mbps)

1,488,000pps (1000Mbps)

Packet Buffer:

1Mbits

Packet Length:

10Kbytes

MAC Address Table:

8K

Switch Fabric:

10Gbps/non-blocking

Exchange Property

Backplane bandwidth: 20Gbps;

Packet forwarding rate: 14.88Mpps

Connector:

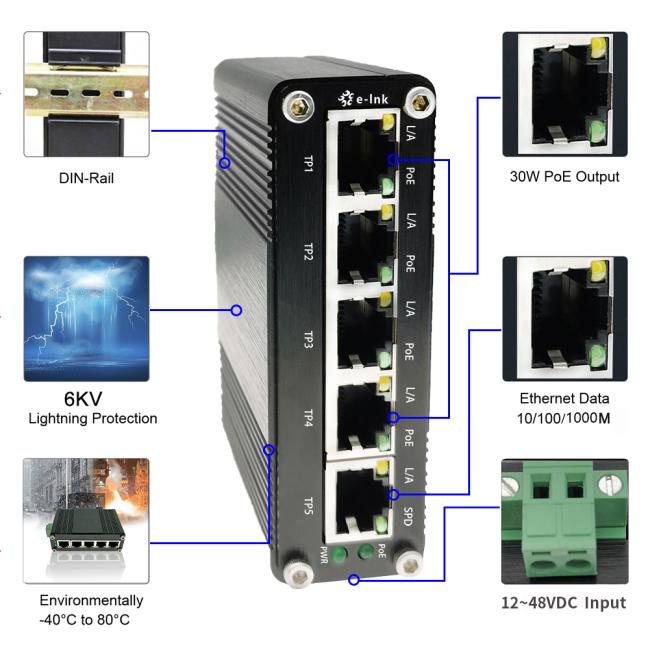

5 10/100/1000BASET RJ45 auto-MDI/MDI-X ports

4 ports with 802.3at PoE+ injector function (Ports 1 to 4)

PoE (Power over Ethernet)

Standard:

IEEE802.3af/at

Port:

RJ45

Power Pin Assignment

4/5(+), 7/8(-)

PoE Budget:

Up to 120-watt PoE budget (48VDC), 90-watt PoE budget (24VDC), 60-watt PoE budget (12VDC)

Environmental

Operating Temperature:

-40°C to 80°C (-40°F to 176°F)

Storage Temperature:

-40°C to 85°C (-40°F to 185°F)

Relative Humidity:

5% to 95% non-condensing

MTBF

> 200,000 hrs
