12-48VDC 30W PoE Media Converter DIN Rail With 100/1000M SFP Port
12-48V DC Input DIN Rail Industrial Grade Gigabit 30W PoE Media Converter with 100/1000M SFP Port

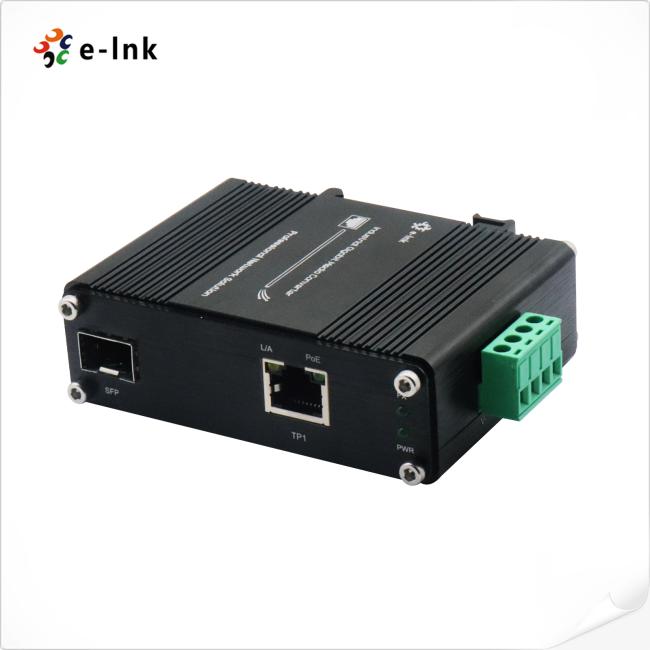

Model: LNK-IMC3012P-SFP
![]()
Overview
LNK-IMC3012P-SFP is a DIN rail type media converter that supports external SFP Modules and meets EN55022 standard. The Ethernet port support high power PoE (Power Sourcing Equipment) which complies with IEEE802.3at standard. It is a hardened grade product whose operating temperature range is -40°C to +75°C. LNK-IMC3012P-SFP supports 10/100/1000Base-T with 30W PoE+ and 100/1000Base-X SFP Port. The Ethernet port supports both half-duplex and full-duplex mode. Users can use different type of SFP modules (single-mode/multi-mode fiber, 1/2 core) as needed.
Technical Indexes
Ethernet | |
|---|---|
Standards: | IEEE802.3 10Base-T Ethernet |
IEEE802.3u 100Base-TX/FX Fast Ethernet | |
IEEE802.3ab 1000Base-T Gigabit Ethernet | |
IEEE802.3z 1000Base-X-SX/LX Gigabit Ethernet | |
IEEE802.3x Flow Control | |
IEEE802.3af Power over Ethernet | |
IEEE802.3at Power over Ethernet | |
IEEE802.3az (EEE) | |
Processing Type: | Store-and-Forward |
Forward Filter Rate: | 14,880pps (10Mbps) |
148,800pps (100Mbps) | |
1,488,000pps (1000Mbps) | |
Packet Buffer Memory: | 1 Mbit |
Max Packet Length: | 9K Bytes |
Address Table Size | 2048K MAC Addresses |
Interface | |
Connector: | 1x RJ45 |
Optical Port: | 1 x SFP 1000Base-X or 100Base-FX (auto detection) |
Electrical and Mechanical | |
Input Power: | 12~48VDC, 2-pin terminal block |
Output Power | 48VDC |
Power Consumption: | 36W Max. |
LED Indicators: | |
PWR: | Power Status |
L/A: | Data LINK Status |
POE: | PoE Status |
100M/1000M: | Fiber LINK Status |
Dimensions (WxDxH): | 95 x 70 x 30 mm |
Weight: | 0.25Kg |
Casing: | Aluminum Case |
Mounting Options: | DIN-Rail / Wall-mount |
Environmental | |
Operating Temperature: | -40°C to 75°C (-40°F to 167°F) |
Storage Temperature: | -40°C to 85°C (-40°F to 185°F) |
Relative Humidity: | 5% to 95% non-condensing |
MTBF | > 200,000 hrs |
Regulatory Approvals | |
ISO9001, CE, FCC, RoHS | |
EMI: EN55022:2010+AC: 2011, Class A EN 61000-3-2: 2006+A1: 2009+A2: 2009 EN 61000-3-3: 2013 EN55024: 2010 | |
EMS: IEC 61000-4-2: 2008 (ESD) IEC 61000-4-3: 2010 (RS) IEC 61000-4-4: 2012 (EFT) IEC 61000-4-5: 2014 (Surge) IEC 61000-4-6: 2013 (CS) IEC 61000-4-8: 2009 (PFMF) | |
Order Information
| Model | Description |
| LNK-IMC3012P-SFP | Hardened 10/1001000BASE-TX to 100/1000BASE-X SFP Ethernet Media Converter with PoE+ |
| SFP Options | ► SFP option. Please select your SFP on our SFP Options Page (Industrial SFP). |
| ► SFP module is to be purchased separately. | |
| Mounting Options | ► Default DIN-Rail Bracket installed; Wall Mount Bracket is included. |
| Power Options | ► 75W/1.6A 48VDC Power Supply. Open Wire for Terminal Block |
| ► Power Supply is to be purchased separately. |
