Fiber Transceiver 8Ch 3G-SDI Video 10G Ethernet Over Fiber Extender With Loop Out
Fiber Transceiver 8Ch 3G-SDI Video 10G Ethernet Over Fiber Extender With Loop Out
8 Channels 3G-SDI Converter Advantages
► Compatible with HD-SDI, SD-SDI, DVB-AST
► Bandwidth range from 19.4Mb/s to 2.97Gb/s
► SMPTE 424M (2.97Gb/s) clock recovery
► Built-in CWDM system, SFP modules for each path
Technical Indexes
|
Fiber interface |
Simplex LC |
|
Video interface |
BNC |
|
Video Bits Rate |
Max 3.2Gb/s |
|
Video SDI standard |
270Mbps (SD-SDI), 1.485Gbps/M(HD-SDI) |
|
SMPTE425M3Gb/s Mapping(3G-SDI) |
|
|
SMPTE424M 3Gb/s serial interface(3G-SDI) |
|
|
Standards |
IEEE 802.3u 100BASE-TX IEEE 802.3ab 1000BASE-T IEEE 802.3bz 2.5G/5GBASE-T IEEE 802.3an 10GBASE-T IEEE 802.3ae 10Gbps Ethernet IEEE 802.3x full-duplex flow control |
|
Interface |
1 x 10G/5G/2.5G/1G/100BASE-T RJ45 |
|
Working mode |
Auto-negotiation by default |
|
Dimensions (LxWxH) |
483 x 270 x 45mm (19inch 1U) |
|
Working Temperature |
-20℃～+70℃ |
|
Working Humidity |
0~95% |
|
MTBF |
≥100000 hours |
Overview

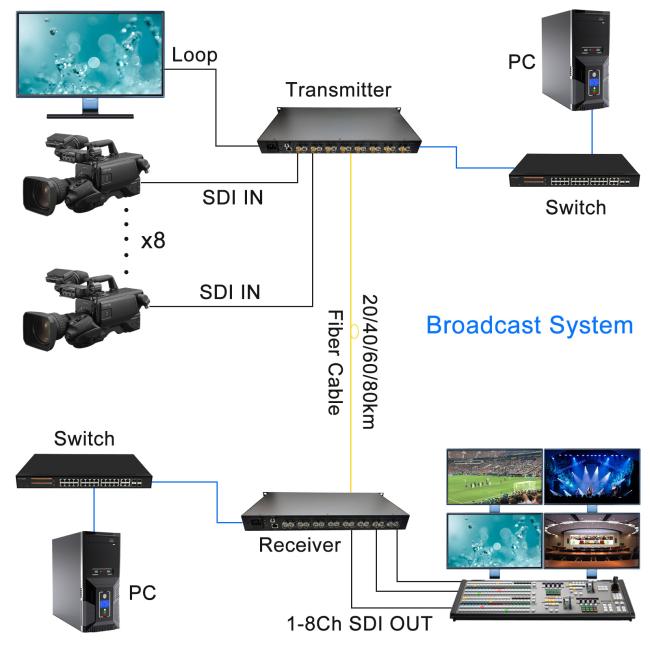

E-link LNK-3G8V10GE 3G-SDI & Ethernet fiber extender provides transmission of one 3G-SDI channel with 10G Ethernet IP channels over single mode optical cables. This SDI and IP to optical fiber converter enables high optical performance and brilliant HD video processing in real time. IP interfaces can dramatically increase scalability and compatibility with all modern high-end networking systems.
Ordering Information
|
Model |
Description |
|
LNK-3G8V10GE |
8Ch 3G-SDI Fiber Converter with 10G Ethernet and loop out, SMF, LC Fiber Connector 20KM, including Transmitter and Receiver, used by pairs |
