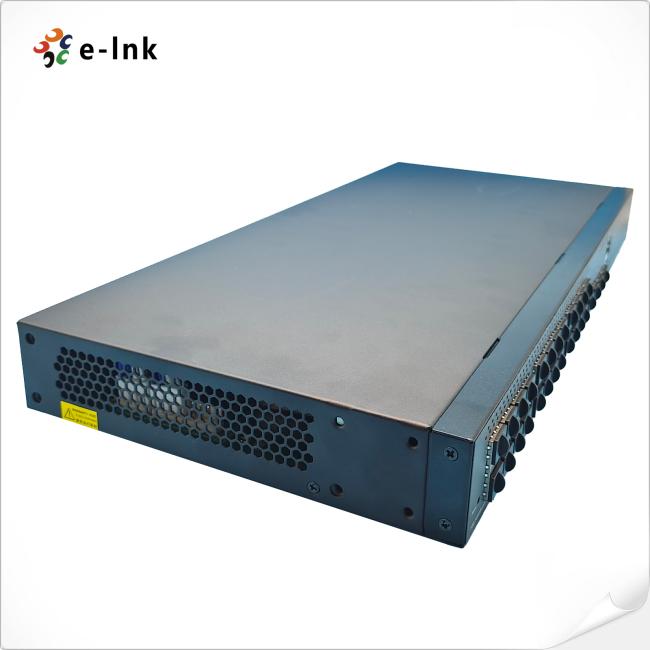

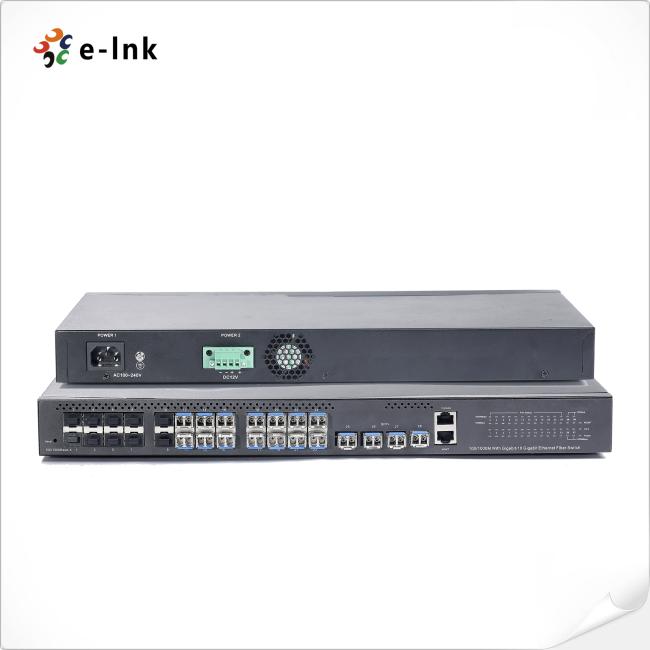

L3 Managed Fiber Optic Switch RSTP 24 Port 1000Base-X 1490nm AC230V
Fiber Optic Switch L3 Managed 24-Port 1000Base-X + 4-Port 10G SFP+ Fiber Switch
Fiber Optic Switch Advantages
-
Support 24 1000M SFP access and 4 10G SFP+ uplink port (1000M/10G)
-
Support CLI, VLAN, STP/RSTP, Trunk port aggregation, IGMP, port Mirroring, port isolation, broadcast control, etc
-
Support 16K MAC learning, 12Mbit storage and forward cache space,128G back plane bandwidth, 9KByte Large frame forwarding.
-
Standard 1U rack, internal double cooling fan, better for heat dissipation, work stable
Technical Indexes
|
Parameter |
MAC |
Static mac MAC Black Hole MAC address aging time |
|
Spanning tree protocol |
IEEE 802.1D Spanning Tree Protocol (STP) IEEE 802.1w Rapid Spanning Tree Protocol (RSTP) IEEE 802.1s Multiple Spanning Tree Protocol instances (MSTP) |
|
|
Port |
Bi-directional bandwidth control Static link aggregation and LACP (Link Aggregation Control Protocol) Port mirroring and traffic mirroring |
|
|
Service features |
ACL |
Basic ACL and advanced ACL |
|
QoS |
Best-Effort Service Integrated Service Differentiated Service |
|
|
Reliability |
Loop protection |
Loopback-detection |
|
Link protection |
RSTP/MSTP (recover-time <1s) LACP (recover-time <10ms) |
|
|
Maintenance |
Network maintenance |
Telnet Ping and Traceroute |
|
Device management |
Command-line interface(CLI), Console NTP (Network Time Protocol) Ping and Trace route |
Overview
LNK-FS2404X supports SFP/SFP+ modules hot plug, and supports to work with other fiber switches, fiber converters and other devices with fiber ports.It supports management,Support super network high definition video frequency transmission ability ,Streamlined network structure, support dual power supply hot backup, applies to security system, electric system, traffic system requirements.
Ordering Information
|
Model |
Description |
|
LNK-FS2404X |
L3 Managed 24-Port 1000Base-X SFP + 4-Port 10G SFP+ Fiber Switch, CLI Management, Single Power Supply |
