Industrial Hardened Gigabit PoE Injector Aluminum 95W Waterproof
Power Over Ethernet Injector 95W Industrial Hardened Gigabit PoE Injector
PoE Injector Advantages
► 1 RJ45 Ethernet Data Input Port + 1 RJ45 Power over Ethernet Output Port (Data + Power)
► Support 95W LTPoE++ Power Sourcing Equipment
► Compatible IEEE802.3bt PoE++

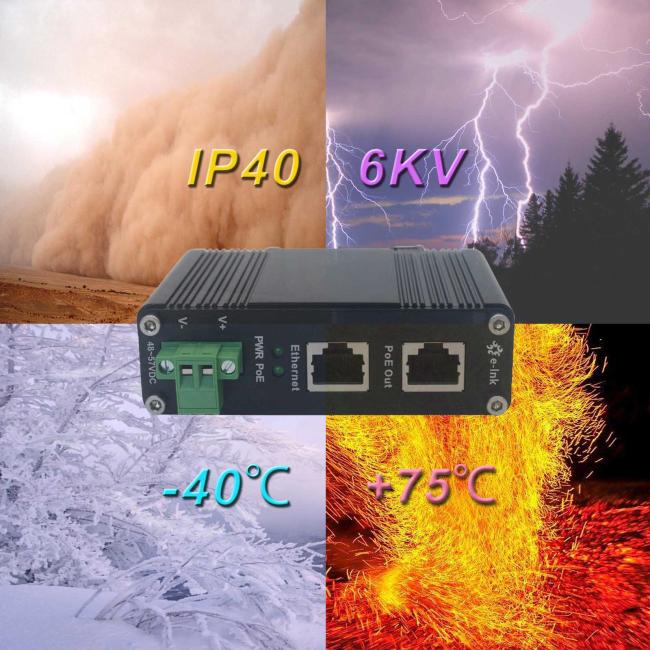

► Environmentally Hardened -40°C to 80°C (-40°F to 176°F) operating temperature
Technical Indexes
|
Standards: |
IEEE802.3i 10 BASE-T, IEEE802.3u 100 BASE-TX, IEEE 802.3ab Gigabit Ethernet |
|
IEEE802.3 x Flow Control |
|
|
Processing Type: |
Forward |
|
Half-duplex, Full-duplex |
|
|
Forward Filter Rate: |
1,488,000pps (1000Mbps) |
|
Cabling: |
1000Base-T: Cat5 or above |
|
Connector: |
2x RJ45 |
|
Electrical and Mechanical |
|
|
Input Power: |
48~57VDC (Terminal Block) |
|
Power Consumption: |
100W Max. |
|
Max. Power per Port: |
95W Max per port (Alternative B Mode) |
|

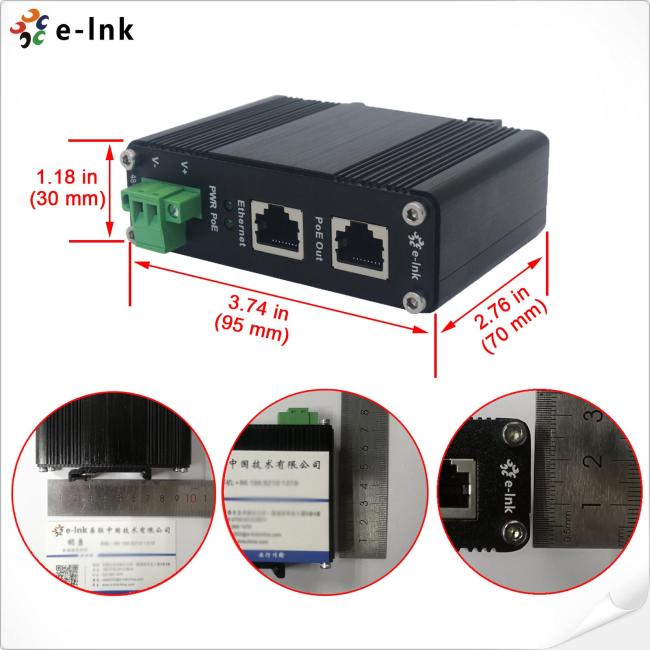

Dimensions (WxDxH): |
95 x 70 x 30 mm |
|
Weight: |
0.25Kg |
|
Mounting Options: |
DIN-Rail / Wall-mount |
Overview
The LNK-INJ-48-95W product is an Industrial hardened Gigabit single-port PoE+ IEEE 802.3bt / LTPoE++ 95W 10/100/1000Base-TX PoE Injector. It allows you to connect the PoE device such as camera and access point with a non PoE LAN switch within the distance of 100m. Both the Ethernet port (to switch) and the PoE Out port (to PoE device) support 10/100/1000Base-T and are compliant with IEEE 802.3ab. It provides 95W PoE output.
Ordering Information
|
Model |
Description |
|
LNK-INJ-48-95W |
Hardened Gigabit 1-port Ethernet Input + 1-port 95W PoE++ Output Injector |
|
Mounting Options |
► Default DIN-Rail Bracket installed; Wall Mount Bracket is included. |
|
Power Options |
► 120W/2.5A 48VDC Power Supply. Open Wire for Terminal Block |
| ► Power Supply is to be purchased separately |
