China 24W 1A 24VDC Industrial Optical Switch DIN Rail Type Hardened Grade for sale

24W 1A 24VDC Industrial Optical Switch DIN Rail Type Hardened Grade

Price Negotiable

Price: Negotiation

MOQ: 1 pcs

Delivery Time: 7 Working days

Brand: E-link

Product Description

Ethernet Switch 2-Port 10/1001000BASE-TX To 2x100/1000BASE-X SFP Network Switch

Fiber Port Switch Advantages

► 2-port 10/100/1000BASE-T RJ45 with auto MDI / MDI-X function

► 2 SFP Port, 100Base-FX or 1000Base-X dual mode (auto detection)

► Supports Link Fault Pass Through

► Supports Full/Half-duplex, Auto-negotiation

► 9K Bytes Jumbo Frame

Technical indexes

Standards:	IEEE802.3 10Base-T
	IEEE802.3u 100Base-TX/FX
	IEEE802.3ab 1000Base-T
	IEEE802.3z 1000Base-X
Processing Type:	Store-and-Forward
Forward Filter Rate:	14,880pps (10Mbps)
	148,800pps (100Mbps)
	1,488,000pps (1000Mbps)
Connector:	2 x RJ45
Optical Port:	2 x SFP 1000Base-X or 100Base-FX (auto detection)
LED Indicators:
PWR:	Power Status
RJ45:	LINK/Activity
SFP:	LINK

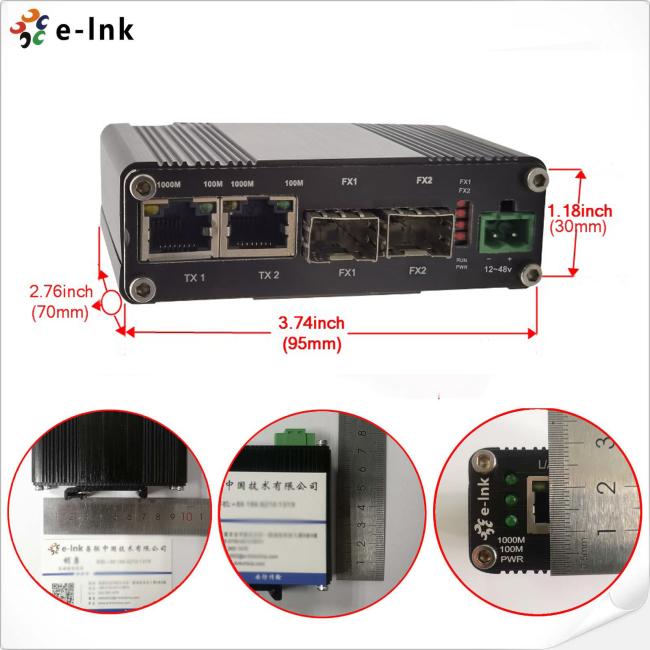

Dimensions (WxDxH):	95 x 70 x 30 mm

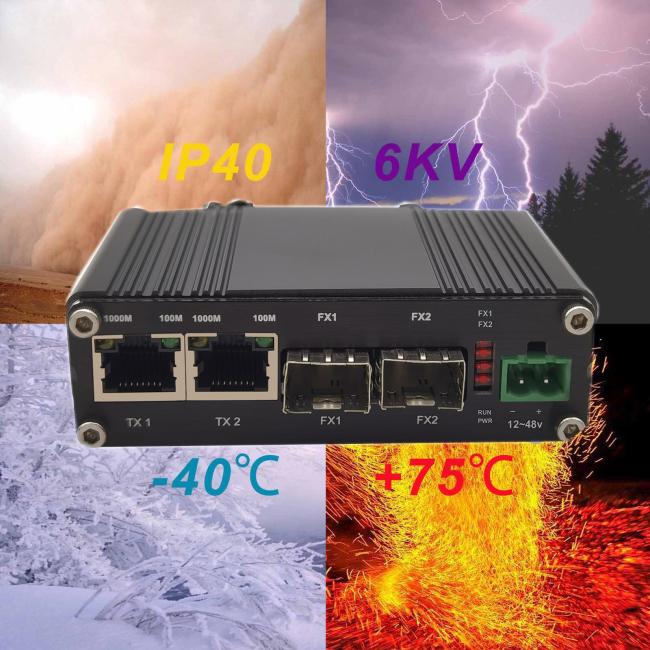

Operating Temperature:	-40°C to 75°C (-40°F to 167°F)

Overview

LNK-IMC202G-SFP Series is a DIN rail type Ethernet Switch that supports external SFP Modules and meets EN55022 standard. It is a hardened grade product whose operating temperature range is -40°C to +75°C. LNK-IMC202G-SFP supports 10/100/1000Base-T and 100/1000Base-X SFP Port. The Ethernet port supports both half-duplex and full-duplex mode. Users can use different type of SFP modules (single-mode/multi-mode fiber, 1/2 core) as needed.

Ordering Information

Model	Description
LNK-IMC202G-SFP	Hardened 2-Port 10/1001000BASE-TX to 2x100/1000BASE-X SFP Ethernet Switch
SFP Options	SFP option. Please select your SFP on our SFP Options Page (Industrial SFP).
SFP Options	SFP module is to be purchased separately.
Mounting Options	► Default DIN-Rail Bracket installed; Wall Mount Bracket is included.
Power Options	► 24W/1A 24VDC Power Supply. Open Wire for Terminal Block
Power Options	► Power Supply is to be purchased separately.
