Mini 24G SDI Fiber Optic Converter With 2 Channel 12G SDI Video 2x12G SFP 1xLC Fiber
Mini 24G-SDI Fiber Converter With 2-Channel 12G-SDI Video 2x12G SFP 1xLC Fiber
24G-SDI Fiber Optical Converter Application
► Video production
► Broadcasting
► Camcorder
► Studio-to-studio
► Live events
► Medical imaging displays
► Mobile video
► 24G/12G/6G/3G/HD/SD-SDI CCTV
Fiber Video Extender Technical Indexes
|
Formats |
Supports UHD-2 or 24G UH D-SDI, SMPTE ST-2083(24G) ST-2082-1(12G), ST-2081-1(6G), ST-424(3G), ST-292(HD) And ST-259(SD) |
|
Compatible |
Compatible With D VB-AS I and AES10 (MADI) |
|
Input |
2 x 12G-SDI on BNC |
|
Fiber |
2 x 12G-SDI 1*LC fiber |
|
Output |
2x 12G-SDI on BNC |
|
Supported Resolution |
HDTV 2160p/4k@120,8k@60, 1080P, 1080I, 720P |
|
Resolution range |
2160p/4k@120,8k@60Hz |
|
Input cable specification |
≤70m@12G SDI Belden 1694A |
|
Output cable specification |
≤70m@12G SDI Belden 1694A |
|
Data type |
Backward Tally (optional) |
|
Data type |
Backward RS485 (optional) |
Overview

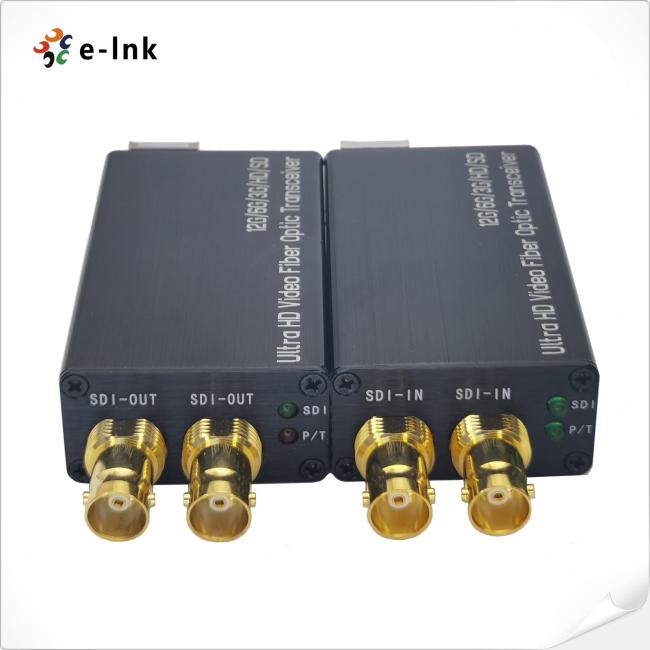

LNK-M24G-2F1 Series Mini-type 24G-SDI Fiber Converter supports 2-channel 12G Video (audio embedded) transmitted via fiber optical cable.E-link 24G Video over Fiber Converters includes one transmitter and one receiver for HDTV 2160p/4k@120,8k@60, 1080P,1080I, 720P. The 24G-SDI Fiber Converter supports transmission of up to 12 G bps of digital video within television broadcasting facilities and between professional video equipment.
Ordering Information
|
Model |
Description |
|
LNK-M24G-2F1-20 |

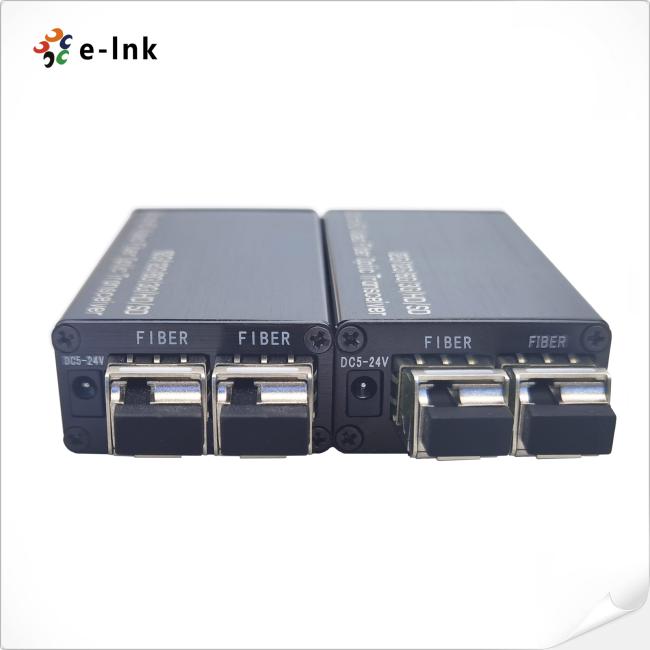

Mini 24G-SDI to Fiber Converter: 2Ch 12G-SDI Video, 2*12G SFP(1*LC) Fiber Connector, Single Mode, 20KM, including Transmitter and Receiver, used by pairs |
