Industrial Gigabit Ethernet Switch 8 Port 10 / 100 / 1000 Base-T 2 Port 1000BASE-X
Industrial 8-Port 10/100/1000Base-T + 2-Port 1000BASE-X Gigabit Ethernet Switch
Gigabit Ethernet Switch Advantages
► SFP, SC, FC, ST Optional

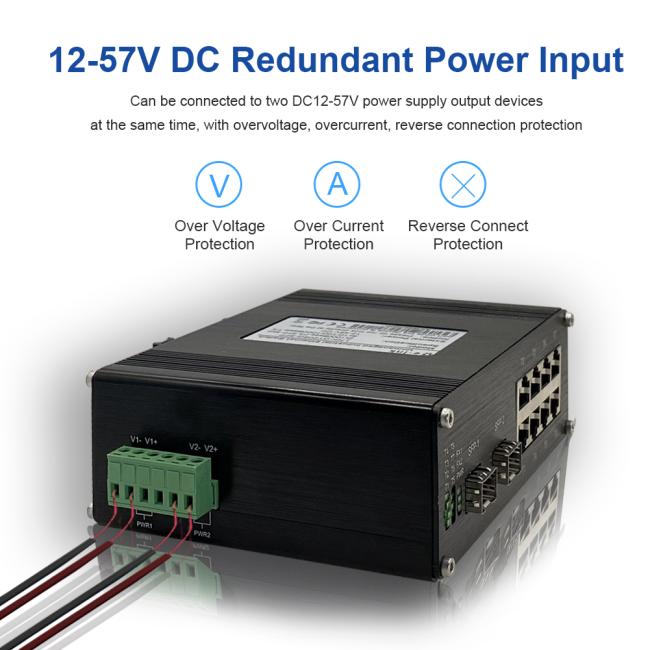

► Redundant Power Inputs

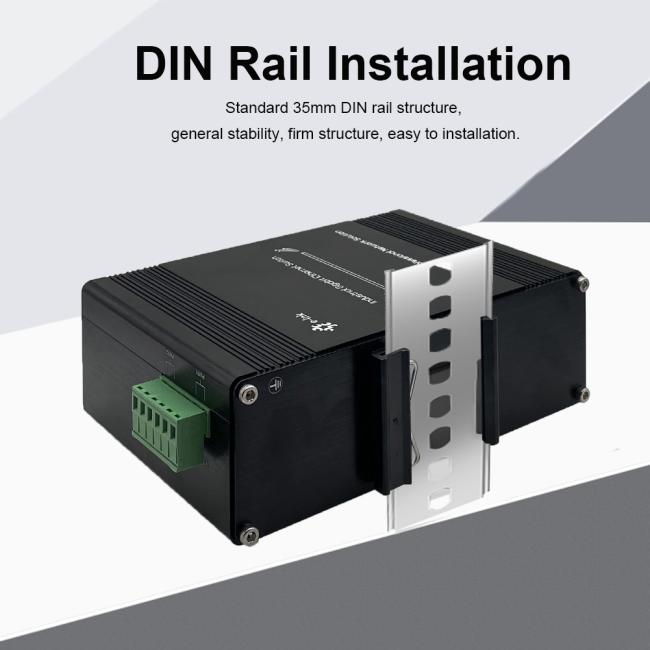

► Supports Wall-mount and DIN-Rail installation
► -40°C to 80°C (-40°F to 176°F) operating temperature
Technical Indexes
|
Standards: |
IEEE802.3 10BASE-T |
|
IEEE802.3u 100BASE-TX/FX |
|
|
IEEE802.3x Flow Control |
|
|
IEEE 802.3az Energy Efficient Ethernet (EEE) |
|
|
IEEE802.3ab 1000BASE-T |
|
|
IEEE802.3z 1000BASE-X |
|
|
Max Packet Length: |
9K Bytes Jumbo Frame |
|
Address Table Size: |
4K MAC Addresses |
|
Connector: |
8 x RJ45 |
|
Optical Port: |
2 x 1000Base-FX (SFP, SC, FC, ST Optional) |
|
Input Power: |
12~58VDC, Redundant Power (6-pin Terminal Block) |
|
Power Consumption: |
5W Max. |
|
Power Input Overload: |
Automatic Resettable |
|
Reverse Polarity: |
Present |
|
LED Indicators: |
|
|
Power: |
Power1, Power2 Status |
|
Ethernet (Per Port): |
Link/Activity |
|
Fiber: |
FX1, FX2 |
|
Dimensions (WxDxH): |
150 x 110 x 50 mm |
Overview
LNK-IMC208G Series is 8 ports 10/100/1000Base-TX + 2 port 1000Base-FX Hardened Ethernet switch. The Switch has 8 TP ports and 2 fiber ports. TP (RJ45) supports 10/100/1000Base-T(X), Full/Half duplex mode, and auto MDI/MDI-X connection; 1000Base-X supports 1 or 2 core Single-mode or Multi-mode fiber. With its reliable design and ease of use, the product is a great choice for integrating networks consisting of network devices such as IP cameras and wireless access points between remote locations.
Ordering Information
|
Model |
Description |
|
LNK-IMC208G |
Industrial Ethernet Switch: 8-Port 10/100/1000Base-TX + 2-port 1000BASE-X Fiber, Multimode, Dual Fiber, SC, 550m |
|
LNK-IMC208G-20 |
Industrial Ethernet Switch: 8-Port 10/100/1000Base-TX + 2-port 1000BASE-X Fiber, Single Mode, Dual Fiber, SC, 20KM |
|
LNK-IMC208GS-20 |
Industrial Ethernet Switch: 8-Port 10/100/1000Base-TX + 2-port 1000BASE-X Fiber, Single Mode, Single Fiber, SC, 20KM |
|
LNK-IMC208GF-20 |
Industrial Ethernet Switch: 8-Port 10/100/1000Base-TX + 2-port 1000BASE-X Fiber, Single Mode, Single Fiber, FC, 20KM |
|
LNK-IMC208G-SFP |
Industrial 8-port 10/100/1000BASE-T + 2-port 1000BASE SFP Ethernet Switch |
|
SFP Options |
► SFP option. Please select your SFP on our SFP Options Page |
|
► SFP module is to be purchased separately. |
|
|
Mounting Options |
► Default DIN-Rail Bracket installed; Wall Mount Bracket is included. |
|
Power Options |
24W/1A 24VDC DIN-Rail Power Supply. Open Wire for Terminal Block. |
|
► Power Supply is to be purchased separately. |
