ASTM D256 ISO180 Automatic Notcher Izod Charpy Impact Specimen Notch Sample Making Equipment HT-1600-AU
Electronic Notching Machine Price, Notcher Cutting Machine for Izod and Charpy Impact Test
►Application
The electronic notching machine is used for the sample preparation of the non-metallic material when it is did the impact toughness testing by izod impact tester or the charpy impact tester, can be used for scientific research institutions, universities and colleges, non-metallic materials production plants and other units of the laboratory to make notch samples.
►Basic Standard
ISO180 "Plastics - Determination of Izod Impact Strength of Rigid Materials"
GB/T1843 "Izod Impact Test Method for Rigid Plastics"
JB/T8761 "Plastic Izod Impact Testing Machine"
ASTM D256 "Test method for determining the impact strength of plastic IZOD pendulum"
ISO179 "Plastics - Determination of Charpy Impact Strength of Rigid Materials"
GB/T1043 "Rigid Plastic Charpy Impact Test Method"
JB/T8762 "Plastic Charpy Impact Testing Machine"
►Specifications
| Workbench stroke | ＞160mm |
| Feed speed | 30mm/min |
| Sample type | Ⅰmodel, Ⅱ model, Ⅲ model |
| Notch type | A Model, B Model (optional), C Model (optional) |
| Cutting tool parameters of notching machine: |
A Model 45°±1° r=0.25mm±0.05mm B Model 45°±1° r=1.0mm±0.05mm C Model 45°±1° r=0.1mm±0.02mm |

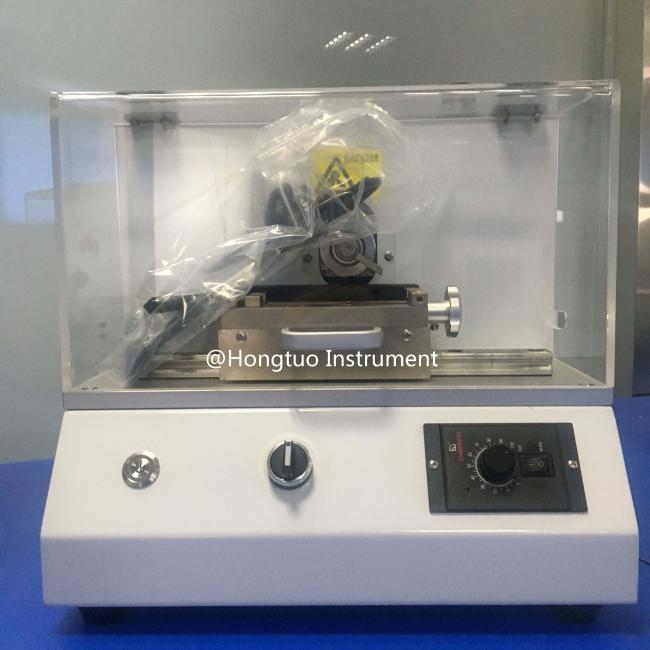

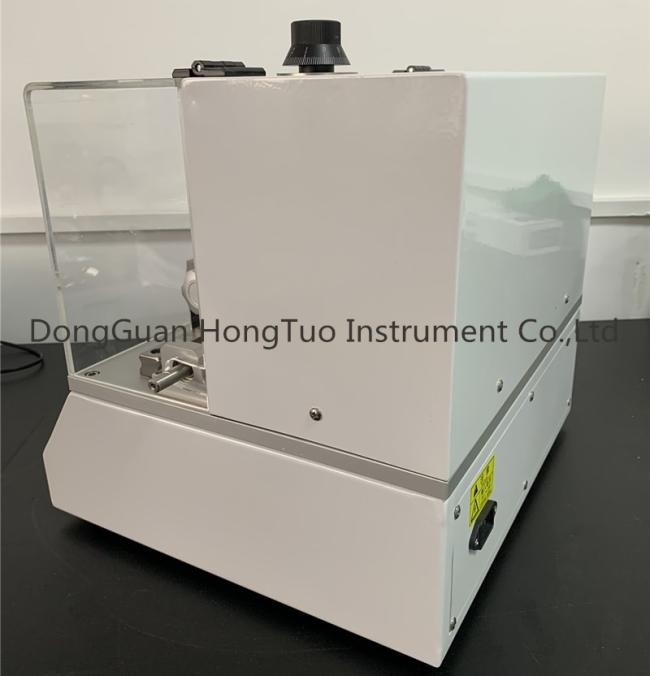

►Detail Images
