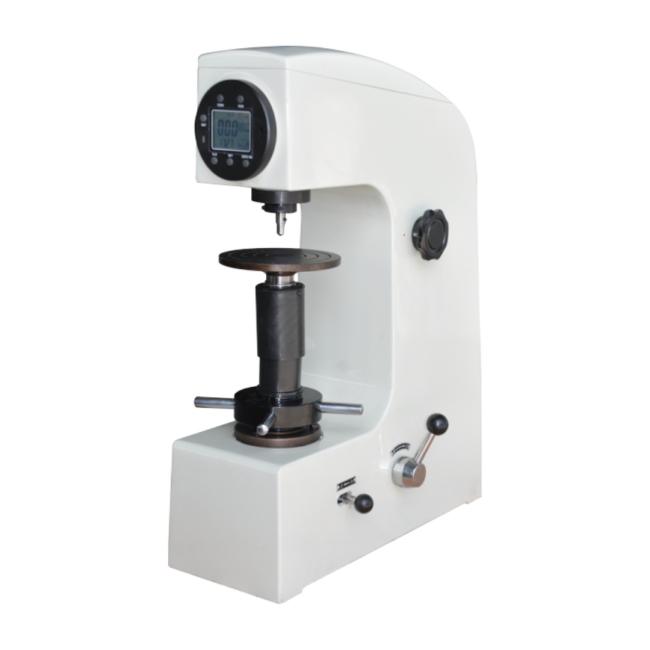

Superficial Rockwell Hardness Tester Digital Display Surface Rockwell Hardness Tester HRS-45T
Superficial Rockwell Hardness Tester Digital Display Surface Rockwell Hardness Tester HRS-45T
Application range:
Model HRS-45T is used to determine the surface Rockwell hardness of ferrous metals, alloy steels, hard alloys and metals after nitriding, cyanidation, carburizing, electroplating and other surface treatments.
Main features:
Digital display, direct reading of digital display, no artificial reading error, resolution up to 0.1HR, and can convert hardness value, mechanical manual testing process, no electrical control, precision oil pressure buffer, adjustable loading speed. Accuracy conforms to GB/T230.2, ISO6508-2 and American ASTM18 standards.
Main technical specifications:
| Model | HRS-45T |
| Measuring range | 70-94HRN, 42-86HR30N, 20-77HR45N, 67-93HR15T, 29-82HR30T, 10-72HR45T |
| Maximum allowable height of the test piece | 170 mm |
| Distance from the center of the indenter to the machine wall | 135mm |
| Hardness resolution | 0.1HR |
| Dimensions | 466 x 238 x 630 mm |
| Weight | about 65kg |
Standard configuration:
Large platform: 1 set.
Small platform: 1 set.
V-type test bench: 1 set.
116 steel ball indenter: 1 set.
Diamond indenter: 1 set.
Model HRS-150T : Standard Rockwell hardness block: 5 pcs.
Model HRS-45T : Standard surface Rockwell hardness block: 4 pcs.
