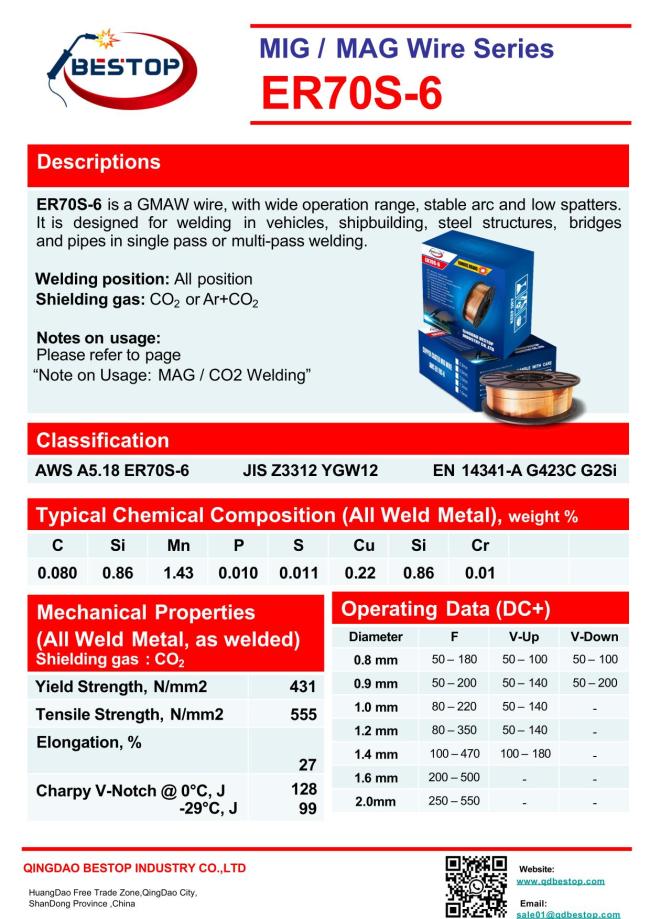

15kg ER70S-6 Solid wire/welding wire er70s-6/er70s-6 welding wire/electric arc welding/electrode metal/robotic welding
Welding Wire ER70S-6 is in great demand for semi-automatic machines when working with low-alloy and carbon steels, which comprise 90% of the rolled metal products produced. Moreover, copper-plated welding wire accounts for 98% of all sales related to corrosion protection. This is because this wire is very versatile and has a wide range of applications. In addition, it is famous for its excellent welding joint qualities.
Copper-clad wire ER70S-6 is used:
- for electric welding of structural and shipbuilding steel;
- electric arc welding of machine parts in an atmosphere of carbon dioxide (CO2);
- for working with thin sheet metal;
- for end welding, fillet welding and lap welding;
- in order to protect against corrosion.
The availability of ER70S-6 welding wire allows the use of this product to be beneficial from a financial point of view, simplifying the welding process due to in-line winding.
| C | Mn | Si | S | P | Cu |
| 0.06-0.15 | 1.40-1.85 | 0.80-1.15 | ≤0.025 | ≤0.025 | ≤0.50 |
| Tensile Strength(MPa) | Yield Strength (MPa) | Relative extension(%) | Impact Test Tem(℃) | Shielding gas | |
| ≥500 | ≥420 | ≥22 | -27(-29) | CO2 |
|
Benefits of use
Compared to other types of wire, copper-plated wire provides a more stable arc in the welding mode from jet to droplet transfer of electrode metal into the weld pool. At the same time, it is possible to use welding equipment of any complexity class. Since the wire coating does not have a destructive effect on the channel of the copper tip, the consumption of tips is significantly reduced. In robotic welding, the product promotes good arc re-ignition.
Welding wire ER70S-6 will allow you to:
- it is economically widely and profitable to use the product;
- Use in the area of jet transfer arc and short arc;
- simplify and speed up the welding process due to in-line winding;
- evaluate the high quality of copper plating, even and stable chemical composition, not inferior to European analogues;
- protect from corrosion (each coil and frame is sealed in shrink film with the addition of drying agent).
Available diameters: 0.6 mm , 0.8 mm ,0.9 mm , 1.0 mm , 1.2 mm , 1.6 mm .
