Low Intensity Faa L810 Solar Aviation Obstruction Light Red Dusk-To-Dawn Operation

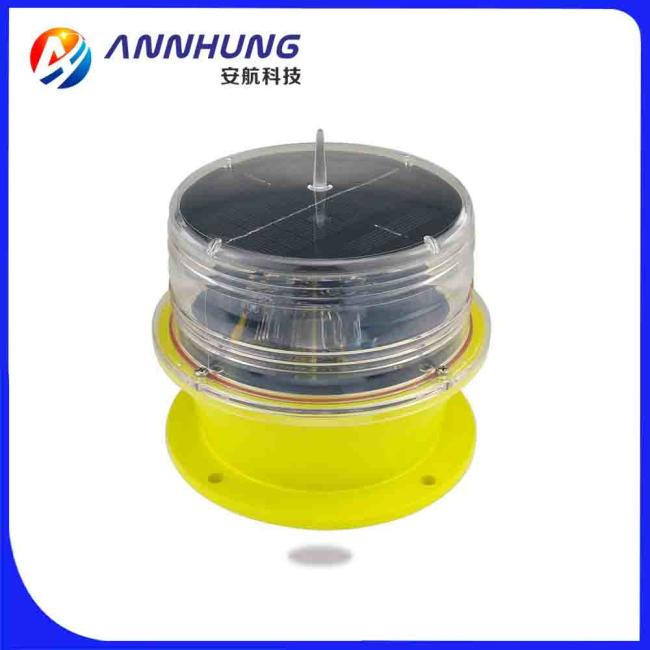

AH-LS-L LED Low-intensity L810 Solar Aviation Obstruction Light
Application
Used alone on the top of obstacle which height is less than 45meter
This LED Low-intensity Solar Powered Aviation Obstruction light is adopting insert high efficient solar panels integrated design, cooperate with solar dedicated lithium ion battery as power supply. Built-in photocell ensure LED only working at night and closed in the daytime automatically.
Compliance
ICAO Annex 14 Volume 1, Seventh edition, 2016, table 6.3 Low Intensity Type A / B / E Obstruction Light
FAA L-810
Physical
With bird needle to prevent bird drop
Built-in mono crystalline silicon solar panel, conversion efficiency is better than poly crystalline silicon
System design
ON/OFF button make local control easy
Optional
Infrared LED for pilot using NVG(Night Vision Goggles)
GPS sync flashing
| Description | Parameter |
| Light Source | LED |
| Flash Characteristics |
20fpm |
| Operation Mode | Dusk-to-dawn Automatically as standard. |
| LED Life Experience(hours) | >100,000 |
|
Battery type |
Lithium ion battery |
|
Nominal Voltage (V) |
3.7 |
| Mounting |
140×140×M6 |
| Dimension(mm) |
162×162×160 |
| Weight(kg) | 1 |
| Ambient Temperature(℃) | -55~70 |
| Humidity |
0~100% |
| Wind Speed |
80m/s |
| Waterproof | IP68 |
| Options Available |
GPS sync flashing |
