ICAO Annex 14th Standard IP66 Waterproof 2500cd High Intensity LED Heliport Beacon for Helipad Lighting
Price:
8888usd
MOQ:
2
Delivery Time:
Negotiable
Brand:
ANNHUNG
Product Description
AH-HP-B2 LED Heliport Beacon
ICAO Annex 14th Standard compliant high-intensity LED heliport beacon with 2500cd output, 360° beam angle, and Morse Code H flash pattern.
Product Overview
A heliport beacon should be provided at a heliport where long-range visual guidance is considered necessary and is not provided by other visual means; or identification of the heliport is difficult due to surrounding lights. The heliport beacon shall be located on or adjacent to the heliport preferably at an elevated position and so that it does not dazzle a pilot at short range.
Compliance Standards
- ICAO Annex 14 Volume ǁ Heliports 5.3.2
- FAA AC 150/5390-2B Heliport Design Guide
- CAP 437
AH-HP-B2 flashes white color 4 times/0.8second and stops for 1.2s, then starts new cycle for 2 seconds (0.8s+1.2s).
Product Features
Electrical Specifications
- LED light source for power efficiency and minimal maintenance
- 95% less power consumption than equivalent incandescent lights
- Power supply options: DC (12V, 48VDC) or AC (110-240VAC)
Physical Construction
- Clear polycarbonate lens for converging light with corrosion resistance and UV protection
- UV-protected powder coated bright yellow color base for enhanced visibility
- Die-casting aluminum base material for superior corrosion resistance, shock and vibration protection
Optional Accessories
- Controller for power supply management and light control
- VHF pilot to ground remote control system
Technical Specifications
| Light Source | LED (IR optional) | Operating Voltage | DC (12V, 48V) or AC (110-240VAC) |
|---|---|---|---|
| Available Colors | White | Power Consumption | 12W |
| Intensity | ≥2500cd | Circuit Protection | Integrated |
| Horizontal Output | 360° | Body Material | UV protected Polycarbonate |
| Vertical Divergence | 10° | Base Material | Powder-coated Die-casting aluminum |
| Flash Characteristics | Morse code "H" | Mounting | 200×200×θ12 |
| Operation Mode | 24 hours operation | Dimensions | 250×250×250 mm |
| LED Life Expectancy | >100,000 hours | Weight | 2.5 kg |
| Product Life Expectancy | ≥10 years | Ambient Temperature | -35°C to 80°C |
| Humidity | 10-90% | Wind Speed Rating | 80 m/s |
| Waterproof Rating | IP66 | ICAO Compliance | ICAO Annex 14 Volume ǁ Heliports 5.3.2 |

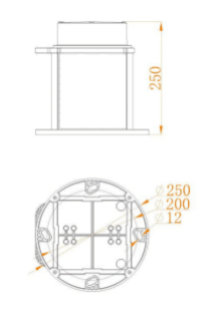

Product Dimensions

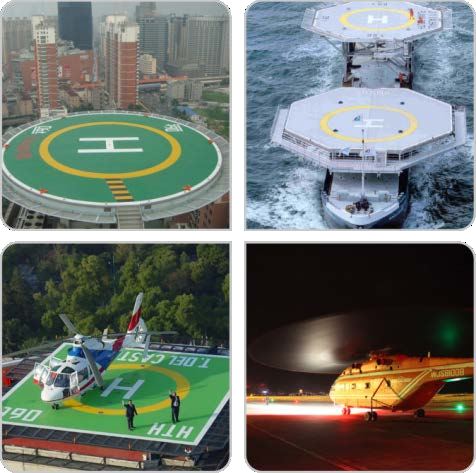

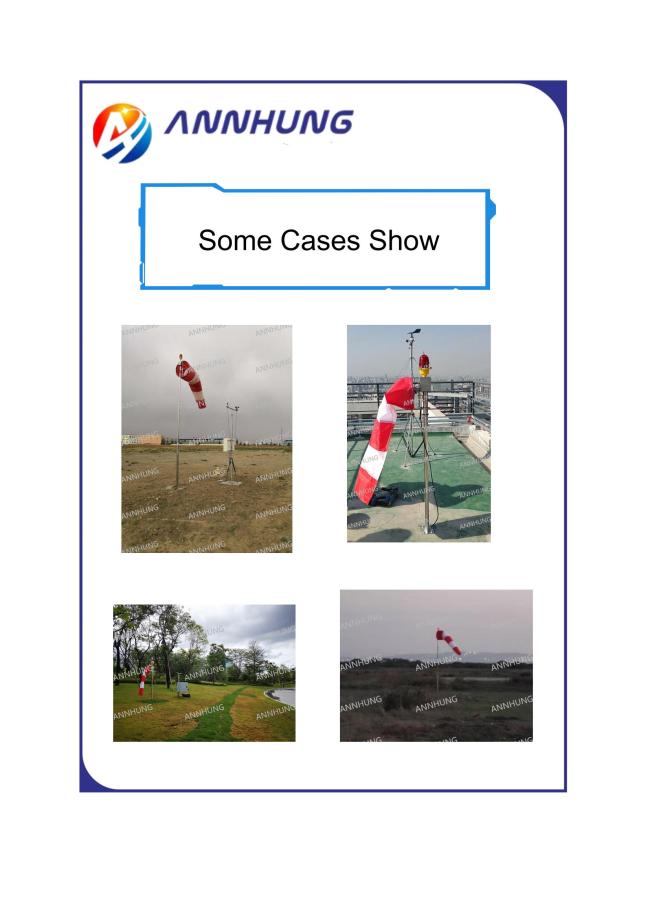

Installation Examples
