Helicopter Landing Lights / Airport Runway Lights Directional Arrow Double Duty Light
Helicopter Landing Lights / Airport Runway Lights Directional Arrow Double Duty Light
Characteristics
The Heliport Directional Arrow Floodlight does double duty. Perimeter Light on top illuminates the directional arrow to emphasize the green lights for an accurate approach and is one of the string of green marker lights in the arrow. Floodlights on middle is used for illumination.
Datasheet: AH-HP-D Heliport Directional Arrow.pdf
After-sales service
1. 2 years full warranty, 5 years maintenance since the purchasing date.
2.Since the purchasing date, full warranty from 1st year to 2nd year, free maintenance cost and material cost.
3.Since the purchasing date, maintenance from 3rd year to 5th year, free maintenance charge.
Packaging & Delivery
Packaging: Paper carton 1-9 piece/box.
Delivery: In 2-30 days after payment.
Product Application
Used in helipad field or airport runway light.
Product Descripton
| Description | Parameter |
|---|---|
| Light intensity | ≥25cd( Perimeter Light on Top),≥1500Lm |
| Emitting color | Green color (Perimeter Light on Top),White color(Flood Light on middle) |
| Weight | 3.10kg |
| Standard | ICAO Annex 14 |
| Light source | LED |
| Service life of light source | 100,000 hours |
| Operating voltage | AC220V, 50/60 Hz |
| Power Consumption | 10W |

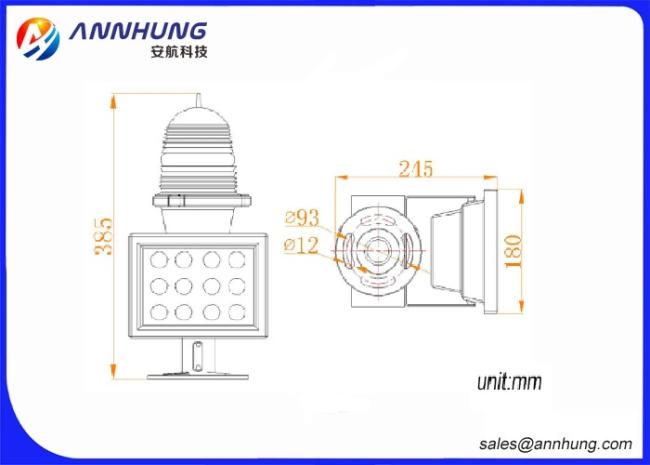

Dimension Drawing
Product Picture
