AH-HP/F PVC Red and White Helipad Landing Lights Wind Sock

Heliport Light

Helipad Lighting

compliant with ICAO,FAA,CAAC

Application

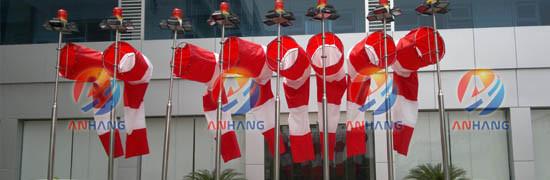

Wind cone is used in airport and helipad fields for indicating final approach and taking off wind direction

Product Description

1.Product Name:Heliport light

2.Mode: AH-HP/W

3.Standard: ICAO Annex 14 and FAA

4.Height of wind cone: 1.5meters,2.5meters,3.5meters,4meters,5meters,6meters,7meters,etc.
5.Supply voltage:AC220V,50/60 Hz(Option voltage,eg.AC120V,DC48V)
6.Three kind of wind sock:
- 1.2 meters length, big diameter is 300mm,small one is 150mm (Height of Wind Cone is less than 4 meters)
- 2.4 meters length, big diameter is 600mm,small one is 300mm.(Height of Wind Cone is between 4meters and 6meters)
- 3.6 meters length, big diameter is 900mm, small one is 450mm.(Height of Wind Cone is more than 6meters)

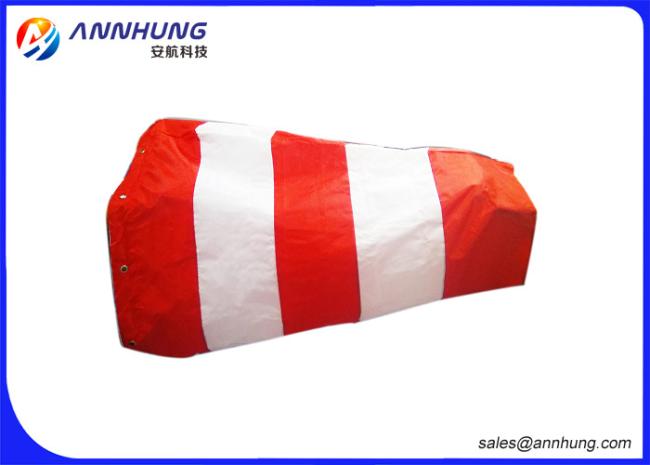

7.Color of wind sock: Red and white or orange and white or orange
8.Max wind load :260km/h.

Character

1.Wind sock is made of anticorrosion  and high temperature resistance PVC material.
2.-1Pc LED aviation obstruction light on top and 2Pcs 6W LED flood light for illumination. (Height of Wind Cone is less than 4 meters)
-1Pc LED aviation obstruction light on top and 4Pcs 6W LED flood light for illumination.(Height of Wind Cone is equal to or more than 4 meters)
3.Pole is made of light, strong corrosion resistance SUS 304 Stainless steel.

Company Information

Anhang Technology (HK) Company Limited is a high technology enterprise engaging in research, production, sales and after -sales services for a wide range of Aviation Obstruction Light,Aircraft Warning Light,Helipad Light, LED Marine Lanterns,LED Bulb and Aircraft Warning Sphere.We are a domestic market leader in the field of navigation lights and a supporter of green and safe emissions. Our products are widely used in Civil Airports, Helipads, Communication Towers, Factory,Power Plant Chimneys, Television Tower, Port, Bridges, and High-rise buildings, Buoyage in sea, etc.

All our products are designed and manufactured strictly according to ICAO (International Civil Aviation Organization), FAA (Federal Aviation Administration) and IALA(International Association of Lighthouse Authorities). We are proud to have served customers from all across the world.
