Expedited Airfield Solar Airport Lighting LED Vibration and UV Protection
Expedited Airfield Solar Airport Lighting LED Vibrations And UV Protection
Application
Taxiway lighting, Runway edge lighting – (ICAO Annex 14), Portable or expedited airfield lighting, Emergency operations, Helipads, Touchdown and Lift- off area ( TLOF) , Final Approach and Take- off area ( FATO) , Threshold lighting and obstruction lighting.
Advantage
1. International advanced solar panel reaching at least 10 years service life.
2. Comprehensive protection in voltage short, over-voltage, floating charge and temperature.
3. Built-in Solar Panel.
4. Strong anticorrosion , Rain and Snow, anti-knock protection and UV protection.
5. International-advanced cold LED with low power consumption, high brightness and service life of light source reaching 100000hours.
6. Dusk-to-dawn operation: Built-in photocell inside light can let light work at night and close during the day automatically.
7. Recyclable batteries with the lightest environmental.
Function
1.Optional Battery Charge port: 100~240VAC
2. Optional NVG-compatible infrared (IR) LEDs
3. Optional wireless ON/OFF control provides on-demand operation from up to 3km away. Antenna is inside light base.
4. Push button interface for local ON/OFF control. Toggle switch interface for steady-burning/flashing working mode.
After-sales service
1. 2 years full warranty, 5 years maintenance since the purchasing date.
2. Since the purchasing date, full warranty from 1st year to 2nd year, free maintenance cost and material cost.
3. Since the purchasing date, maintenance from 3rd year to 5th year, free maintenance charge.
Product Descripton
| Description | Parameter |
|---|---|
| Standard | ICAO Annex 14, Vol. 2 |
| Light source | LED |
| available color | Red, green, white, yellow/ white, yellow/ white, yellow/ white, red/ white( Customized) |
| Working mode | Steady-burning mode or Flash mode |
| Battery | Lithium ion battery, 3. 7V 10AH |
| LED life-span | ≥100,000h |
| Intensity | ≥32cd |
| working temperature | -40C ~ +60C |
| Protection standard | IP68 |
| Net Weight | 2.0kg |
| Material | Base:Die casting aluminum, housing: PC |
Packaging & Delivery
Packaging: Paper carton 1-9 piece/box.
Delivery: In 2-30 days after payment.

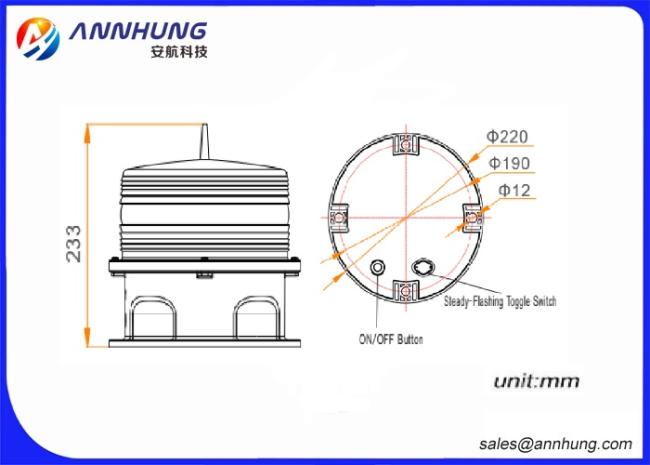

Dimension Drawing
Product Picture
