FATO Helicopter Landing Lights Direction 3500cd Waterproof TLOF Lighting 10 Watt
An approach lighting system should be provided at a heliport where it is desirable and practicable to indicate a preferred approach direction, and located in a straight line along the preferred direction of approach. Help aircrafts to entry into orbit accurately.
Product Compliance:
** ICAO Annex 14 Volume ǁ Heliports 5.3.3
** FAA AC 150/5390-2B Heliport Design Guide
** CAP 437
Electrical
LED as light source saving power consumption and maintenance, 95% less power than equivalent incandescent light
Power supply available in AC(110-240VAC), DC48V
Physical
Unique designed polycarbonate lens for converging light and also provides corrosion resistance and UV protection.
UV protection Powder coated bright yellow color base make better visibility
Base material is die casting aluminum which has strong corrosion resistance, Shock and Vibrations protection
Fragile coupling reduce the secondary damage to helicopters effectively. Make the lighs better protect the plne.
Optional
► Infrared LED for pilot using NVG(Night Vision Goggles)
► Controller for power supplying and turn ON/OFF light
► VHF pilot to ground remote control
► Marine treated
Application
Helipad/Heliport TLOF areas
Heliport FATO ares
Helipad Runway
Helipad taxiway
More product parameter:
| Light Source | LED |
| Available Colors | White(Other color is optional) |
| Flash Characteristics | Flashing 1 time/second |
| Intensity(cd) | ≥3500cd |
| LED Life Experience(hours) | >100,000 |
| Base Material | Powder-coated Die-casting aluminum |
| Body Material | UV protected Polycarbonate |
| Overall Size (mm) | 220×220×312 |
| Base | Frangible coupling |
| Weight(kg) | 3 |
| ICAO | ICAO Annex 14 Volume ǁ Heliports 5.3.3 |
| FAA | FAA AC 150/5390-2B Heliport Design Guide |
| Circuit Protection | Integrated |
Contact information:
Better Delivery:

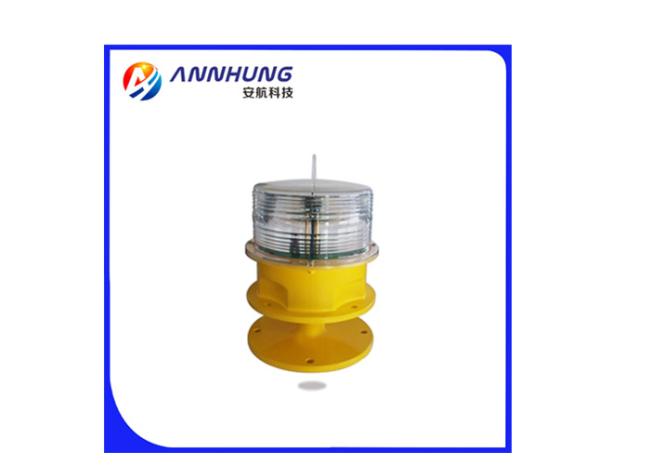

Product product imgine:
The function of the lights can be customized base on subject's request, if your usage is very wide, we could dsign specific parameter for you.
Every step from material to production is the best choice for your purchase.
If you are interested in this type, email me right now!
