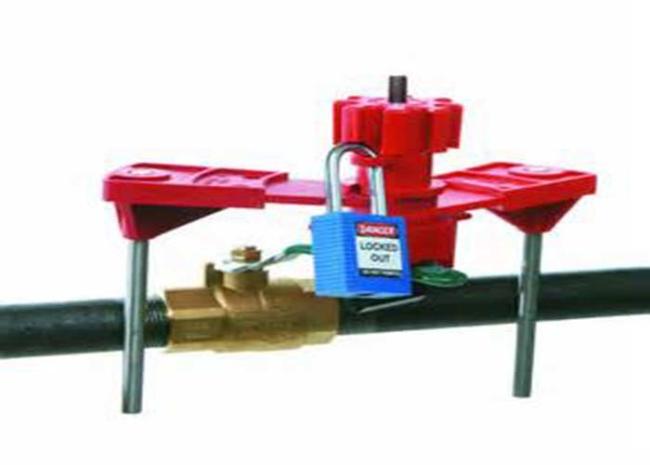

Industrial ABS Gate Valve Lockout Device Double Control Arm 647g Weight
OEM Control Valve double Arm ABS Universal Valve Lock out for Gate Valves
Special Professional Valve Universal Devices Manufacturer.
Products information:
Valve lockouts are a simple, low cost, prevent unauthorised operation of valves. It enables different types and sizes of valve to be lockout out. No other device offers such flexibility and security. All sizes and colors are available.Customs valve lockout can be made upon request.
Feature:
1. Made from industrial-grade steel and nylon for rugged durability,chemical and corrosion resistance.
2. Fit the new open-ended clamp over the closed ring,used to lock out large levers,T-handles and other hard-to-secure mechanical devices.It can add various accessoried to make the device suitable for a range of valves.
3. Use on handle widths from 1"(25mm) to 1.6"(40mm).
4. With 2 arms to lock out 3,4 or 5-ways valve.
Model No. | Description | Weight | Package |
ZC-F31 | For quarter-turn ball valves | 327g | 1pc/box |
ZC-F32 | For 3, 4 or 5-way valves | 647g | 1pc/box |
ZC-F33 | Using cable attachment for gate valve | 331g | 3pc/box |
ZC-F34 | For butterfly valves | 251g | 4pc/box |
ZC-F35 | Universial valve lockout for most valves | 533g | 1pc/box |
Related Products:
ZC-F03,ZC-F04,ZC-F01,ZC-F02,ZC-F05,ZC-F06,ZC-F07,ZC-F11,ZC-F12,ZC-F13,ZC-F14,ZC-F15,ZC-F16,ZC-F21,ZC-F31,ZC-F32,ZC-F33,ZC-F34,ZC-F35,ZC-F41,ZC-F42,ZC-F43,ZC-F44
Usage:
Normally you can used in industrial, chemical and other places.
The Safety Valve lockout we can Supply
1:adjustable ball valve lockout
2:standard ball valve lockout
3:standard gate valve lockout
4:new standard gate valve lockout
5:adjustable gate valve lockout
6:butterfly valve lockout
7:universal valve lockout
8:plug valve lockout
| Model No. | Remark | size(mm) |
| adjustable ball valve lockout | ZC-F01 | suitable for DN8-DN50 Ball Valve | 137*111*80mm |
| ZC-F02 | suitable for DN50-DN200 Ball Valve | 305*220*110mm | |
| standard ball valve lockout | ZC-F03 | suitable for DN8-DN50 Ball Valve | 145*50*12mm |
| ZC-F04 | suitable for DN50-DN200 Ball Valve | 255*80*20mm | |
| adjustable ball valve lockout | ZC-F05 | suitable for DN8-DN50 Ball Valve | 220*30*140mm |
| ZC-F05A | suitable for DN8-DN50 Ball Valve,with auxiliary parts | 220*30*140mm | |
| ZC-F06 | suitable for DN50-DN70 Ball Valve | 310*200*40mm | |
| ZC-F06A | suitable for DN50-DN70 Ball Valve,with auxiliary parts | 310*200*40mm | |
| ZC-F07 | suitable for DN70-DN200 Ball Valve | ||
| adjustable ball valve lockout | ZC-F08 | suitable for DN8-DN125 Ball Valve | |
| standard gate valve lockout | ZC-F11 | suitable for 25mm-64mm valve rod | can be made from ABS and import dupont engineering plastic |
| ZC-F12 | suitable for 64mm-127mm valve rod | ||
| ZC-F13 | suitable for 127mm-165mm valve rod | ||
| ZC-F14 | suitable for165mm-254mm valve rod | ||
| ZC-F15 | suitable for 254mm-330mm valve rod | ||
| standard gate valve lockout | ZC-F16 | suitable for 25mm-165mm valve rod | |
| butterfly valve lockout | ZC-F21 | suitable for 8mm-455mm valve rod | |
| universal valve lockout | ZC-F31 | single arm to lock out quarter-turn ball valves | |
| ZC-F32 | two arms to lock out 3,4 or 5-way valves | ||
| ZC-F33 | with cable attached to lock out valves | ||
| ZC-F34 | fix the clamp on the hand shark to avoid the trigger from closing | ||
| ZC-F35 | universal use far all types of valves | ||
| plug valve lockout | ZC-F41 | suitable for valve diameter under 22mm | |
| ZC-F42 | suitable for valve diameter from23 to 34.9mm | ||
| ZC-F43 | suitable for valve diameter from44 to 53.9mm | ||
| ZC-F44 | suitable for valve diameter from55 to 63.5mm |
Feathres:
a) Resistant to extreme weather temperature conditions.
b) OEM Manufacturing Service Supported.
Payment of our safety Lockout:
T/T, MoneyGram, Western Union.
Market:
All the above shows our products are widly popular inAsia, Europe,
North America,South America,Africa,Oceania,Antarctica.And our
company has our own R & D team that can design accroding to
customers'requirments.
