IP68 8000 Lux 156 Lum Coal Mining Lights With USB Charger ATEX Approved
5.6Ah 8000lux 156Lum ATEX Approved IP68 Coal Mining Lights With USB Charger
1. Introduction of Coal Mining Lights
This lamp uses CREE high power white led as main light, 6pcs SMD leds as the auxiliary lights,and designed with high property 5.6Ah rechargeable Li-ion battery.
It uses 30cm cable to connect headlamp and battery housing!Length of the cable can customize.And designed Battery shell with reflective stickers ,which can make you safe!the brightness also can reach 10000lux. It is also long lighting time,long life time,high intensity,low usage cost,and high safety.
- EMC certified.
- Explosion-proof, water-proof, protection in electrical short circuit,automatic power- off on the socket, 100,000 hours led lifetime.
- Light weight, portable,high quality, strong brightness, long life time.
- More than 16 hours working time, more than 3000lux high brigtness, more than 1000 cycles lifetime of the battery.
- All our lamps has one year warranty. We will keep free maintenance for you in one year. (Check our service details )
3. Specification of Coal Mining Lights
| Item | Value | ||||
| Light source | 1pc main light and 6pcs auxiliary lights | ||||
| Battery capacity | 5.6Ah | ||||
| Rated Voltage | 3.7V | ||||
| Main light current | 350mA | ||||
| Power of the main light | 1.3W | ||||
| Illuminous | 156LUM | ||||
| Brightness of the main light | 8000lux | ||||
| Life span for main LED | 8000hours | ||||
| Battery cycles | 500 cycles | ||||
| Working time | 16hours | ||||
| Weight | 375g | ||||
| Water-proof grade | IP68 | ||||
| Certified | CE&ATEX EXIB II |
4. Usage of Coal Mining Lights
This caplamp can be used in Mine, underground working, Patrolling, Overhauling and Emergency in electrical power company,Military, Police, Fire Fighting, Dockyard and other hazardous locations ect.
5. Competitive Advantage
- high lighting degree : main light is more than 8000lux in full lighting time
- long working time : continuous lighting time is more than 16 hours. With 5.6Ah Li-ion battery
- safety precautions : with short-circuit protection, include single charger, charging rated voltage DC4.2V
- certificate :CE & ATEX
6. Aout us

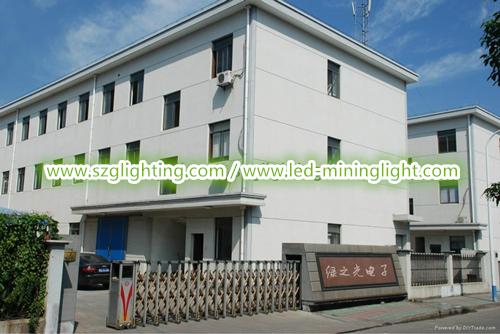

GREEN LIGHTING ELECTRONICS CO.,LTDis an expertised manufacturer of explosion-proof mining lamps which is located in ShenZhen area in china.Our factory has skilled experience in underground working lamps development and production. We focus on the development and innovation, and we pay more attention to great quality. We also have established our own marketing department for foreign sales.

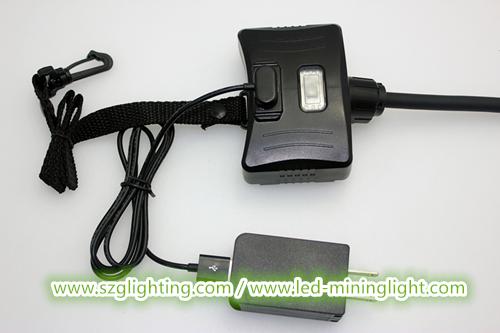

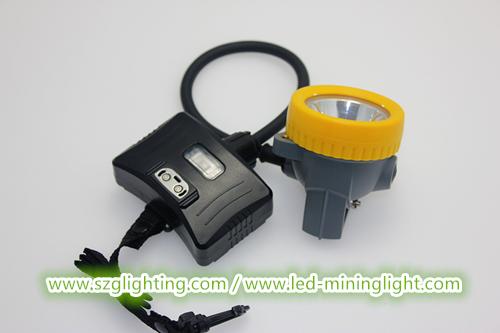

7. Product Image
