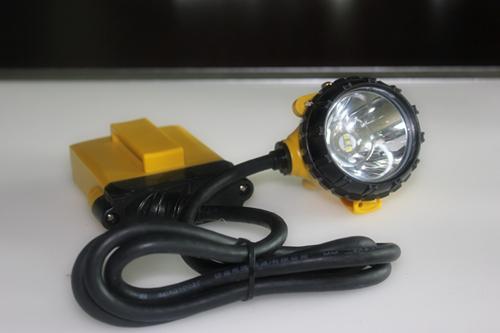

GL12-A IP68 490g Weight 3W 25000Lux 10.4Ah Rechargeable LED Headlamp
Waterproof IP68 Atex Approved 3W 25000Lux 77*93*41mm Rechargeable LED Headlamp
1.Introduction of Rechargeable LED Headlamp
Low battery capacity warning .Support 2 A charging current.
This cap lamp has strong brightness,long lighting time,long life time,high intensity,weight 600g,
low usage cost,and high safety . It uses Special material instead of PC, ABS as tradition lamps .
suitable for oil pipelines, cable interlayer, platform channel, pump house , Tunnel Project ,
Mountian-climbing,hiking, Patrolling, Overhauling and Emergency in electrical power company,Mine ,
Military, Police, Fire Fighting, Dockyard and other hazardous locations ect.
3.Specification of Rechargeable LED Headlamp
| Item | Value | ||||
| Light source | Main LED power | 3W | |||
| illumimous flux | ≥220 lum | ||||
| lighting degree | ≥25000(for 1M)Lux | ||||
| lifetime | ≥100,000Hour | ||||
| Battery | capacity | 7.8Ah | |||
| voltage | 3.7V | ||||
| charging time | ≤8Hour | ||||
| lifetime | more than 1000Cycle | ||||
| Charger | input voltage | AC110-240V | |||
| output voltage | DC4.2V | ||||
| output current | 1A | ||||
| Continuous lighting time | ≥22Hour | ||||
| Lighting range | ≥50M | ||||
| Working temperature | -60℃ | ||||
| Max surface temperature | 40℃ | ||||
| Outline dimension | 77*93*41MM | ||||
| Weight (single lamp) | 520G | ||||
| Type of protection | CE,ATEX,EXIB II M1 | ||||
| Protection category | IP68 | ||||
4.Features for Rechargeable LED Headlamp
a) High brightness
b) Long work time
c) Anti-explosion
d) Drop resistance
e) Complete water-proof
f) 240° activity steel clip
g) Tact switch
h) Military engineering plastic shell
5.Competitive Advantage
- high lighting degree : main light is more than 25000lux in full lighting time
- long working time : continuous lighting time is more than 22 hours. With 7.8Ah Li-ion battery
- safety precautions : with short-circuit protection, include single charger, charging rated voltage DC4.2V
- certificate :CE & ATEX
6.Aout us
GREEN LIGHTING ELECTRONICS CO.,LTDis an expertised manufacturer of explosion-proof mining lamps which is located in ShenZhen area in china.Our factory has skilled experience in underground working lamps development and production. We focus on the development and innovation, and we pay more attention to great quality. We also have established our own marketing department for foreign sales.
