ABS Plastic LED Mining Light , 216Lum Ultra Bright safety miners led cap lights for Hard Hats

Price Negotiable
Price: Negotiated
MOQ: 1PC
Delivery Time: 7-15 days
Brand: GREEN LIGHTING
Product Description

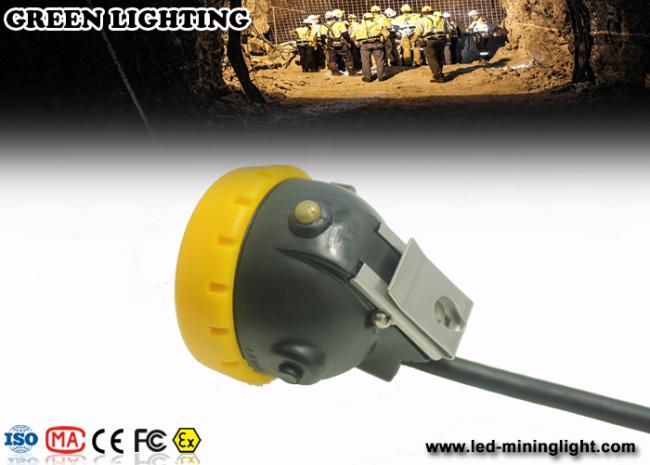

ABS Plastic LED Mining Light , 216Lum Ultra Bright safety miners led cap lights for Hard Hats



1.LED Mining Light specifications


Model : GL5-C LED Mining Light
Light source : one main and two auxiliary lights
Luminous : 129Lum
Working time : more than 13hrs
Charging time : less than 4hrs
Battery capacity : 2.6AH / 3.1AH / 5.2AH / 6.2AH available
Lighting mode : main light - auxiliary light - SOS
Usage : underground lighting, mine lighting, hiking, camping, fishing, home lighting, other outdoir and
indoor lighting.
Charger : Cradle charger ,USB charger and car charger for choose.
SOS function :
It will enter SOS mode if you press the buttom for 3s when it's off ; And it will end SOS mode if you press the button once .



Item Value
Model GL5-C
Light source 1pc main light and 2pcs auxiliary lights
Battery capacity 6.6Ah
Rated Voltage 3.7V
Main light current 450mA
Power of the main light 1.65W
Illuminous 216LUM
Brightness of the main light 12000lux
Life span for main LED 100000hours
Battery cycles 1000 cycles
Working time 16hours
Weight 490g
Water-proof grade IP68
Certified CE,ATEX,EXIB II M1


2. safety miners headlamp Parts PICTURES









3. Serial LED Mining Light Specifications



Trouble description Trouble analysis Troubleshooting

Light is not on when pressing
the button

Battery power is used up or
Automatic opening protection

Charge the lamp

Working time is less than
12 hours

Battery is not fully charged

Make sure the lamp well
connected to the charger when charging

Longer charging time The charging points poor contact

Clean the charging points
and the slot

Low illuminance Dirty lens Clean water wash lens


4. Packing :
one set each gift box with 1pc head lamp, 1pc USB charger, 1pc car charger., 20 sets/ carton .

Characters:
 Stable and super bright.Small size , light weight , and portable design.
Adjustable lighting angle.
Safe, reliable and maintenace free .
Interlligent charging protection : anti-overcharging , current control ,
short circuit protection and anti-overheating.
More options of different models .
Explosion-proof and strong impact resistance, waterproof ,
current shock proof, moisture proof , and impact proof . CE certified,
Our these lamps can be used in any other hazardous locations.
High power LED light source, longer life span ;Envronment friendly battery.



5. Our service
We can provide good quality, quick delivery, AQ discount for all customers.
1. For all your inquires, we will reply you in detail within 24 hours.
2. OEM/ODM services. Print your own logo on product, can customize retail box packing and other things.
3. We have sales who have engage in LED many years to provide custom-made the sales solution.
4. We have engineers who has the experience of projects to solve the problems of technical.
5. We have very experienced R&D and we have strong ability to do ODM projects.
Looking forward to cooperating with you.

6.Brand and Production
"GREEN LIGHTING " is a brand trademark has been registered in china. Our products have been selling
to around 60 countries and we have obtained patents on invention of several product items.



7. R & D

GREEN LIGHTING owns a professional development group, mainly devoted to new technology, new mining lights and new energy research and development.

In 2010, GRREN LIGHTING developped safety tracking and warning system, and implant it into our led mining cap lamps products.

In 2015, GREEN LIGHTING development and reserach team bring us a new safety projects safety lockouts, up to now, we can did more than 2000pcs differrent kinds molds. This new project products

mainly used for industrial safety operations stopping and locking system. GREEN LIGHTING become

the leader manufacuter in this area in china.

In 2016, GREEN LIGHTING development and reserch team researched water-activated lights with

new energy sucessful. And they also continue to develop other kinds portable lights with this new

enviroment friendly energy to replace the traditional li-ion battery. More nice and qualified lights

will come out in GREEN LIGHTING.
