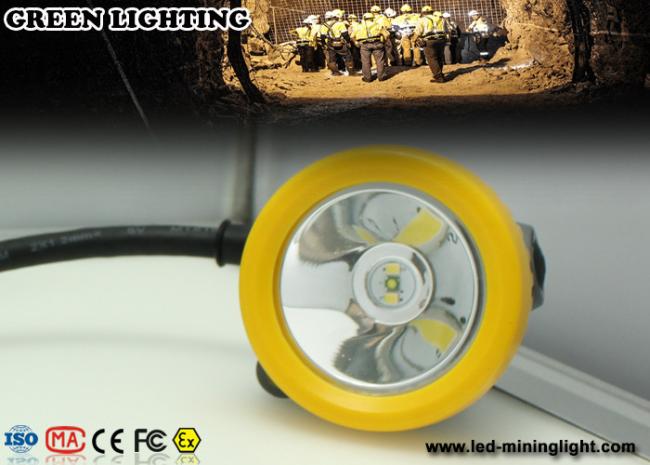

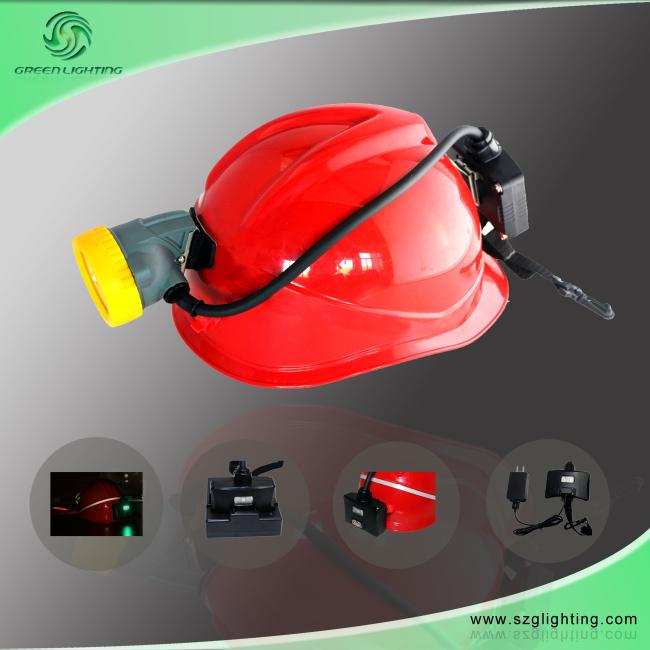

Rechargeable IP68 Waterproof Coal Miners Headlamp , 10000 Lux CREE LED Mining Cap Lamp
Rechargeable IP68 Waterproof Coal Miners Headlamp , 10000 Lux CREE LED Mining Cap Lamp
1.Features for Coal Miners Headlamp
a). High power LED light source, Lens:toughened glass.
b).Li-ion battery safety reliable, compact and light weight , free of maintenance .
c).Anti-overcharging , current control , short circuit protection and anti-overheating Charging protection .
d).Explosion-proof and strong impact resistance, waterproof , current shock proof, moisture proof , and impact proof.
e).safety : CE certified, Our these lamps can be used in any other hazardous locations.
2.Specification of miner cap lamp
| Item | Value | ||||
| Model | GST-7B | ||||
| Light source | 1pc main light and 6pcs auxiliary lights | ||||
| Battery capacity | 5.6Ah | ||||
| Rated Voltage | 3.7V | ||||
| Main light current | 350mA | ||||
| Power of the main light | 1.3W | ||||
| Illuminous | 156LUM | ||||
| Brightness of the main light | 8000lux | ||||
| Life span for main LED | 8000hours | ||||
| Battery cycles | 1000 cycles | ||||
| Working time | 16hours | ||||
| Weight | 375g | ||||
| Water-proof grade | IP68 | ||||
| Certified | CE,ATEX,EXIB II M1 |

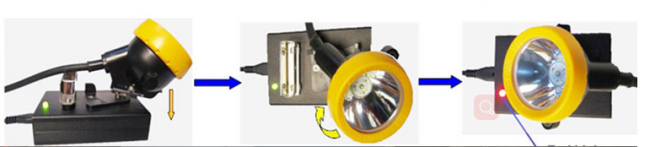

Instructions for use
- In the first time using lamps,pls use our special charger or accepted charging rack to charging lamps firstly.when the lamps are under charging,charger indicated light is RED COLOR,when the charger indicated light turned GREEN COLOR,it mean that charger have finished to charging.

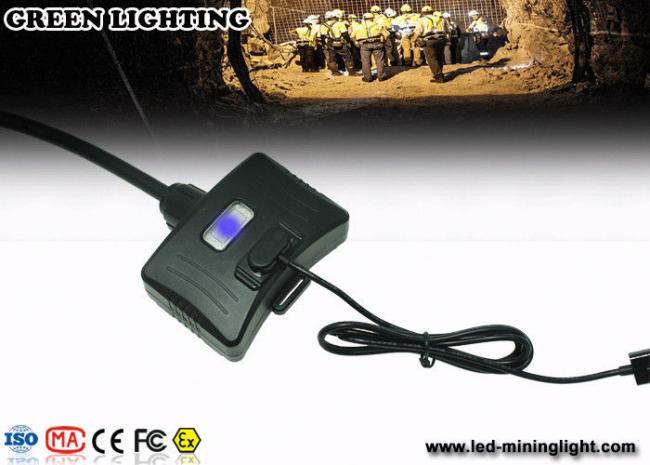

battery box
PACKING of Coal Mining Lights
4.Competitive Advantage
- High power LED light source, extra long lifetime
- Li-ion battery, compact and light weight, free of maintenance
- Intelligent charging protection: anti-overcharging, current control, short circuit protection and anti-overheating
5.Troubles and troubleshootings
| Trouble description | Trouble analysis | Troubleshooting |
| Light is not on when pressing the button | Battery power is used up or Automatic opening protection | Charge the lamp |
| Working time is less than 12 hours | Battery is not fully charged | Make sure the lamp well connected to the charger when charging |
| Longer charging time | The charging points poor contact | Clean the charging points and the slot |
| Low illuminance | Dirty lens | Clean water wash lens |
6. Safety warning
a) Please donot shoot at eyes directly while the lamp is working since the strong light will hurt eyes.
b) Please do not disassemble the cap lamp, otherwise it maybe cause potential troubles related to safety, reliability to work underground.
c) Please do not charge the lamp underground.
d) Please donot disassemble the lamp or repair the battery parts by yourself and donot replace the structure of the lamp and parts.
e) Please donot crash and stike the lamp.
