28000lux Led 12Ah IP68 Waterproof Coal Miner Cap Lights With Two Color Head Housing
28000lux Led 12Ah IP68 Waterproof Coal Miner Cap Lights With Two Color Head Housing
1.Features for Coal Miner Cap Lights
1).Brightness is up to 28000lux ! Weight is light for portable use. ,
2). Light weight, portable,high quality, strong brightness, long life time.
3). More than 16 hours working time, more than 1000 cycles lifetime of the battery.
4).Explosion-proof, water-proof, protection in electrical short circuit,automatic power- off on the socket.
5). Fast intelligent charger : AC input 100-240V , 50-60Hz ;DC output voltage 4.2v +_0.05v ;
DC output current 1000mA ;AC Plug US,EU,UK and AU standards all countries
6) We will keep free maintenance for you in one year.
2.Specification of Coal Miner Cap Lights
| GS12-A Specification | ||
| Type | Coal Mining Lights | |
| Light | Main LED quantity | 1pc |
| Auxiliary LED quantity | 6pcs | |
| Main light power | 3watt | |
| Main light current | 450mA | |
| Main light Luminous flux | 348LUM | |
| Brightness of the main light (Initial Lighting degree) | 28000LUX | |
| Main light Life span | 10000hours | |
| Auxiliary light life span | >5000hours | |
| Auxiliary light power | 0.4watt | |
| Usually Specification | Color | Black+yellow |
| Material | PC | |
| Main cable length | 32cm | |
| glass | 3mm | |
| Weight | 396g | |
| Water-proof grade | IP68 | |
| Certified | CE,ATEX,EXIB II M1 | |
| Traditional/ Fast intelligent charger | AC input | 100-240V , 50-60Hz |
| DC input | 7-30V | |
| DC output voltage | 4.2v | |
| DC output current | 1000mA | |
| AC Plug | US,EU,UK and AU standards all countries | |
| Dimensions | 56*76*116mm | |
| Weight | 215g | |

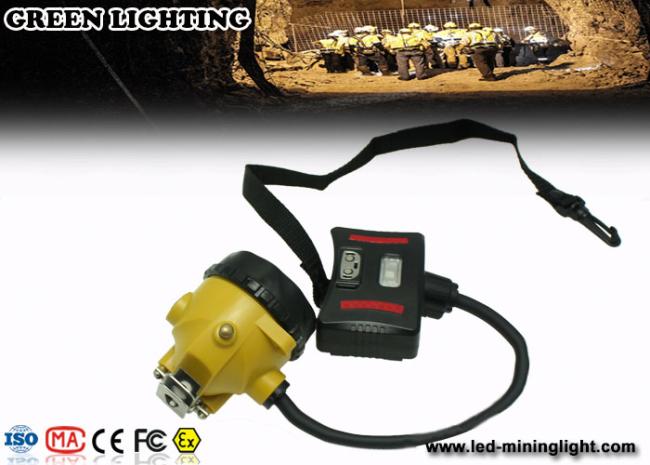

3.Coal Miner Cap Lights Product Image
- The LED cap lamp with two lighting modes. You can push on the switch button on lamp head to change from the main lighting source to subsidiary lighting source or to turn off the lamp.
- In the first time using lamps,pls use our special charger or accepted charging rack to charging lamps firstly.when the lamps are under charging,charger indicated light is RED COLOR,when the charger indicated light turned GREEN COLOR,it mean that charger have finished to charging.
- To use the cap lamp, you have to let the waistband to go through the waistband ring on battery box and tie it well. Then clip the lamp head on the cap, check the cable and turn the switch on.
| Battery | Type | Lithium ion battery |
| Quantity | 2 cell | |
| Rated capacity | 12Ah | |
| Rated Voltage | 3.7V | |
| Cycles times | 1000 cycles | |
| Continuous working time | 16 hours | |
| Short circuit protect time | < 320uS | |
| Charging time | 3.5h |
5. Coal Mining Lights Safety warning
a) Please donot shoot at eyes directly while the lamp is working since the strong light will hurt eyes.
b) Please do not disassemble the cap lamp, otherwise it maybe cause potential troubles related to safety, reliability to work underground.
c) Please do not charge the lamp underground.
d) Please keep the lamp away from fire sources.
6.Usage of Coal Mining Lights
Widely used in petrochemical, chemical, nuclear power, military automobile shipbuilding industries, suitable for oil pipelines, cable interlayer, platform channel, pump house , Tunnel Project , Mountian-climbing,hiking, Patrolling, Overhauling and Emergency in electrical power company,Mine , Military, Police, Fire Fighting, Dockyard and other hazardous locations ect.
7.Coal Mining Lights FAQ
Q: 1. Can I have a sample order?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q: 2. What is the lead time?
A:Sample needs 7-10days, mass production time needs 25-30days.
Q: 3. Do you have any MOQ limit?
A: Our MOQ EXW is 1 pc for sample; MOQ FOB is 200pcs.(Depends on different type battery/battery pack)
Q: 4. How do you ship the goods and how long does it take arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 5-7 days to arrive.
Q: 5. How to proceed the order when customer order products?
A: Inquiry-Confirmation-Send Proforma Invoice-Customer make payment-Arrange production-ship the goods to customers-Confirmation-Finish.
Q: 6. How to make this payment?
A: TT, Paypal, Western Union.
Q: 7. Do you accept OEM/ODM?
A: Yes, it’s available.
