5.6Ah Li ion Battery Rechargeable Miners Headlamp , High Lumen Rechargeable Cap Lamps
5.6Ah Li ion Battery Rechargeable Miners Headlamp ,High Lumen Rechargeable Cap Lamps
1.Features for Rechargeable Miners Headlamp
a). 1.3W CERR LED light source, 5.6Ah Li ion Battery .
b). The 3mm toughened glass, light weight , free of maintenance .
c). Three type charger : our GST-7C special charger,input 110-250V,50-60HZ,output:4.2V 1000MA
d).Explosion-proof and waterproof , current shock proof, moisture proof , and impact proof.
e).safety : EXia IIC4(zone1 and zone 2)
f). 1pc main light and 6pcs auxiliary lights .
2.Specification of miner cap lamp
| GST-7B Specification | ||
| Type | LED Mining Light | |
| Light | Main LED quantity | 1pc |
| Auxiliary LED quantity | 6pcs | |
| Main light power | 1.3watt | |
| Main light current | 350mA | |
| Main light Luminous flux | 156LUM | |
| Brightness of the main light (Initial Lighting degree) |
8000LUX | |
| Main light Life span | 8000hours | |
| Auxiliary light life span | >5000hours | |
| Auxiliary light power | 0.4watt | |
| Battery | Type | Lithium ion battery |
| Quantity | 3 cell | |
| Rated capacity | 5.6Ah | |
| Rated Voltage | 3.7V | |
| Cycles times | 1000 cycles | |
| Continuous working time | 16 hours | |
| Short circuit protect time | < 320uS | |
| Charging time | 3.5h (by charger or USB) | |
| Usually Specification | Color | grey+Blue |
| Material | PC | |
| Main cable length | 0.38m | |
| charger | USB, traditional charger , fast interlligent charger | |
| Weight | 375g | |
| Water-proof grade | IP68 | |
| Certified | CE,ATEX,EXIB II M1 | |
| Traditional/ Fast intelligent charger |
AC input | 100-240V , 50-60Hz |
| DC input | 7-30V | |
| DC output voltage | 4.2v +_0.05v | |
| DC output current | 1000mA /2000mA | |
| AC Plug | US,EU,UK and AU standards all countries | |
| Dimensions | 56*76*116mm | |
| Weight | 215g | |
The LED cap lamp with two lighting modes. You can push on the switch button on lamp head to change from the main lighting source to subsidiary lighting source or to turn off the lamp .

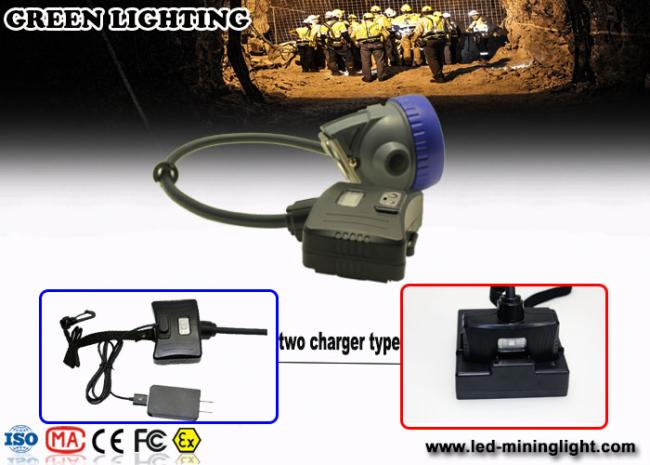

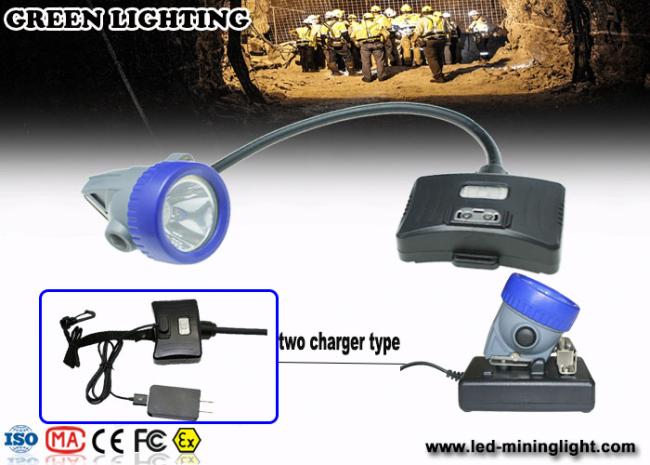

3.Rechargeable LED Headlamp Product Images
This lamp have two charger , one type is USB Charger , other type is Traditional/Fast intelligent charger .
Intelligent charging protection: anti-overcharging, current control, short circuit protection and anti-overheating.
4.Usage of Rechargeable LED Headlamp
Widely used in petrochemical, chemical, military automobile shipbuilding industries, suitable for oil pipelines, cable interlayer, platform channel, pump house , Tunnel Project , Mountian-climbing,hiking, Patrolling, Overhauling and Emergency in electrical power company,Mine , Military, Police, Fire Fighting, Dockyard and other hazardous locations ect.
5.Troubles and troubleshootings
| Trouble description | Trouble analysis | Troubleshooting |
|
Light is not on when pressing |
Battery power is used up or |
Charge the lamp |
|
Working time is less than |
Battery is not fully charged |
Make sure the lamp well |
| Longer charging time | The charging points poor contact |
Clean the charging points |
| Low illuminance | Dirty lens | Clean water wash lens |
6.FAQ
Q: 1. Can I have a sample order?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q: 2. What is the lead time?
A:The Sample lead time is 7-10days, The mass production delivery time needs 25-30days.
Q: 3. Do you have any MOQ ?
A: Our MOQ that 1 pc for sample; The mass production MOQ is 50pcs.(Depends on different type battery/battery pack) , the customized goods MOQ is 100pcs .
Q: 4. How do you ship the goods and how long does it take arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-7 working days to arrive.
Q: 5. How to proceed the order when customer order products?
A: Inquiry-Confirmation-Send Proforma Invoice-Customer make payment-Arrange production-ship the goods to customers-Confirmation-Finish.
Q: 6. How to make this payment?
A: TT, Paypal, Western Union,MoneyGram, etc .
You will payment by Wechat , your agent .
Q: 7. Do you offer guarantee for the products?
A: Yes, we offer one year guarantee for the products.
Q: 8. Do you accept OEM/ODM?
A: Yes, it’s available. we will offer the customized service.
