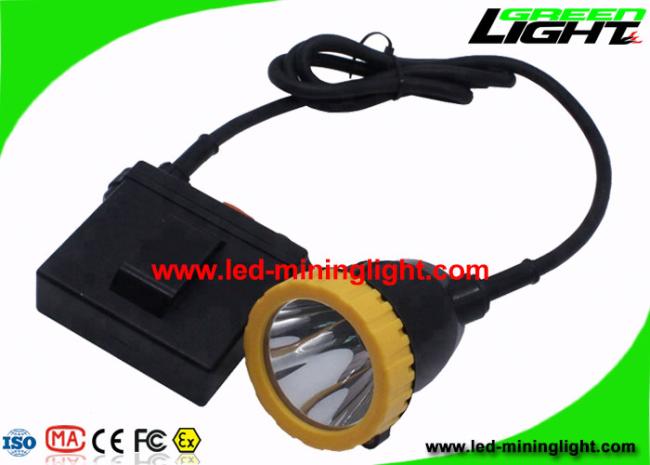

Brightest Rechargeable LED Headlamp 50000lux High Power 11.2Ah 650Lum
Brightest Rechargeable LED Mining Headlamp High Power 11.2Ah 650Lum
Main Features for Model GL6-B hunting lights:
1.Material:
1) anti-impact engineered polymer resin(ABS)
2) Silicone button and Soft touch
3) Defence grade: IP68
2.Humanization design:
1)Invagination design of charging contact hole is sturdy and durable
2)Stainless steel cap hook clamp design
3)Durable in use
3.Circuit design:
1) Constant current circuit, constant luminance
2) Set up charge manager inside
3) Protection function of overcharge, over-discharge and short circuit
4.Lamp holder design
Fixed anti-dismantling screws can prevent accidental opening under the mine
5.Light source and light cup design
1)Imported LED light source
2) Spinning aluminium alloy light cup
3) Good gathering effect High luminance, Good heat dissipation
6.Power supply
1) Adopt the self-developed lithium battery 18650
2) Safety signs licence
3) Explosion -proof inspection certificate
Main parameter of rechargeable headlamp:
| Model | GL6-B |
| Light Source | 1ML and 4AL |
| Rated voltage | 3.7V |
| Main Light current | 1000mA |
| Power of main light | 3.7W |
| Illuminous | 650lum |
| Brightness | 50000lux |
| Life span of main light | 100000hours |
| Lighting working time | 13hours |
| Battery cycles | 1000cycles |
| Color | yellow and black(can be customized) |
| Waterproof grade | IP67 |
| Certificate | CE, ATEX,ROHS |
Application Surroudings:
Suitable for explosive gas environment zone 1, zone 2 locations;
Suitable for combustible dust environment 20 zone, 21 zone and 22 zone places;
Suitable for A, II B, II C explosive gas environment;
Suitable for: indoor, outdoor 1.8-3.5 meters in height;
Application Sites:
*Coal mine lighting&Mining&Visitors mines&Mines rescue force&UG coal mining
*Tunneling
*Oil ectraction&Chemical engineering
*Expedition&Travel&Camping
Trouble and troubleshootings:
| Trouble description | Trouble analysis | Troubleshooting |
| Ligth is not on when pressing the botton | Battery power is used up or automatic opening protection | Charge the light |
| Working time is less than 12hours | Battery is not fully charged | Make sure the lamp well connected to the charger when charging |
| Longer charging time | The charging points poor contact | Clean the charging points and slot |
| Low illuminance | Dirty lens | Clean water wash lens |
About Green Lighting Electronics CO.,LTD.
We are a professional mining cap lamp factory.
We have a professional design team.
We can produce the mine lamp according to customers' requirement. such as shape of the battery box and headlamp, illumination of the led, capacity of the battery, color of the lamp.
We can design and produce your mining lamp idea.
