Super Bright Rechargeable LED Headlamp 6.8Ah 13000 Lux Safety For Mining Tunneling
6.8Ah 13000Lux Safety Super Bright Rechargeable LED Headlamp for Mining Tunneling
Features of Model GLC-6 led mining lamp:
1. OLED screen: display time, battery capacity, date.
Advantage: Safety lighting usage: you can charge your miner light when power nearly run out.
2. USB charger and magnetic connecting charging spot.
Advantage: Convenient. You can charge it on the car, computer,power bank.
3. All in one stuture.
Advantage: perfect waterproof IP68.
4. 2A charger.
Advantage: fast charging.
5. Size: 85*72*58mm. 160-210g weight.
Advantage: Portable.
6. Superior brightness: 4000-13000LUX is supplied up to your options.
7. SOS lighting mode.
Advantage: safe working in emergency.
8. Auxiliary light:
Advantage: when lower power, you can use AL to get more working lighting time.
9. Detachable structure
Advantage: repair or replace inside parts is available,bring you 'use again'.
10. Special material
Advantage: flame retardant material with anti-exolosive, flame-resistant, impact-resistant.
11. Adjustable stainless steel clip to change lighting angle.
12. Lighting levels: Main light - auxiliary light - SOS three lighting modes.
13. Lithium Battery
Advantage: electrical short circuit protection, over-charging and over-discharging protection.
14. Push Button.
Easy and confortable to turn off/on miner lights, time setting.
15. Cradle charger
Support USB charging.
16. Waterproof and dustproof IP68.
Full-sealing all in one structure.
17. Lightweight and high intensity engineering plastic material.
Main parameter of GLC-6 Series:
| Item | GLC-6 | |||
| Light Source | one main light and two auxiliary lights | |||
| Battery Capacity | 6.8Ah | |||
| Rated Voltage | 3.7V | |||
| Power of the main light | 1.78W | |||
| Illuminous of the main light | 232Lum | |||
| Brightness of the main light | 13000lux | |||
| Oled Screen | yes | |||
| Working time | 15 hours | |||
| Life Span of the light source | 100000 hours | |||
| Battery cycles | 1200 cycles | |||
| Charging time | 4-6 hours | |||
| Weight | 200g | |||
| Water-proof grade | IP68 | |||
Pictures as below shown:

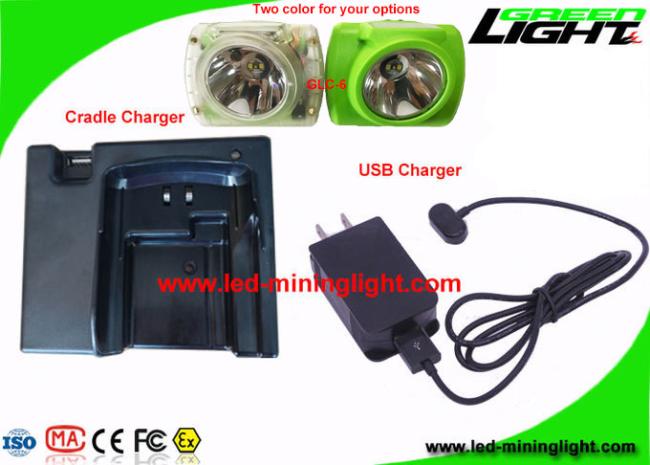

1. GLC-6 standard model : green, transparent color up to your options.
Other color can be customized with MOQ
2. USB charger or cradle charger up to your options.
3. Cradle charger support usb charging.
4. We offer usb cable + cradle charger for free.

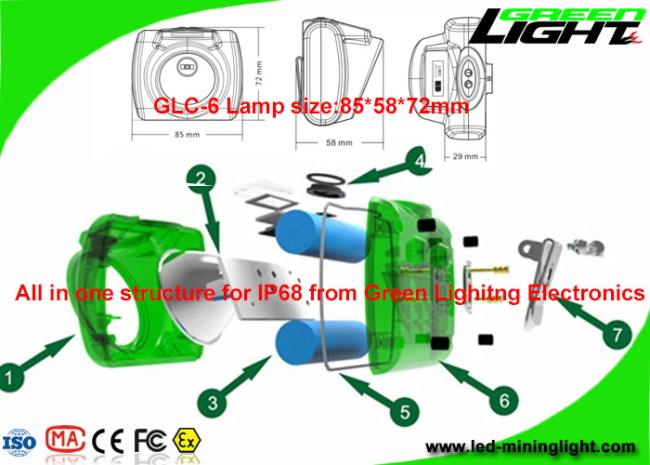

Full sealing structure:
1. light weight and small size
2. Mold on the first time
3. Durable Panasonic battery
4. Detachable Structure
Cordless mining cap lamps GLC-6 advantages:
- Free you from the inconvenience of electrical cable and the burden of a battery pack, and also eliminates the possibility of any accident by bumping or snagging cable cord and increase working efficiency;
- Very light weight, even lighter than a headpiece, only of traditional caplamps;
- Adjustable angle to point wherever you see, near or far ---- to read and write, repair equipment or check the ceiling, significantly reducing dead corners
- Multiple operating modes for different applications;
- Natural LED light for a comfortable light environment;
- IP68 PC housing with a fully integrated and sealed structure, and solid light source designed for the harshest underground mining environment;
- Extraordinary safety - no acid or any toxin to spill, no flammable materials exposed, no heat on lens surface, no danger for personnel at all;
- Various ways to wear, mount or attach for different applications, used as a caplamp, headlamp, torch or portable lamp;
- Easy to charge. Strong protection from over voltage, over current, over charge and over discharge;
- Various models of charging banks and single chargers available in different charging units and power input;
- Very low maintenance to significantly reduce your lamp room cost. Easy to clean; No cable, bulb and headpiece to check or change; No repairing; No dedicated staff to look after charging.
Troubles and troubleshootings
| Description | Analysis | Troubleshooting |
| Light is not bright |
Switch contact is bad / Led source is broken |
Inspect switch, measure the circuit, If the switch contact is good, then check the voltage of LED and the circuit or contact with the manufacturer. |
| Not Light enough time | Undercharge |
First check the contact points, and then charge according to the regulation . |
|
New lamp use without cycle charge before |
Precycling charge according to the regulations. | |
| The Lifespan of battery is over | Replace the new lamp | |
| Illumination is not enough | Low battery voltage |
Measure the battery voltage, ensure charging time up to 7hours. |
| The glass is serious pollution | Can wash the lens suface of lamp by water . | |
|
The lamp can't charge or long charging time |
Charger (rack) breakdown or battery damages, charge manager fault |
Check the charger 's output voltage and current , if all normal, check the battery , measure its internal resistance and capacity. If not up to technical requirements, replace charger or contact with the manufacturer. |
| Can't rotate on fixed point | The screws of clip is started | Fasten the screw appropriately |
Safety and happy usage with mining headlamp
- Coal mining, marine using, exploration working,
- Emergency rescue: firefighting, flood prevention, tapping rubber,
- Outdoor advanture: fishing, hunting, camping, auto repair and other related industries.
- It is also suitable for industrial and agricultural production and outdoor mobile lighting.
