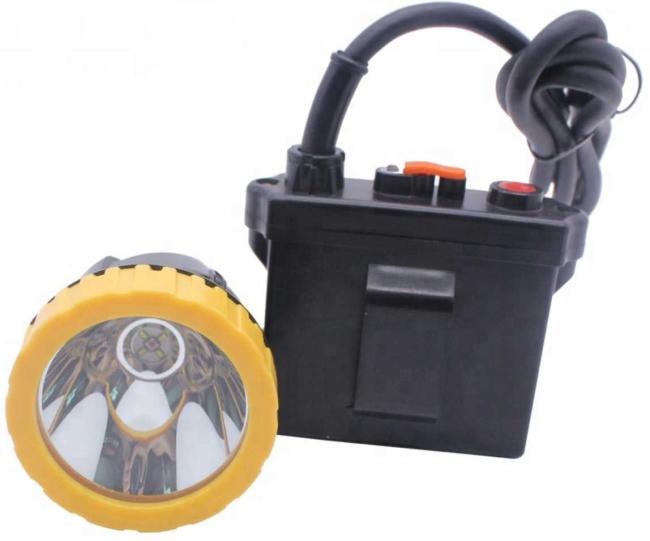

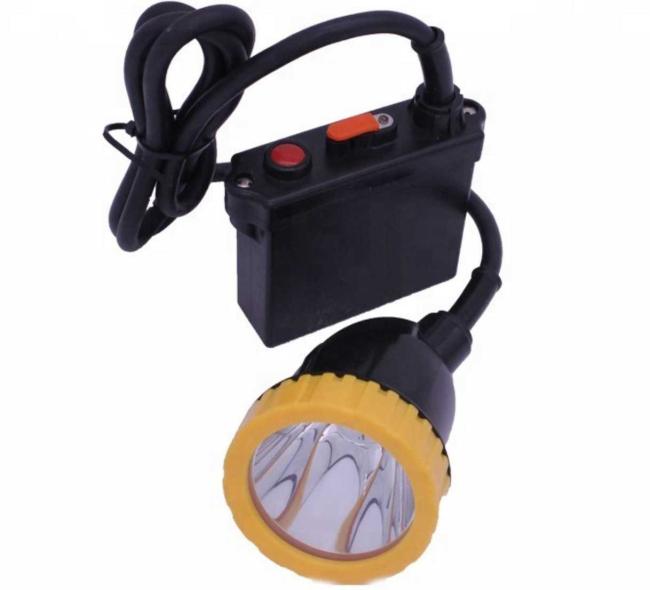

50000lux High Brightness LED Miners Cap Lamp Waterproof IP67 For Night Hunting
50000lux High Brightness LED Headlight Lamp for Night Hunting from and CE Light Source
Main Features for Model GL6-B hunting lights:
1.Material:
1) anti-impact engineered polymer resin(ABS)
2) Silicone button and Soft touch
3) Defence grade: IP68
2.Humanization design:
1)Invagination design of charging contact hole is sturdy and durable
2)Stainless steel cap hook clamp design
3)Durable in use
3.Circuit design:
1) Constant current circuit, constant luminance
2) Set up charge manager inside
3) Protection function of overcharge, over-discharge and short circuit
4.Lamp holder design
Fixed anti-dismantling screws can prevent accidental opening under the mine
5.The light source and light cup design
1)Imported LED light source
2) Spinning aluminium alloy light cup
3) Good gathering effect High luminance, Good heat dissipation
6.Power supply
1) Adopt the self-developed lithium battery 18650
2) Safety signs licence
3) Explosion-proof inspection certificate
Main parameter of rechargeable headlamp:
| Model | GL6-B |
| Light Source | 1ML and 4AL |
| Rated voltage | 3.7V |
| Main Light current | 1000mA |
| Power of main light | 3.7W |
| Illuminous | 650lum |
| Brightness | 50000lux |
| Life span of main light | 100000hours |
| Lighting working time | 13hours |
| Battery cycles | 1000cycles |
| Colour | yellow and black(can be customized) |
| Waterproof grade | IP67 |
| Certificate | CE, ATEX, ROHS |
Charging as below picture shown:
Application
- camping, travelling, cycling
- underground mines
- the tool, maintenance lighting
- fishery, diving, fire-fighting
- military, architecture, living
- furniture, farm lighting
- night fishing, car-carrying, road and railway lighting, forest farm
LED Cap Lamp Trouble Shooting:
1. If abnormal phenomena happen but the lamp is in the normal using status, must be
careful to check the reason firstly. Then deal with the problem.
2. The lighting time is not enough
| No | Reason | Treatment |
| a | Not enough charging | First, should check if the connection between the charger’s output plug and lamp’s charging socket is good |
| b | Using too long to achieve life | Replace the lamp |
| c | The charger does not work | Check if the indicator of charger is good and also check if the connection of charger’s AC power endpoint is good |
3, The lamp is off suddenly when it works
Reason: short circuit or battery power runs out
Treatment: turn off the main light source, restart, then the lamp should be on (remark:
the lamp has a circuit breaker); It is still off after restarting, please charge the battery.
If it still doesn’t work after charging, it means the lamp has some problems, delivery the
lamp to the factory for repair.
