14E7-01550 14E7-01310 14E701550 14E701310 HYUNDAI R480LC9 Engine Rubber Mounting
-
14E7-01550 14E7-01310 14E701550 14E701310 HYUNDAI R480LC9 Engine Rubber Mounting
-
Specifiion
| Appliion | HYUNDAI Excavator spare parts |
| Parts Name | Engine rubber mounting |
| Parts No |
14E7-01550 14E7-01310 14E701550 14E701310 |
| Model | R450LC7 R500LC7 R480LC9 R520C9 |
| Delivery time | Stock for urgent delivery |
| Condtion | Brand new, OEM quality |
| MOQ | 1 PCS |
| Design | made in china |
| Means of transport | By sea/air, DHL FEDEX UPS TNT Express |
| Packing | As request or standard packing |
- Applicable models
3-SERIES CRAWLER EXCAVATOR R450LC3 R450LC3A
3-SERIES WHEEL LOADER HL740-3 HL740TM-3
7-SERIES CRAWLER EXCAVATOR R450LC7 R450LC7A R500LC7 R500LC7A
9-SERIES CRAWLER EXCAVATOR R480LC9 R480LC9S R520LC9 R520LC9S Hyundai

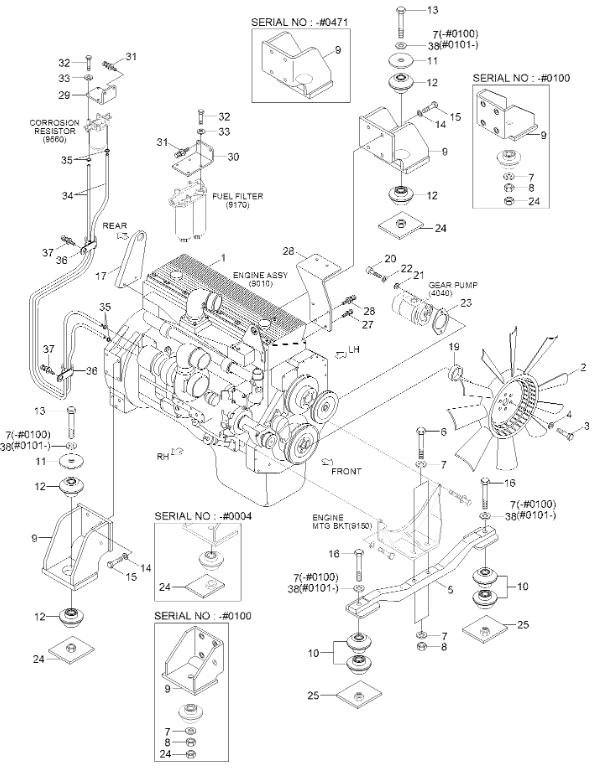

- Parts list diagram
| Pos. | Part No | Qty | Parts name | Comments |
| 1 | 11NB-04010 | [1] | ENGINE ASSY | |
| 1 | 11NB-04011 | [1] | ENGINE ASSY | |
| 1 | 11NB-04012 | [1] | ENGINE ASSY | |
| 2 | 11NB-00040 | [1] | FAN-COOLING(9EA) | |
| 2 | 11NB-00041 | [1] | FAN-COOLING(9EA) | |
| 3 | S087-060726 | [6] | BOLT-HEX, UNIFIED | |
| 4 | 12L1-0017 | [6] | WASHER-HARDENED | |
| 5 | 14E7-00731 | [1] | HANGER WA | |
| 5 | 14E7-00732 | [1] | MOUNT WA | |
| 6 | S017-20110D | [2] | BOLT-HEX | |
| 7 | S441-200006 | [8] | WASHER-HARDENED | |
| 7 | S441-200006 | [10] | WASHER-HARDENED | |
| 7 | S441-200006 | [4] | WASHER-HARDENED | |
| 8 | S205-20100B | [2] | NUT-HEX | |
| 8 | S205-20100B | [4] | NUT-HEX | |
| 8 | S205-20100B | [2] | NUT-HEX | |
| 9 | 11NB-00031 | [2] | BRACKET WA-REAR | |
| 9 | 11NB-00032 | [2] | BRACKET WA-REAR | |
| 9 | 11NB-00033 | [2] | BRACKET WA-REAR | |
| 10 | 14E7-01310 | [4] | RUBBER-MOUNT | BLUE |
| 10 | 11QB-02220 | [4] | RUBBER-MOUNT | RED |
| 11 | 14E7-01340 | [2] | WASHER-REBOUND | |
| 11 | 11QE-00210 | [2] | WASHER-MOUNT | |
| 12 | 14E7-01550 | [4] | RUBBER-MOUNT | WHITE |
| 12 | 11QE-00200 | [4] | RUBBER-MOUNT | ORANGE |
| 12 | 11QB-00180 | [8] | RUBBER-MOUNT | ORANGE |
| 13 | 11QB-02150 | [2] | BOLT-HEX | |
| 13 | 11QB-02210 | [2] | BOLT-HEX | |
| 13 | S017-22150D | [2] | BOLT-HEX | |
| 14 | S403-161006 | [8] | WASHER-PLAIN | |
| 14 | S441-160006 | [8] | WASHER-HARDENED | |
| 15 | S017-16050D | [8] | BOLT-HEX | |
| 16 | 11QB-02160 | [2] | BOLT-HEX | |
| 16 | S017-22175D | [2] | BOLT-HEX | |
| 17 | 11NB-00080 | [1] | BRACKET-LIFT | |
| 19 | 11QB-05110 | [1] | SPACER | |
| 20 | S109-080306 | [2] | BOLT-SOCKET | |
| 21 | S411-080006 | [2] | WASHER-SPRING | |
| 22 | S403-081006 | [2] | WASHER-PLAIN | |
| 22 | S403-08100B | [2] | WASHER-PLAIN | |
| 23 | 154916 | [1] | GASKET-GEAR PUMP | |
| 24 | 11QB-02131 | [2] | STOPPER | |
| 24 | S275-20000B | [2] | NUT-SELF LOCKING | |
| 24 | 11QE-00180 | [2] | NUT-STOPPER | |
| 25 | 11QB-02141 | [2] | STOPPER | |
| 25 | 11QA-01100 | [2] | NUT-STOPPER | |
| 26 | 11QB-45180 | [1] | BRACKET | |
| 27 | S037-106516 | [2] | BOLT-W/WASHER | |
| 28 | S037-102526 | [2] | BOLT-W/WASHER | |
| 29 | 11QB-00130 | [1] | BRACKET-FILTER | |
| 30 | 11QB-00140 | [1] | BRACKET-FILTER | |
| 31 | S037-103026 | [4] | BOLT-W/WASHER | |
| 32 | S087-060246 | [8] | BOLT-HEX, UNIFIED | |
| 33 | S403-10100B | [8] | WASHER-PLAIN | |
| 34 | 11QB-00150 | [2] | HOSE-OVER FLOW | |
| 35 | S520-015000 | [4] | CLAMP-HOSE,S/DRIVE | |
| 36 | 31L7-10200 | [2] | CLAMP-TUBE | |
| 37 | S037-101526 | [2] | BOLT-W/WASHER | |
| 38 | S441-220006 | [4] | WASHER-HARDENED |
-
We could supply the following spare parts
1 Hydraulic parts: hydraulic pump, main valve, hydraulic cylinder, final drive, travel motor, swing machinery, swing motor etc.
2 Engine parts: engine ass’y, piston, piston ring, cylinder block, cylinder head, crankshaft, turbocharger, fuel injection pump, starting motor and alternator etc.
3 Undercarriage part: Track roller, Carrier roller, Track Link, Track shoe, Sprocket, Idler and Idler cushion etc.
4 Cab parts: operator’s cab, wiring harness, monitor, controller, seat, door etc.
5 Cooling parts: Radiator, air conditioner, compressor, after cooler etc.
6 Other parts: Service kit, swing circle, engine hood, swing joint, fuel tank, filter, boom, arm, bucket etc.
- Packing and Shipping
Packing Details :
inner packing : plastic film for wrapping
external packing : wooden
Shipping :
within 3 days after received the payment , by air or by express or by sea on the basis of the
quantity and emergency circumstances.
1. By Couriers: DHL, UPS, FEDEX, TNT are the main courier companies we are cooperated,
2. By Air: Delivery from the Guangzhou air port to customer's destination city air port.
3. By Sea: Delivery from the Huangpu port .
- Product Warranty
1. Warranty Period: 3 Months' warranty from the date of arrival. Longer period of 6 months' warranty could be offered with higher price level.
2. Warranty type: replacement of the parts that have quality problem.
3. Warranty is not valid for below s
* Cutomer give wrong information about the order
* Force Majeure
* Wrong installation and operation
* Rust because of wrong stock & maintenance
- Our service
1. Packaging is neutral packing or customized packing
2. We will reply you within 24 hours.
3. We will also provide you with good after-sales service.
4. OEM or ODM orders are welcomed.
5. Trial orders are acceptable
6. High quality and factory price.
7. 100% ensured the quality
