419-60-35153 419-60-35152 WA250-6 WA320-6 Hydraulic Filter Cartridge

• Applicable models

• More other cartridge applicable to KOMATSU equipment

6754-71-6130 CARTRIDGE

D51EX/PX, D65EX, D65PX, D65WX, PC200, PC210, PC220, PC230NHD, PC240, PC290, PC300, PC300HD, PC300LL, PC350, PC350LL, PW140, PW148, PW160, PW180, SAA4D107E, SAA6D107E, SAA6D114E, WA200PZ

21S-60-11150 CARTRIDGE

PC02, PC03, PC08UU

23S-49-13121 CARTRIDGE

D41A, D41E, D41P, D41PF

600-411-1570 CARTRIDGE,(COLD TERRAIN SPEC.)

S6D125, S6D125E, S6D140

600-319-3841 KOMATSU

600-319-3841 CARTRIDGE (1-3/8-12UNF)

BOTTOM, BR580JG, COOLANT, D155A, D155AX, D275A, D375A, D85EX, D85PX, DRAWBAR,, HD465, HD605, HM250, HM300, HM350, HM400, HYDRAULIC, PC1250, PC1250SP, PC400, PC450, PC490, PC550, PC600, PC650, PC700, P...

23S-49-13120 CARTRIDGE

D41A, D41E, D41P, GD521A, GD611A, GD621R, GD623A, GD663A, LW250L, WA50

419-60-35153 CARTRIDGE

WA200PT, WA250, WA250PT, WA320

07950-90404 CARTRIDGE

GC50, JV25CR, JV25CW, JV25DW, JV25W, JV40CW, JV40DW, JW30

600-311-3530 CARTRIDGE

PC130, PC138, PC138US, PC88MR, PW98MR, SAA4D95LE, SAA4D95LE_5A, WA100M, WA150PZ, WA90, WINDOW

600-311-3310 KOMATSU

600-311-3310 CARTRIDGE (1-1/4)

D155AX, D65EX, D65PX, D85EX, D85PX, HD325, HD405, HM350, HM400, PC1800, PC400, PC450, PC600, PC800, PC800SE, SA6D125E, SA6D140E, SAA6D125E, SAA6D140E, SDA6D140E, WA470, WA480, WA500

6733-51-5141 CARTRIDGE,OIL

D31EX, D31PX, D37EX, D37PX, D39EX, D39PX, PC120, PC160, PC180, SAA4D102E

600-311-4110 CARTRIDGE, SEAL

PC138, PC138US, WINDOW

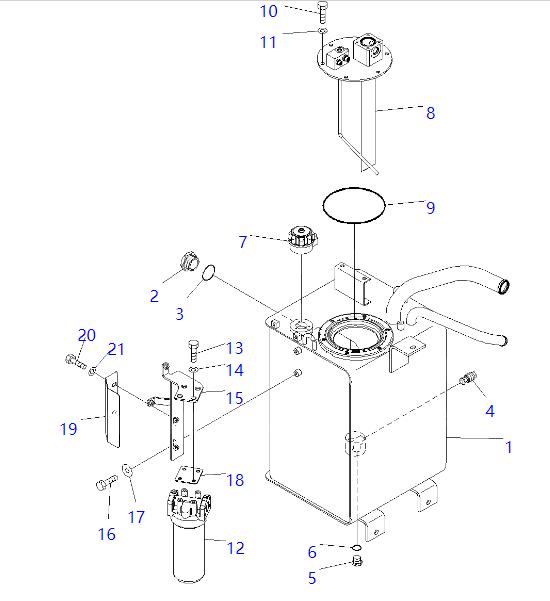

• Parts list diagram

Pos.	Part No	Qty	Parts name	Comments
1	419-60-48113	[1]	Tank, Hydraulic Oil Komatsu China
			["SN: 71806-UP"]
1	419-60-48112	[1]	Tank, Hydraulic Oil Komatsu China
			["SN: 70291-71805", "SCC: A2"]
2	421-60-11622	[1]	Gauge Komatsu	0.3 kg.
			["SN: 70291-UP"] analogs:["4216011620", "5616062530"]
3	07002-15234	[1]	O-ring Komatsu China	0.01 kg.
			["SN: 70291-UP"] analogs:["855021829", "0700205234"]
4	419-60-35220	[1]	Plug Komatsu China
			["SN: 70291-UP"]
5	07040-12412	[3]	Plug Komatsu	0.092 kg.
			["SN: 70291-UP"] analogs:["0704012414", "0704002412", "R0704012412"]
6	07002-12434	[3]	O-ring Komatsu China	0.01 kg.
			["SN: 70291-UP"] analogs:["0700202434", "0700213434"]
7	418-60-35120	[1]	Breather Komatsu	0.6 kg.
			["SN: 70291-UP"]
7.	417-60-15380	[1]	Element Komatsu	0.1 kg.
			["SN: 70291-UP"] analogs:["2076051410"]
8	419-60-48150	[1]	Cover Assembly Komatsu China
			["SN: 70291-UP"]
9	07000-15200	[1]	O-ring Komatsu	0.023 kg.
			["SN: 70291-UP"] analogs:["0700005200", "0700001520"]
10	01010-81025	[6]	Bolt Komatsu	0.36 kg.
			["SN: 70291-UP"] analogs:["0101051025", "0101651025", "801015109"]
11	01643-31032	[6]	Washer Komatsu	0.054 kg.
			["SN: 70291-UP"] analogs:["802150510", "0164331030", "0164381032", "0164371032", "0164331022", "0164321032", "0164301032", "6127212530", "802170002", "R0164331032"]
12	419-60-35142	[1]	Filter Assembly Komatsu	4.58 kg.
			["SN: 70291-UP"]
12.	419-60-35152	[1]	Cartridge Komatsu	2.58 kg.
			["SN: 70291-UP"] analogs:["4196035153"]
13	01010-81035	[4]	Bolt Komatsu	0.033 kg.
			["SN: 70291-UP"] analogs:["801015556", "01010D1035", "0101051035"]
14	203-54-56970	[4]	Washer Komatsu	0.01 kg.
			["SN: 70291-UP"]
15	419-60-48123	[1]	Bracket Komatsu China
			["SN: 70291-UP"]
16	01010-81020	[2]	Bolt Komatsu	0.161 kg.
			["SN: 70291-UP"] analogs:["801014093", "0101051020", "801015108"]
18	418-60-35190	[1]	Plate Komatsu China
			["SN: 70291-UP"]
19	416-60-35210	[1]	Cover Komatsu China
			["SN: 70291-UP"]





• Description

parts are designed precisely to work in system to meet the prime product requirements for machine performance, reliability, durability, operating costs and productivity.


• Warranty

1. Warranty Period: 3 Months' warranty from the date of arrival. Longer period of 6 months' warranty could be offered with higher price level.

2. Warranty type: replacement of the parts that have quality problem.

3. Warranty is not valid for below s
* Cutomer give wrong information about the order
* Force Majeure
* Wrong installation and operation
* Rust because of wrong stock & maintenance


• Packing & Delivery

* Strong carton or wooden box for gear components. Wooden box for gearbox assembly
* Delivery methods: By Sea, By air to local internation airport, By express like DHL TNT FEDEX
