3758597 375-8597 Lock Assy For Toolbox Fit To Excavator Storage Box Lock
-
3758597 375-8597 Lock Assy for Toolbox Fit To Excavator Storage Box Lock
- Specifiion
| Product name | Storage box lock |
| Part number | 3758597 375-8597 |
| Model | 312D 313D 318D 320D 323D 325D 330D 345D 349D |
| egory group | C A T Excavator lock |
| MOQ | 1 PCS |
| Warranty | 6 months |
| Payment term | T/T, Western Union, PAYPAL |
| Delivery time | 1-3 days after receiving the payment |
| Packing | As request or standard packing |
| Means of transport | By sea/air, DHL FEDEX UPS TNT EMS |
- Compatible models
EXCAVATOR 312D 312D L 313D 315D L 318D L 319D L 319D LN 320D 320D FM 320D GC 320D L 320D LN 323D L 323D LN 323D SA 324D 324D L 324D LN 325D 325D L 326D L 329D 329D L 329D LN 330D 330D L 330D LN 336D 336D L 336D LN 340D L 345C 345C L 345D 345D L 349D 349D L
MOBILE HYD POWER UNIT 323D L 324D LN 325D 329D L 330D 330D L 336D L 349D L erpillar
- More other lock parts fit C A T machinery
| 1W2715 LOCK-RETAINER |
| 120H, 120H ES, 120H NA, 120K, 120K 2, 12K, 12M, 12M 2, 12M 3, 12M 3 AWD, 135H, 135H NA, 140G, 140K, 140K 2, 140M, 140M 2, 140M 3, 140M 3 AWD, 160K, 160M, 160M 2, 160M 3, 160M 3 AWD, 205B, 214B, 224B, ... |
| 2A4429 LOCK-RETAINER |
| 1140, 1160, 120, 120B, 120G, 120H, 120K, 120K 2, 12E, 12G, 12H, 12H ES, 12H NA, 12K, 12M, 130G, 135H, 140B, 140G, 140H, 140H ES, 140H NA, 140K, 140K 2, 140M, 140M 2, 143H, 14E, 14G, 14H, 14H NA, 14M, ... |
| 5P0372 LOCK PIN |
| 216, 216B, 216B3, 226B, 226B3, 228, 232B, 235C, 235D, 236, 236B, 236B3, 236D, 242B, 242B3, 242D, 246C, 246D, 247, 247B, 247B3, 248, 252B, 252B3, 256C, 257B, 257B3, 257D, 259B3, 259D, 262C, 262C2, 262D... |
| 2680457 LOCK AS |
| 305.5, 307C, 312C, 312C L, 315C, 315D L, 317B LN, 318B, 318C, 319C, 319D L, 320B, 320C, 320C L, 320D, 321C, 322B L, 322B LN, 322C, 323D L, 324D L, 325B L, 325C, 325D, 325D L, 325D MH, 330B L, 330C, 33... |
| 2644501 LOCK AS |
| 345B, 345B II, 345B II MH, 345B L, 345C, 345C L, 345C MH, 345D, 345D L, 345D L VG, 349D, 349D L, 365B, 365B II, 365B L, 365C, 365C L, 365C L MH, 374D L, 385B, 385C, 385C FS, 385C L, 385C L MH, 390D, 3... |
| 1703669 LOCK |
| 320C, 325B L, 325D L, 330C, 345B II, MP15, P360, S305, VHC-30, VHS-50, VT30, VT50 |
| 1703671 LOCK PIN |
| 320C, 325B L, 325D L, 330C, 345B II, G320, MP15, P360, S305, S365B, VHC-30, VHS-50, VHS-60/3, VRG30, VT30, VT50 |
| 2363669 LOCK AS |
| 323D L, 323D LN, 324D LN, 325D, 325D L, 329D L, 330D L, 330D LN |
| 3077655 LOCK AS |
| 345C, 345C L, 345C MH, 345D, 345D L, 345D L VG, 349D, 349D L, 365C, 365C L, 365C L MH, 374D L, 385C, 385C FS, 385C L, 385C L MH, 390D, 390D L, W345C MH |
| 4225237 LOCK AS |
| 345C, 345C L, 345C MH, 345D, 345D L, 345D L VG, 349D, 349D L, 385C, 385C FS, 385C L, 385C L MH, 390D, 390D L, W345C MH |
| 1634999 LOCK AS |
| 345C L, 345D, 349D L |
| 2505180 LOCK AS |
| 345C, 345C MH, W345C MH |
| 3123972 LOCK AS |
| 308D |
| 3611148 LOCK GP-MECHANICAL |
| 307D, 307E, 308D, 308E, 308E2 CR |
| 3611133 LOCK GP-MECHANICAL |
| 303.5D |
| 3611080 LOCK GP-MECHANICAL |
| 305.5D, 305.5E, 305D CR, 305E |
| 3611067 LOCK GP-MECHANICAL |
| 304C CR, 305.5D, 305.5E, 305C CR, 305D CR, 305E |
| 2862737 LOCK AS |
| 305.5, 305.5E, 306, 306E |
| 3786595 LOCK AS-DOOR |
| M313D, M315D, M316D, M318D, M318D MH, M322D, M322D MH |
| 3346488 LOCK AS |
| 312D, 312D L, 312E, 312E L, 315D L, 316E L, 318E L, 319D L, 319D LN, 320D, 320D L, 320D LRR, 320D RR, 320E, 320E L, 320E LN, 320E LRR, 320E RR, 323D L, 323D LN, 323D SA, 323E L, 324D, 324D L, 324E, 32... |
| 3346485 LOCK AS-WINDOW |
| 312D, 312D L, 312E, 312E L, 315D L, 316E L, 318E L, 319D L, 319D LN, 320D, 320D L, 320D LRR, 320D RR, 320E, 320E L, 320E LN, 320E LRR, 320E RR, 323D L, 323D LN, 323D SA, 323E L, 324D, 324D L, 324E, 32... |
| 3987107 LOCK AS |
| 312D, 312D2, 312D2 GC, 312D2 L, 313D, 313D2, 313D2 LGP, 318D L, 318D2 L, 320D, 320D GC, 320D L, 320D2, 320D2 GC, 320D2 L, 323D L, 323D2 L, 324D, 326D L, 329D, 336D, 336D L, 336D2, 336D2 L, 340D L, 340... |
| 3853458 LOCK AS |
| 311D LRR, 311F LRR, 312D2, 312D2 GC, 312D2 L, 313D, 313D2, 313D2 LGP, 320D, 320D L, 320D2, 320D2 GC, 320D2 L, 321D LCR, 323D2 L, 324D, 326D L, 329D, 336D, 336D2, 336D2 L, 340D2 L, D3K2 LGP, D4K2 XL, D... |
| 3421110 LOCK AS |
| 312D, 315D L, 319D, 319D LN, 323D L, 323D LN, 345C, 345C L, 345D, 345D L, 345D L VG |

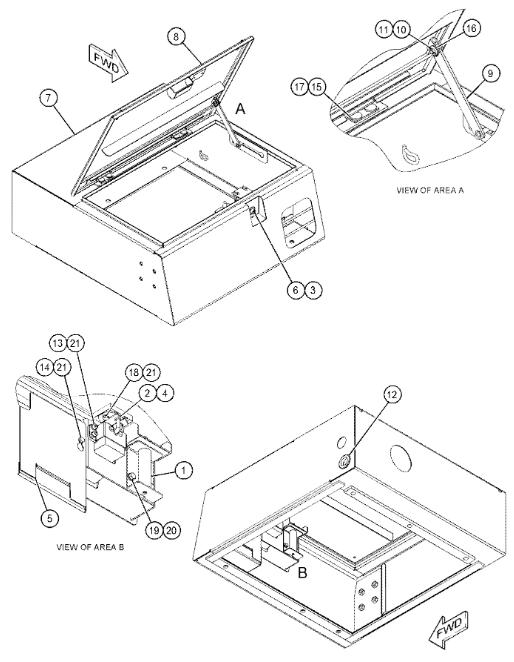

- Diagram parts list
| Pos. | Part No | Qty | Parts name | Comments |
| 1 | 236-3668 | [1] | PLUNGER AS | |
| 2 | 236-3670 | [1] | STRIKER AS | |
| 3 | 236-3671 | [1] | SEAL | |
| 4 | 236-3672 B | [1] | SHIM (0.5-MM THK) | |
| 5 | 236-3673 | [1] | SHEET | |
| 6 | 375-8597 | [1] | LOCK AS | |
| 7 | 417-2024 | [1] | BOX AS-STORAGE | |
| 121-1029 | [1] | CLIP | ||
| 8 | 417-2031 | [1] | COVER AS-BOX | |
| 237-5586 E | SEAL (228-CM) | |||
| 9 | 439-3322 | [1] | SUPPORT AS | |
| 4B-4278 | [1] | WASHER (10.2X20.5X1.6-MM THK) | ||
| 10 | 095-0843 | [1] | PIN-COTTER | |
| 11 | 096-3780 | [1] | PIN-CLEVIS | |
| 12 | 096-3872 | [1] | GROMMET | |
| 13 | 105-3487 M | [4] | BOLT-SOCKET HEAD (M6X1X20-MM) | |
| 14 | 5C-9553 M | [1] | BOLT (M6X1X16-MM) | |
| 15 | 5P-1075 | [4] | WASHER-HARD (10.2X22.5X3-MM THK) | |
| 16 | 5P-4116 | [1] | WASHER-HARD (8.8X20.5X2-MM THK) | |
| 17 | 8T-4133 M | [4] | NUT (M10X1.5-THD) | |
| 18 | 8T-4171 M | [2] | BOLT (M6X1X12-MM) | |
| 19 | 8T-4200 M | [2] | BOLT (M8X1.25X16-MM) | |
| 20 | 8T-4224 | [2] | WASHER-HARD (8.8X16X2-MM THK) | |
| 21 | 9X-8256 | [7] | WASHER (6.6X12X2-MM THK) | |
| B | USE AS REQUIRED | |||
| E | ORDER BY THE CENTIMETER | |||
| M | METRIC PART | |||
- Other parts we can supply.
1 Hydraulic parts: hydraulic pump, main valve, hydraulic cylinder, final drive, travel motor, swing machinery, swing motor etc.
2 Engine parts: engine ass’y, piston, piston ring, cylinder block, cylinder head, crankshaft, turbocharger, fuel injection pump, starting motor and alternator etc.
3 Undercarriage part: Track roller, Carrier roller, Track Link, Track shoe, Sprocket, Idler and Idler cushion etc.
4 Cab parts: operator’s cab, wiring harness, monitor, controller, seat, door etc.
5 Cooling parts: Radiator, air conditioner, compressor, after cooler etc.
6 Other parts: Service kit, swing circle, engine hood, swing joint, fuel tank, filter, boom, arm, bucket etc.
- Packaging & Delivery
Packaging Details:
1. According to orders,pack the spare parts one by one by oil paper;
2. Put them into small carton boxes one by one;
3. Put the packed small carton boxes into bigger carton boxes one by one;
4. Put the bigger carton boxes into wooden boxes if necessary especially for the shipments by sea.
5. goods is packed by oil paper and plastic bags inside
6. using wooden package.
7. we support the custom-made demand for package
Port: Huangpu
Lead Time : Within 2 days after receiving the pay me.
Shipping: Expedited Shipping(FedEx/DHL/TNT/UPS), air cargo, truck, by sea.
- Warranty
1. Warranty Period: 3 Months' warranty from the date of arrival. Longer period of 6 months' warranty could be offered with higher price level.
2. Warranty type: replacement of the parts that have quality problem.
3. Warranty is not valid for below s
* Customer give wrong information about the order
* Force Majeure
* Wrong installation and operation
* Rust because of wrong stock & maintenance
