ZGAQ02816 2194549 10022173 ZGAQ-02816 219-4549 Sun Gear Fit M315C Front Axle
-
ZGAQ02816 2194549 10022173 ZGAQ-02816 219-4549 Sun Gear Fit M315C Front Axle
- Specifiion
| Parts No | 219-4549 2194549 |
| Part name | sun gear |
| Applied excavator model | M312 M313C M315C M316C |
| egory group | Excavator front axle Parts |
| Place of origin | Made in PRC |
| Payment term | T/T, Western Union, MoneyGram |
| Packing | As request or standard packing |
| Delivery time | Stock for urgent delivery |
| Means of transport | By sea/air, DHL FEDEX TNT UPS EMS |
- Applicable models
WHEELED EXCAVATOR M312 M313C M315C M316C C A T

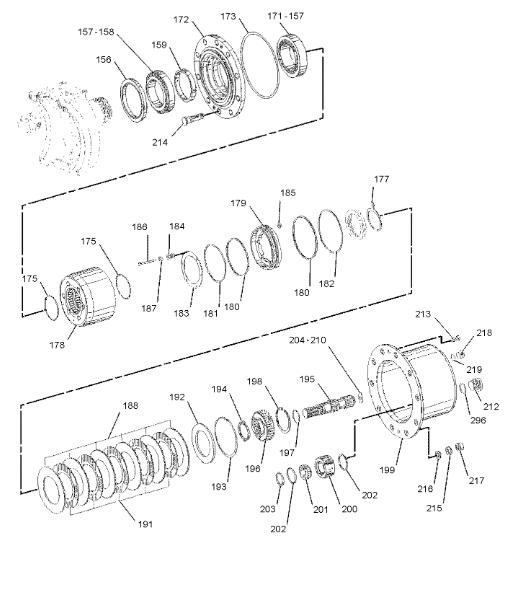

- alog parts list
| Pos. | Part No | Qty | Parts name | Comments |
| 152 | 5W-5682 | [2] | VALVE AS-PURGE (AXLE) | |
| 153 | 7X-5804 | [2] | SEAL-O-RING | |
| 154 | 121-7656 | [2] | FITTING | |
| 155 | 5W-7640 | [2] | SCREW | |
| 156 | 6R-5257 | [2] | SEAL AS | |
| 157 | 2S-0480 | [4] | CUP-TAPERED ROLLER | |
| 158 | 178-8608 | [2] | CONE-TAPERED | |
| 159 | 8U-0747 B | [2] | SPACER (109.7X120.3X15.2-MM THK) | |
| 171 | 2S-0479 | [2] | CONE-BEARING (TAPERED ROLLER) | |
| 172 | 8U-5722 | [2] | FLANGE | |
| 173 | 110-4745 | [2] | SEAL-O-RING | |
| 175 | 5W-5480 | [4] | SEAL-O-RING | |
| 177 | 5W-7320 | [2] | RING | |
| 178 | 223-7967 | [2] | GEAR | |
| 179 | 121-7640 | [2] | PISTON-BRAKE | |
| 180 | 121-7639 | [4] | RING | |
| 181 | 121-7638 | [2] | RING | |
| 182 | 121-7637 | [2] | RING-BACKUP | |
| 183 | 8U-5698 | [2] | PLATE-WASHER | |
| 184 | 8U-3592 | [12] | SPRING | |
| 185 | 8U-3594 | [12] | NUT | |
| 186 | 121-7636 M | [12] | BOLT (M6X1X40-MM) | |
| 187 | 8U-3591 | [12] | SPACER (6.5X15X7-MM THK) | |
| 188 | 121-7635 B | [12] | DISC-GEAR (2-MM THK) | |
| 121-7634 B | [12] | DISC-GEAR (2.5-MM THK) | ||
| 121-7633 B | [12] | DISC-GEAR (3-MM THK) | ||
| 191 | 121-7632 | [10] | DISC-FRICTION | |
| 192 | 5W-6404 | [2] | WASHER | |
| 193 | 121-7631 | [2] | RING-RETAINING | |
| 194 | 8U-0746 | [2] | WASHER-THRUST | |
| 195 | 219-4549 C | [2] | GEAR-SUN | |
| 196 | 219-4548 C | [2] | GEAR-CARRIER (35-TEETH) | |
| 197 | 9R-6958 | [2] | RING-RETAINING | |
| 198 | 5W-6370 | [2] | RING-RETAINING | |
| 199 | 121-7628 | [2] | HOUSING-DRIVE | |
| 200 | 9R-6950 | [8] | PINION-PLANETARY | |
| 201 | 121-7627 | [8] | BEARING-ROLLER | |
| 202 | 9R-6949 | [16] | RING | |
| 203 | 8T-2355 | [8] | RING-RETAINING | |
| B | USE AS REQUIRED | |||
| C | CHANGE FROM PREVIOUS TYPE | |||
| M | METRIC PART | |||
| Y | SEPARATE ILLUSTRATION | |||
- Other parts we can supply.
1 Hydraulic parts: hydraulic pump, main valve, hydraulic cylinder, final drive, travel motor, swing machinery, swing motor etc.
2 Engine parts: engine ass’y, piston, piston ring, cylinder block, cylinder head, crankshaft, turbocharger, fuel injection pump, starting motor and alternator etc.
3 Undercarriage part: Track roller, Carrier roller, Track Link, Track shoe, Sprocket, Idler and Idler cushion etc.
4 Cab parts: operator’s cab, wiring harness, monitor, controller, seat, door etc.
5 Cooling parts: Radiator, air conditioner, compressor, after cooler etc.
6 Other parts: Service kit, swing circle, engine hood, swing joint, fuel tank, filter, boom, arm, bucket etc.
- Packing and Shipping
1. Packaging Details
Plastic Bag & Plastic Box , Customize , Or customer's Brand
2. Delivery Time
1-2 day after received the payment
3. Type of Shipping :
EMS , DHL , TNT , UPS , FeDex , By air & By sea ..
- Advantage
1. All of our products are strictly inspected and tested before packing in factory.2. All of our products are strictly produced according to Genuine parts standard.
2. We have our own design and develop department, thus, we can produce the spare parts according to your samples.
3. We have a team of professional engineers to supply related technology help if customers needs our tech-assistant.
4. All of our products are of good quality, competitive price, comparing to other suppliers.
5. We have two big warehouses in our city, thus we have enough stock goods, which enable us make delivery in fastest efficiency.
6. We have completed transport system to shipped the goods in fast way.
7. Sample processing, material processing, material agent processing, drawing processing, OEM processing, and other processing are all available.
8. We have thousands of customers in different countries and regions around the world.
