21N6-20015 21N6-20013 21N6-20014 21N6-20016 Frame Harness HYUNDAI R210-7
Price:
Negotiable
MOQ:
1 PCS
Delivery Time:
3-7 working days
Brand:
OEM
Product Description
- 21N6-20015 21N6-20013 21N6-20014 21N6-20016 21N6-20017 Frame Harness HYUNDAI R210-7
- Specifiion
| spare parts name | Frame harness |
| Equipment Model | R210LC7 |
| Parts egory | excavator electrical harness |
| Spare parts Condition | Brand new, OEM quality |
| MOQ of order(PCS, SET) | 1 PCS |
| Parts Availability | In stock |
| Delivery Lead time | 1-3 days |
- More other harness for HYUNDAI heavy equipments
| 21N4-02810 HARNESS-CONSOLE,RH |
| R140LC-7, R140LC-7A, R140W7, R140W7A, R160LC7, R160LC7A, R170W7, R170W7A, R180LC7, R180LC7A, R200W7, R200W7A, R210LC7, R210LC7A, R210LC7H, R210NLC7, R210NLC7A, R250LC7, R250LC7A, R290LC7, R290LC7A, R3... |
| 21N8-40140 HARNESS-SIDE,RH |
| R140LC-7, R140LC-7A, R160LC7, R160LC7A, R180LC7, R180LC7A, R210LC7, R210LC7A, R210LC7H, R210NLC7, R250LC7, R250LC7A, R290LC7, R290LC7A, R300LC7, R305LC7, R320LC7, R360LC7, R360LC7A, R370LC7, R450LC7, ... |
| 21N6-32270 HARNESS-PUMP PS |
| R200W7, R200W7A, R210LC7, R210LC7A, R210LC7H, R210NLC7, R210NLC7A, R215LC7, R250LC7, R250LC7A, R290LC7, R290LC7A, R290LC7H, R300LC7, R305LC7, R320LC7, R320LC7A, R360LC7, R360LC7A, R370LC7, R450LC7, R4... |
| 21N6-10040 HARNESS-BOOM |
| R210LC7, R210LC7A, R210LC7H, R210LC9, RC215C7, RC215C7H |
| 21N6-20013 HARNESS-FRAME |
| R210LC7H |
| 21N6-20014 HARNESS-FRAME |
| R210LC7H |
| 21N4-11022 HARNESS-ENGINE FRONT |
| R210LC7H, RC215C7H |
| 21N6-20050 HARNESS-ENGINE REAR |
| R210LC7H, RC215C7H |
| 21N4-47800 HARNESS-EXT(LAMP) |
| R140LC-7, R140LC-7A, R160LC7, R160LC7A, R180LC7, R180LC7A, R210LC7, R210LC7A, R210LC7H, R210LC9, R210NLC7A, R250LC7, R250LC7A, R290LC7A, R290LC9, R300LC7, R305LC7, R320LC7, R320LC7A, R360LC7A, R370LC7... |
| 21N6-20016 HARNESS-FRAME |
| R210LC7H, RC215C7H |
| 21N6-20017 HARNESS-FRAME |
| R210LC7H |
| 21N6-21321 HARNESS ROTATE FRAME |
| R210LC7, R210LC7A, R210LC7H |
| 21N6-20014 HARNESS-FRAME |
| R210LC7H |
| 21N6-20013 HARNESS-FRAME |
| R210LC7H |
| 21W5-10020 HARNESS-PUMP PS |
| R210LC7A, R250LC7A |
| 21W5-10010 HARNESS-FRAME |
| R210LC7A |
| 21N6-21041 HARNESS-FRAME |
| R210LC7A |
| 21N8-10083 HARNESS-SIDE,RH |
| R210LC7, R305LC7 |
| 21N8-10052 HARNESS-RH,CONSOLE |
| R210LC7, R305LC7 |
| 21N8-10063 HARNESS-LH,CONSOLE |
| R210LC7 |
| 21N6-21031 HARNESS-ENGINE REAR |
| R210LC7, R210NLC7, R250LC7 |
| 21N8-10070 HARNESS-PUMP PS |
| R210LC7, R290LC7 |
| 21N6-11030 HARNESS-ENGINE REAR |
| R210LC7 |
| 21N6-10033 HARNESS-ENGINE REAR |
| R210LC7 |
| 21N4-11022 HARNESS-ENGINE FRONT |
| R210LC7H, RC215C7H |
| 21N6-20050 HARNESS-ENGINE REAR |
| R210LC7H, RC215C7H |
| 21Q8-90800 HARNESS-PREHEATER |
| R210LC9, R210LC9BC, R210NLC9, R210W-9, R250LC9, R260LC9S, R290LC9, R290LC9MH, R300LC9S, R300LC9SH, R320LC9, R360LC9, R380LC9MH, R380LC9SH, R390LC9, R430LC9, R430LC9SH |
| 21Q6-10102 HARNESS-FRAME |
| R210LC9 |
| 21Q6-10103 HARNESS-FRAME |
| R210LC9 |
| 21Q6-10104 HARNESS-FRAME |
| R210LC9 |
| 21Q6-11150 HARNESS-OVERLOAD |
| HX140L, HX160L, HX180L, HX235L, HX480L, HX520L, R1200-9, R140LC9A, R160LC9A, R180LC9A, R210LC9, R210NLC9, R210W-9, R210W9A, R210W9AMH, R210W9MH, R210W9S, R235LCR9, R235LCR9A, R250LC9, R250LC9A, R260LC... |
| 21Q8-11110 HARNESS-TWO WAY |
| HX180L, HX235L, R140LC9A, R140LC9S, R140W9S, R160LC9A, R160LC9S, R170W9S, R180LC9A, R180LC9S, R180W9S, R210LC9, R210LC9BC, R210LC9BH, R210NLC9, R210W-9, R210W9A, R210W9AMH, R210W9MH, R210W9S, R220LC9A... |
| 21Q8-11130 HARNESS-BREAKER |
| HX180L, R140LC9A, R140LC9S, R140W9S, R160LC9A, R160LC9S, R170W9S, R180LC9A, R180LC9S, R180W9S, R210LC9, R210LC9BC, R210LC9BH, R210NLC9, R210W-9, R210W9A, R210W9AMH, R210W9MH, R210W9S, R220LC9A, R220NL... |
| 21Q6-11130 HARNESS-BREAKER |
| R210LC9 |
| 21Q6-10105 HARNESS-FRAME |
| R210LC9 |
| 21Q6-10106 HARNESS-FRAME |
| R210LC9 |

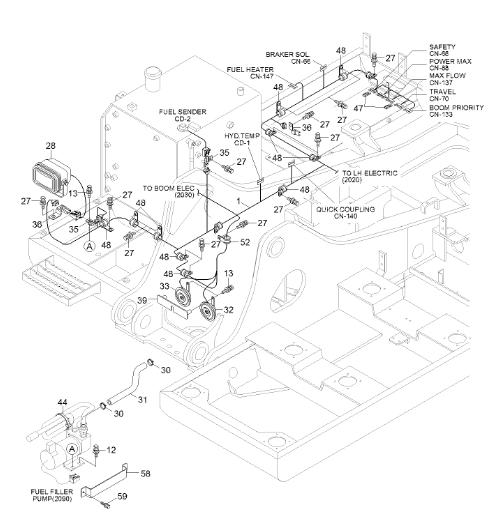

- parts list diagram
| Pos. | Part No | Qty | Parts name | Comments |
| 1 | 21N6-20013 | [1] | HARNESS-FRAME | |
| 1 | 21N6-20014 | [1] | HARNESS-FRAME | |
| 1 | 21N6-20015 | [1] | HARNESS-FRAME | |
| 1 | 21N6-20016 | [1] | HARNESS-FRAME | |
| 1 | 21N6-20017 | [1] | HARNESS-FRAME | |
| 12 | S035-082522 | [4] | BOLT-W/WASHER | |
| 13 | S035-081522 | [8] | BOLT-W/WASHER | |
| 27 | S037-102022 | [45] | BOLT-W/WASHER | |
| 28 | 21N6-20211 | [1] | WORK LAMP ASSY | |
| 28 | 21Q4-60700 | [1] | WORK LAMP ASSY | |
| 28-1. | S866-240650 | [1] | BULB | NOT SHOWN |
| 28-1. | 21Q4-60800 | [1] | BULB-H3 | NOT SHOWN |
| 30 | S520-032000 | [3] | CLAMP-HOSE | |
| 31 | 21N4-20550 | [1] | HOSE-OUTLET | |
| 32 | 21N5-10050 | [1] | HORN-LOW | |
| 32 | 21N5-10051 | [1] | HORN-LOW | |
| 33 | 21N5-10060 | [1] | HORN-HIGH | |
| 33 | 21N5-10061 | [1] | HORN-HIGH | |
| 35 | 25D1-10640 | [3] | CLIP ASSY | |
| 36 | 25D1-10650 | [4] | CLIP ASSY | |
| 39 | 21N6-20521 | [1] | PLATE-HORN | |
| 44 | E127-3158 | [1] | BAND-FUEL PUMP | |
| 47 | S593-000902 | [2] | CLIP-HARNESS | |
| 47 | S593-000802 | [2] | CLIP-HARNESS | |
| 48 | 21E9-00170 | [31] | CLIP-HARNESS | |
| 52 | S543-200002 | [10] | CLAMP-TUBE | |
| 58 | 21N6-20080 | [1] | PLATE-CLAMP | |
| 59 | S037-101552 | [2] | BOLT-W/WASHER |
- All spare parts are produced as per genuine standard system
- Advantage
1. The electrical parts are built to fit to the genuine engine system. The elctrical parts consist below parts: wire harness, sensors, switch, relay, controller, monitor, fuse, governor.
2. The engine parts are supplied strictly according to the genuine parts alog.
3. All the parts are manufactured from carefully selected materials with standard quality using standard production process.
4. Surplus stock and the various varioties of electrical parts that cover excavator for upto 70 Tons excavator. HITACHI KOMATSU HYUNDAI Vo-lvo DOOSAN KOBELCO SUMITOMO KATO JCB
- Warranty
1. Warranty Period: 3 Months' warranty from the date of arrival. Longer period of 6 months' warranty could be offered with higher price level.
2. Warranty type: replacement of the parts that have quality problem.
3. Warranty is not valid for below s
* Cutomer give wrong information about the order
* Force Majeure
* Wrong installation and operation
* Rust because of wrong stock & maintenance
- Packing & Delivery
* Strong carton or wooden box for gear components. Wooden box for gearbox assembly
* Delivery methods: By Sea, By air to local internation airport, By express like DHL TNT FEDEX
