209-64-12132 2096412132 PC850-8 Travel Motor Piping Hose
-
209-64-12132 2096412132 PC850-8 Travel Motor Piping Hose
-
Specifiion
| Appliion | KOMATSU Excavator Piping hose |
| Parts Name | hose piping, travel motor side |
| Parts No |
209-64-12132 2096412132 |
| Model | PC800-8 PC850-8 |
| Delivery time | Stock for urgent delivery |
| Condtion | Brand new, OEM quality |
| MOQ | 1 PCS |
| Design | made in PRC |
| Means of transport | By sea/air, DHL FEDEX UPS TNT Express |
| Packing | As request or standard packing |
- Applicable models
EXCAVATORS PC800 PC800SE PC850 PC850SE Komatsu
- More Hose applicable for KOMATSU heavy equipments
| 209-62-45560 Hose |
| PC800, PC800SE, PC850, PC850SE |
| 209-04-42270 Hose |
| PC800, PC800SE, PC850, PC850SE |
| 21W-62-55980 Hose |
| PC78UU |
| 21W-62-57400 Hose Assembly |
| PC78UU |
| 21W-62-59880 Hose |
| PC78UU |
| 21W-62-59870 Hose |
| PC78UU |
| 209-64-45380 Hose |
| PC800 |
| 209-62-46490 Hose |
| PC800 |
| 209-64-17340 Hose Assembly |
| PC800 |
| 07122-01015 Hose |
| PC800 |
| 209-62-43930 Hose Assembly |
| PC800 |
| 209-64-12143 Hose |
| PC800, PC800SE, PC850, PC850SE |
| CK30, CK35 |

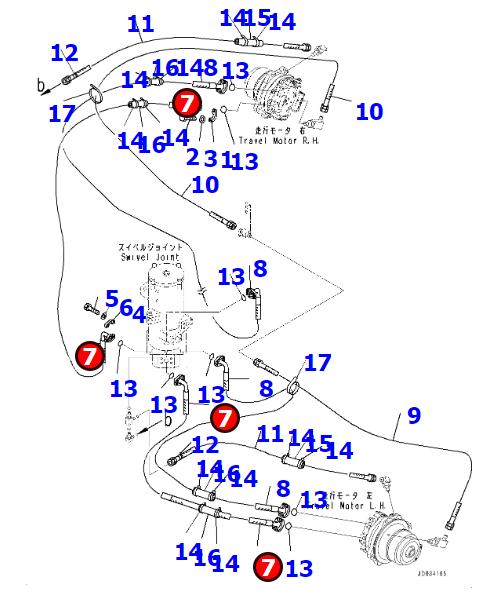

- Parts list diagram
| Pos. | Part No | Qty | Parts name | Comments |
| 1 | 209-62-64232 | [8] | Flange Komatsu China | |
| ["SN: 65001-UP"] analogs:["2096264231"] | ||||
| 2 | 07372-21240 | [16] | Bolt Komatsu | 0.052 kg. |
| ["SN: 65001-UP"] analogs:["0737201240"] | ||||
| 3 | 01643-51232 | [16] | Washer Komatsu | 0.024 kg. |
| ["SN: 65001-UP"] | ||||
| 4 | 07371-31049 | [8] | Flange, Split Komatsu | 0.12 kg. |
| ["SN: 65001-UP"] analogs:["0737121049"] | ||||
| 5 | 07372-21035 | [16] | Bolt Komatsu | 0.033 kg. |
| ["SN: 65001-UP"] | ||||
| 6 | 01643-51032 | [16] | Washer Komatsu | 0.17 kg. |
| ["SN: 65001-UP"] analogs:["R0164351032"] | ||||
| 7 | 209-64-12132 | [2] | Hose Komatsu China | |
| ["SN: 65001-UP"] | ||||
| 8 | 209-64-12143 | [2] | Hose Komatsu China | |
| ["SN: 65001-UP"] | ||||
| 9 | 209-62-42510 | [1] | Hose Komatsu China | |
| ["SN: 65001-UP"] | ||||
| 10 | 209-62-42521 | [1] | Hose Komatsu China | |
| ["SN: 65001-UP"] | ||||
| 11 | 209-62-42611 | [2] | Hose Komatsu China | |
| ["SN: 65001-UP"] | ||||
| 12. | 20Y-62-22820 | [1] | Band, Blue Komatsu | 0.01 kg. |
| ["SN: 65001-UP"] | ||||
| 13 | 07000-13032 | [8] | O-ring Komatsu China | 0.002 kg. |
| ["SN: 65001-UP"] analogs:["YM24321000350", "YM24311000320", "0700003032"] | ||||
| 14 | 08034-20536 | [16] | Band Komatsu | 0.003 kg. |
| ["SN: 65001-UP"] | ||||
| 15 | 205-62-53780 | [2] | Cover Komatsu | 0.03 kg. |
| ["SN: 65001-UP"] | ||||
| 16 | 07095-01035 | [4] | Cushion Komatsu | 0.1 kg. |
| ["SN: 65001-UP"] analogs:["21T6276840"] | ||||
-
We could supply the following spare parts
1 Hydraulic parts: hydraulic pump, main valve, hydraulic cylinder, final drive, travel motor, swing machinery, swing motor etc.
2 Engine parts: engine ass’y, piston, piston ring, cylinder block, cylinder head, crankshaft, turbocharger, fuel injection pump, starting motor and alternator etc.
3 Undercarriage part: Track roller, Carrier roller, Track Link, Track shoe, Sprocket, Idler and Idler cushion etc.
4 Cab parts: operator’s cab, wiring harness, monitor, controller, seat, door etc.
5 Cooling parts: Radiator, air conditioner, compressor, after cooler etc.
6 Other parts: Service kit, swing circle, engine hood, swing joint, fuel tank, filter, boom, arm, bucket etc.
- Packing and Shipping
Packing Details :
inner packing : plastic film for wrapping
external packing : wooden
Shipping :
within 3 days after received the payment , by air or by express or by sea on the basis of the
quantity and emergency circumstances.
1. By Couriers: DHL, UPS, FEDEX, TNT are the main courier companies we are cooperated,
2. By Air: Delivery from the Guangzhou air port to customer's destination city air port.
3. By Sea: Delivery from the Huangpu port .
- Product Warranty
1. Warranty Period: 3 Months' warranty from the date of arrival. Longer period of 6 months' warranty could be offered with higher price level.
2. Warranty type: replacement of the parts that have quality problem.
3. Warranty is not valid for below s
* Cutomer give wrong information about the order
* Force Majeure
* Wrong installation and operation
* Rust because of wrong stock & maintenance
- Our service
1. Packaging is neutral packing or customized packing
2. We will reply you within 24 hours.
3. We will also provide you with good after-sales service.
4. OEM or ODM orders are welcomed.
5. Trial orders are acceptable
6. High quality and factory price.
7. 100% ensured the quality
