5177464 Bell Housing Holland Tractor Spare Parts Fit For TD5030 TD5050
- 5177464 Bell Housing NEW. HOLLAND Tractor Spare Parts Fit For TD5030 TD5050
- Specifiion
| Name | Bell Housing |
| Parts No | 5177464 |
| Machine Model | TD5030 TD5050 TN55 TN55D TN55S TN60A |
| egory |
Power Shift Servo for Differential Lock PTO - Clutch Engagement |
| Lead time | 1-3 DAYS |
| Quality | Brand new, OEM quality |
| MOQ | 1 PCS |
| Means of transport | By sea/air, DHL FEDEX UPS TNT EMS |
| Packing | As request or standard packing |
- Compatible models
TRACTORS TD5030 TD5050 TN55 TN55D TN55S TN60A TN60DA TN60SA TN60VA TN65 TN65D TN65F TN65S TN65V TN70 TN70A TN70A TURF TN70D TN70DA TN70F TN70NA TN70S TN70SA TN70VA TN75 TN75A TN75D TN75DA TN75F TN75FA TN75S TN75SA TN75V TN75VA TN80F TN85A TN85DA TN85FA TN85SA TN90F TN95A TN95DA TN95F TN95FA TN95NA TN95VA New.Holland
- More other bell housing parts fit for NEW. HOLLAND machine
| 47123536 BELL HOUSING |
| T4050, T4.105, T4.110, T4.115, TN60DA, T5.105, TN70DA, TN75DA, T4.120, TN85DA, T5.115, TN95DA, T5.95, T5040, T5050, T4.75, T5060, T5070, T4.85, T4.90, T4020, T4.95, T4030, T4.100, T4040 |
| 87558414 BELL HOUSING |
| T4040F, T4.100F, T4050, T4030N, T4050F, T4040N, T4.105F, T4060F, T4.110F, T4050N, T4.105V, TN60DA, T4.75F, T4060N, TN60VA, T4.80F, T4020V, TN75DA, TN75SA, TN85DA, T4.85F, T4030V, TN95DA, T4.90F, TN70D... |
| 5179503 BELL HOUSING |
| T4030N, TN55D, T4040N, TN65V, T4050N, TN75V, T4060N, TN65F, TN70F, TN75F, TN80F, TN90F, TN55, TN95F, TN75FA, TN85FA, TN95FA, TN70NA, TN95NA, TN55S |
| 87718795 BELL HOUSING |
| T7.210, T7.165, T7.175, T6070, T7.190, T6080, T6090, T6030, T7.170, T7.185, T6050, T1804B, T7.200 |
| 87677179 BELL HOUSING |
| T6050, T6080, T6030, T6070 |
| 87383401 BELL HOUSING |
| T5050, T5.115, T5060, T5070, T5.95, T5.105, T5040 |
| 47136592 BELL HOUSING |
| T6.175, T6050, T6.180, T6060, T5.105, T5.110, T6070, T5.115, T5.120, T5.95, T6010, T6020, T6.120, T6.125, T6030, T6.140, T6.145, T6.150, T6040, T6.155, T6.160, T6.165 |
| 87558414 BELL HOUSING |
| T4040F, T4.100F, T4050, T4030N, T4050F, T4040N, T4.105F, T4060F, T4.110F, T4050N, T4.105V, TN60DA, T4.75F, T4060N, TN60VA, T4.80F, T4020V, TN75DA, TN75SA, TN85DA, T4.85F, T4030V, TN95DA, T4.90F, TN70D... |
| 47123536 BELL HOUSING |
| T4050, T4.105, T4.110, T4.115, TN60DA, T5.105, TN70DA, TN75DA, T4.120, TN85DA, T5.115, TN95DA, T5.95, T5040, T5050, T4.75, T5060, T5070, T4.85, T4.90, T4020, T4.95, T4030, T4.100, T4040 |

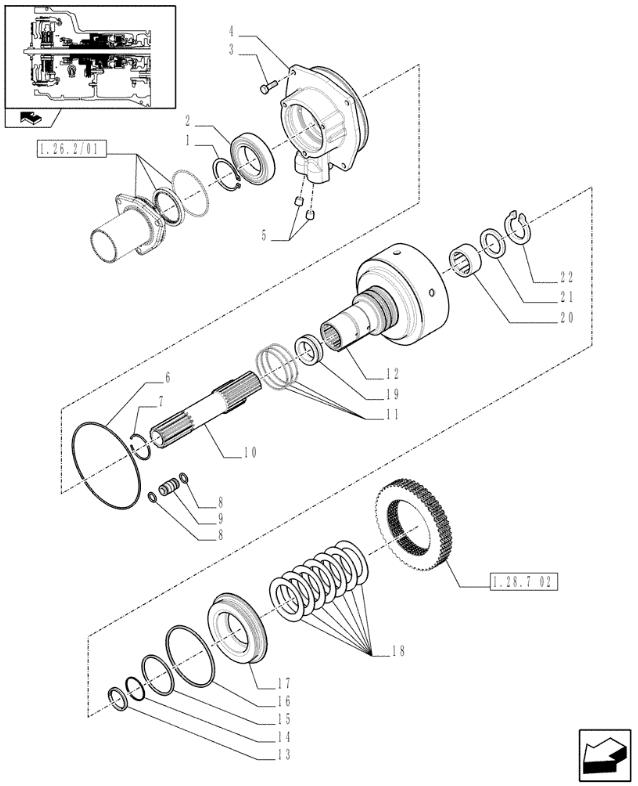

- alog parts list
| Pos. | Part No | Qty | Parts name | Comments |
| 1 | 11069576 | [1] | SNAP RING,M55, Ext | TTF Superseded by part number: 327911 |
| 2 | 5122846 | [1] | BALL BEARING,55mm ID x 90mm OD x 18mm W | BAS |
| 3 | 16043621 | [4] | BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd | CAS Superseded by part number: |
| 4 | 5177559 | [1] | COVER | JES Incl.5 |
| 5 | 10269404 | [2] | PLUG,M12 x 1.5 | BAS |
| 6 | 14462180 | [1] | O-RING,152.1mm ID x 2.62" Width | JES |
| 7 | 13421976 | [1] | SNAP RING,M45, Int | JES |
| 8 | 5174041 | [4] | O-RING,2.62mm Thk x 13.1mm ID, 70 Duro | JES |
| 9 | 84286494 | [2] | HYD CONNECTOR | TTF |
| 10 | 84335414 | [1] | SHAFT | TTF |
| 11 | 83911795 | [3] | SEAL,Split, 70.76mm ID x 76.2mm OD x 2.13mm Thk | BAS |
| 12 | 5177464 | [1] | BELL HOUSING | JES Superseded by part number: 87558414, 87558416, 87528273 |
| 13 | 5173674 | [1] | GASKET,35mm ID x 42mm OD x 4mm Thk | JES |
| 14 | 5124473 | [1] | SNAP RING,1.5mm Thk, Int | JES |
| 15 | 5168345 | [1] | SEAL,67.55mm ID x 75mm OD x 3.2mm Thk | BAS |
| 16 | 5172413 | [1] | SLIPPER | JES |
| 17 | 5179794 | [1] | PISTON | JES |
| 18 | 5168346 | [7] | BELLEVILLE WASHER,56mm ID x 80mm OD x 3.3mm Thk | BAS |
| 19 | 87528273 | [1] | OIL SEAL | JES |
| 20 | 5181211 | [1] | BEARING ASSY,Needle, 25mm ID x 32mm OD x 12mm W | JES |
| 21 | 5181057 | [1] | THRUST WASHER,25.1mm ID x 32mm OD x 4mm Thk | JES |
| 22 | 5180152 | [1] | CIRCLIP,27.8mm ID | JES |
- We could supply the following spare parts
1 Hydraulic parts: hydraulic pump, main valve, hydraulic cylinder, final drive, travel motor, swing machinery, swing motor etc.
2 Engine parts: engine ass’y, piston, piston ring, cylinder block, cylinder head, crankshaft, turbocharger, fuel injection pump, starting motor and alternator etc.
3 Undercarriage part: Track roller, Carrier roller, Track Link, Track shoe, Sprocket, Idler and Idler cushion etc.
4 Cab parts: operator’s cab, wiring harness, monitor, controller, seat, door etc.
5 Cooling parts: Radiator, air conditioner, compressor, after cooler etc.
6 Other parts: Service kit, swing circle, engine hood, swing joint, fuel tank, filter, boom, arm, bucket etc.
-
Advantage
1. Offer Top quality & competitive products
2. Support 12-month warranty
3. 100% tested before shipping
4. Delivery in time
5. A wide range of Oil Pressure Sensor, Fuel Tank Level Sensor, Temperature Sensor, Speed Sensor for excavator
6. More than 15 years production and 11 years foreign trade experience
7. Professional QC team
8. Best sales team, 24 hours service
- Packing and Shipping
Packing Details :
inner packing : plastic film for wrapping
external packing : wooden
Shipping :
within 3 days after received the payment , by air or by express or by sea on the basis of the
quantity and emergency circumstances.
1. By Couriers: DHL, UPS, FEDEX, TNT are the main courier companies we are cooperated,
2. By Air: Delivery from the Guangzhou air port to customer's destination city air port.
3. By Sea: Delivery from the Huangpu port .
