356-8350 3568350 Rocker Switch Track-Type Tractor Parts Fit For C4.4 D6K2 LGP
- 356-8350 3568350 Rocker Switch Track-Type Tractor Parts Fit For C4.4 D6K2 LGP
- Specifiion
| Name | Rocker Switch |
| Parts No | 356-8350 3568350 |
| Machine Model | D6K2 D6K2 LGP |
| egory | Cab Parts |
| Lead time | 1-3 DAYS |
| Quality | Brand new, OEM quality |
| MOQ | 1 PCS |
| Means of transport | By sea/air, DHL FEDEX UPS TNT EMS |
| Packing | As request or standard packing |
- Compatible models
TRACK-TYPE TRACTOR D6K2 D6K2 LGP erpillar
- More other switch parts fit for C A T Machine
| 3980940 SWITCH GP-MAGNETIC |
| 12H, 24M, 311D LRR, 3126B, 312D, 312D L, 314D LCR, 315D L, 319D, 319D L, 319D LN, 320D, 320D FM, 320D FM RR, 320D L, 320D LN, 320D LRR, 320D RR, 321D LCR, 322C, 322C FM, 323D L, 323D LN, 324D, 324D FM... |
| 2418368 SWITCH GP-MAGNETIC |
| 1090, 1190, 1190T, 120H, 120H ES, 120H NA, 120K, 120K 2, 120M, 120M 2, 1290T, 12H, 12H ES, 12H NA, 12K, 12M, 12M 2, 12M 3, 12M 3 AWD, 135H, 135H NA, 1390, 140H, 140H ES, 140H NA, 140K, 140K 2, 140M, 1... |
| 1060107 SWITCH GP-ROTARY |
| 307D, 308D, 308E2 CR, 311B, 311C, 311D LRR, 312B, 312B L, 312C, 312C L, 312D, 312D L, 314C, 314D LCR, 315B, 315B FM L, 315B L, 315C, 315D L, 317B LN, 318B, 318C, 319C, 319D, 320B, 320B FM LL, 320B L, ... |
| 2095582 SWITCH GP-MAGNETIC |
| 1090, 1190, 1190T, 1290T, 12H, 12M, 1390, 140G, 140M, 140M 2, 160M, 160M 2, 2290, 2390, 2391, 2491, 24M, 2590, 311D LRR, 3126B, 312D, 312D L, 313D, 314D CR, 314D LCR, 315D L, 318D L, 319D L, 319D LN, ... |
| 7n0718 SWITCH AS-DISCONNECT |
| 1090, 1190, 1190T, 120, 120B, 120G, 120H, 120H ES, 120H NA, 120K, 120K 2, 120M, 120M 2, 1290T, 12G, 12H, 12H ES, 12H NA, 12K, 12M, 12M 2, 12M 3, 12M 3 AWD, 130G, 135H, 135H NA, 1390, 140B, 140G, 140H,... |
| 1496371 SWITCH AS-PRESSURE |
| 120K, 120K 2, 120M, 120M 2, 12K, 12M, 12M 2, 12M 3, 12M 3 AWD, 140K, 140K 2, 140M, 140M 2, 140M 3, 140M 3 AWD, 14M, 160K, 160M, 160M 2, 160M 3, 160M 3 AWD, 16M, 236D, 242D, 246C, 246D, 24M, 256C, 257D... |
| 2130677 SWITCH AS-LIQUID LEVEL |
| 1090, 1190, 1190T, 120M 2, 1290T, 1390, 2290, 2384C, 2390, 2391, 2484C, 2491, 2590, 2864C, 311D LRR, 3126B, 312B L, 312C, 312C L, 312D, 312D L, 312D2, 312D2 GC, 312D2 L, 312E, 312E L, 313D, 313D2, 313... |
| 3553148 SWITCH AS-PRESSURE |
| 120K, 120K 2, 120M, 120M 2, 12K, 12M, 12M 2, 12M 3, 12M 3 AWD, 140K, 140K 2, 140M, 140M 2, 140M 3, 140M 3 AWD, 14M, 160K, 160M, 160M 2, 160M 3, 160M 3 AWD, 24M, 525D, 535D, 545D, 555D, 583T, 587T |
- alog parts list

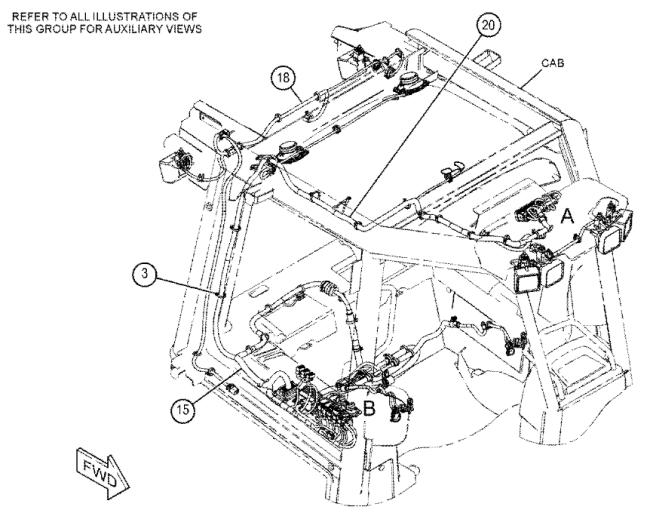

| Pos. | Part No | Qty | Parts name | Comments |
| 1 | 3S-2093 | [20] | STRAP-CABLE | |
| 2 | 6T-7695 | [2] | SPEAKER AS-RADIO | |
| 3 | 7K-1181 | [44] | STRAP-CABLE | |
| 4 | 228-6089 | [3] | PLUG (ROCKER SWITCH) | |
| 5 | 246-4311 | [1] | GUARD (SWITCH) | |
| 6 | 251-1191 | [1] | SWITCH AS-ROCKER (24-VOLT)(FRONT WIPER) | |
| 7 | 251-1194 | [1] | SWITCH AS-ROCKER (24-VOLT)(REAR WIPER) | |
| 8 | 251-5848 | [1] | SWITCH AS-ROCKER (24-VOLT)(FLOODLIGHT) | |
| 9 | 254-8155 Y | [4] | LAMP GP-FLOOD (24-VOLT)(ROPS, FRONT, REAR) | |
| 10 | 256-4965 | [1] | SWITCH AS-ROCKER (24-VOLT)(LEFT SIDE WIPER) | |
| 10A. | 256-4965 | [1] | SWITCH AS-ROCKER (24-VOLT)(RIGHT SIDE WIPER) | |
| 11 | 340-7161 | [1] | CONVERTER-POWER (24-VOLT TO 12-VOLT) | |
| 12 | 346-9593 Y | [2] | LAMP GP-FLOOD (24-VOLT)(CAB ROOF, FRONT) | |
| 13 | 356-8350 | [1] | SWITCH AS-ROCKER (24-VOLT)(PARKING BRAKE) | |
| 14 | 356-8351 | [1] | SWITCH AS-ROCKER (24-VOLT)(IMPLEMENT LOCKOUT) | |
| 15 | 358-2691 Y | [1] | HARNESS AS-LIGHTING | |
| 16 | 425-8949 | [1] | SWITCH AS-ROCKER (TRACTION CONTROL) | |
| 17 | 431-4413 | [1] | SWITCH AS (THROTTLE) | |
| 18 | 433-0097 Y | [1] | HARNESS AS-REAR LIGHTING | |
| 19 | 471-6952 Y | [1] | WIRING GP-SEAT | |
| 20 | 485-7485 Y | [1] | HARNESS AS-CAB | |
| 21 | 154-8079 | [8] | NUT-RETAINER | |
| 22 | 156-6175 | [1] | CLIP (LADDER) | |
| 23 | 4V-4125 | [1] | CLIP | |
| 24 | 5P-8439 | [2] | GROMMET | |
| 25 | 7I-2272 M | [2] | BOLT (M5X0.8X12-MM) | |
| 26 | 8C-8451 M | [1] | BOLT (M6X1X40-MM) | |
| 27 | 8T-0289 M | [2] | BOLT (M5X0.8X20-MM) | |
| 28 | 8T-0328 | [2] | WASHER-HARD (5.5X10X1-MM THK) | |
| 29 | 8T-4121 | [1] | WASHER-HARD (11X21X2.5-MM THK) | |
| 30 | 8T-4137 M | [1] | BOLT (M10X1.5X20-MM) | |
| 31 | 8T-4138 M | [4] | BOLT (M6X1X20-MM) | |
| 32 | 9X-1046 M | [8] | SCREW (M4X0.7X18-MM) | |
| 33 | 9X-2045 M | [2] | SCREW-TRUSS HEAD (M6X1X20-MM) | |
| 34 | 9X-8256 | [7] | WASHER (6.6X12X2-MM THK) | |
| M | METRIC PART | |||
| Y | SEPARATE ILLUSTRATION |
