255-1986 2551986 Hose Excavator Spare Parts For C9 330D
- 255-1986 2551986 Hose Excavator Spare Parts For C9 330D
- Specifiion
| Name | Hose |
| Parts No | 255-1986 2551986 |
| Machine Model | 330D 330D L 336D 336D L 336D LN 336D2 |
| egory | Lines Gp-Return |
| Lead time | 1-3 DAYS |
| Quality | Brand new, OEM quality |
| MOQ | 1 PCS |
| Means of transport | By sea/air, DHL FEDEX UPS TNT EMS |
| Packing | As request or standard packing |
- Compatible models
EXCAVATOR 330D 330D L 336D 336D L 336D LN 336D2 336D2 L 340D L 340D2 L
MOBILE HYD POWER UNIT 330D 336D L er.pillar.
- More other hose parts fit for C A T machine
| 2352470 HOSE AS |
| 365C, 365C L, 365C L MH, 374D L, 385C, 385C FS, 385C L, 385C L MH, 390D, 390D L |
| 2181223 HOSE AS |
| 345C L, 365B, 365B II, 365B L, 365C, 365C L, 365C L MH |
| 2125334 HOSE AS |
| 365B, 365B II, 365B L, 365C, 365C L, 365C L MH |
| 3402958 HOSE AS |
| 336E, 336E L, 336E LN, 390D, 390D L |
| 2181230 HOSE AS |
| 365B, 365B II, 365C, 365C L, 385B, 385C, 385C L |
| 2125540 HOSE AS |
| 375, 385B, 385C, 385C L |
| 2125539 HOSE AS |
| 375, 385B, 385C, 385C L |
| 2181227 HOSE AS |
| 328D LCR, 365B, 365B II, 365B L, 365C, 365C L |
| 2125330 HOSE AS |
| 330C, 365B, 365B II, 365B L, 365C L MH |
| 2125328 HOSE AS |
| 365B, 365B II, 365B L, 365C, 365C L |
| 1960498 HOSE AS |
| 325C, 330C, 330C FM, 330C L |

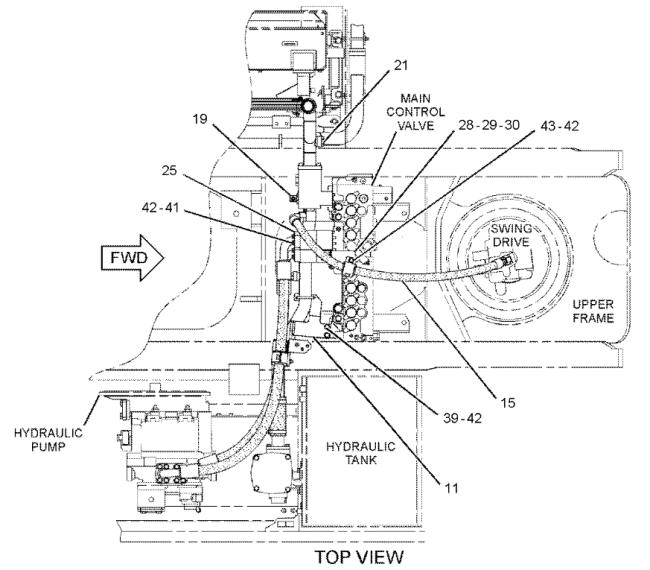

- alog parts list
| Pos. | Part No | Qty | Parts name | Comments |
| 1 | 8T-4956 M | [1] | BOLT (M12X1.75X35-MM) | |
| 2 | 173-4816 | [1] | SUPPORT AS | |
| 3 | 190-7745 | [1] | VALVE GP-CHECK (OIL COOLER BYPASS) | |
| 4 | 194-0242 | [2] | FLANGE | |
| 5 | 194-0243 | [1] | FLANGE | |
| 6 | 144-0367 | [2] | CLAMP-HOSE | |
| 7 | 227-0428 | [1] | HOSE | |
| 8 | 255-1971 | [1] | TUBE AS | |
| 9 | 289-5347 | [1] | TUBE AS | |
| 10 | 255-1979 | [1] | TUBE AS | |
| 11 | 255-1981 | [1] | SUPPORT AS | |
| 12 | 292-7223 | [1] | FLANGE | |
| 13 | 255-1986 I | [1] | HOSE AS | |
| 14 | 255-1989 I | [1] | HOSE AS | |
| 15 | 275-1675 I | [1] | HOSE AS | |
| 16 | 096-4883 M | [2] | LOCKNUT (M10X1.5-THD) | |
| 17 | 101-7402 M | [12] | BOLT-SOCKET HEAD (M12X1.75X30-MM) | |
| 18 | 148-8357 | [1] | ELBOW AS | |
| 5K-9090 | [1] | SEAL-O-RING | ||
| 6V-9008 | [1] | ELBOW | ||
| 7M-8485 | [1] | SEAL-O-RING | ||
| 19 | 148-8364 | [1] | ELBOW AS | |
| 3K-0360 | [1] | SEAL-O-RING | ||
| 6V-8398 | [1] | SEAL-O-RING | ||
| 6V-8625 | [1] | ELBOW | ||
| 20 | 148-8382 | [1] | ELBOW AS | |
| 3D-2824 | [1] | SEAL-O-RING | ||
| 7J-9108 | [1] | SEAL-O-RING | ||
| 8T-0404 | [1] | ELBOW | ||
| 21 | 164-4180 | [1] | PLUG AS | |
| 7M-8485 | [1] | SEAL-O-RING | ||
| 9S-4181 | [1] | PLUG (1-5/16-12-THD) | ||
| 22 | 164-5616 | [1] | PLUG AS | |
| 2S-4078 | [1] | SEAL-O-RING | ||
| 9S-6130 | [1] | PLUG | ||
| 23 | 1P-3703 | [4] | SEAL-RECTANGULAR | |
| 24 | 1P-3704 | [4] | SEAL-RECTANGULAR | |
| 25 | 1P-5767 | [4] | FLANGE-HALF | |
| 26 | 4J-0524 | [1] | SEAL-O-RING | |
| 27 | 4J-0527 | [1] | SEAL-O-RING | |
| 28 | 5P-7468 | [1] | CLIP (SLOT) | |
| 29 | 5P-7469 | [1] | CLIP (TAB) | |
| 30 | 5P-8444 | [1] | GROMMET (37-MM ID) | |
| 31 | 6J-2680 | [2] | SEAL-O-RING | |
| 32 | 6V-1572 | [2] | CLIP (SLOT) | |
| 33 | 6V-1573 | [2] | CLIP (TAB) | |
| 34 | 6V-1875 | [2] | GROMMET | |
| 35 | 7X-2546 M | [4] | BOLT (M10X1.5X180-MM) | |
| 36 | 7Y-5247 M | [1] | U-BOLT (M10X1.5-THD) | |
| 37 | 105-3489 M | [16] | BOLT-SOCKET HEAD (M12X1.75X80-MM) | |
| 38 | 8T-4121 | [8] | WASHER-HARD (11X21X2.5-MM THK) | |
| 39 | 8T-4139 M | [4] | BOLT (M12X1.75X30-MM) | |
| 40 | 8T-4186 M | [2] | BOLT (M10X1.5X40-MM) | |
| 41 | 8T-4194 M | [8] | BOLT (M12X1.75X50-MM) | |
| 42 | 8T-4223 | [13] | WASHER-HARD (13.5X25.5X3-MM THK) | |
| I | REFER TO HYDRAULIC INFORMATION SYSTEM | |||
| M | METRIC PART |
- We could supply the following spare parts
1 Hydraulic parts: hydraulic pump, main valve, hydraulic cylinder, final drive, travel motor, swing machinery, swing motor etc.
2 Engine parts: engine ass’y, piston, piston ring, cylinder block, cylinder head, crankshaft, turbocharger, fuel injection pump, starting motor and alternator etc.
3 Undercarriage part: Track roller, Carrier roller, Track Link, Track shoe, Sprocket, Idler and Idler cushion etc.
4 Cab parts: operator’s cab, wiring harness, monitor, controller, seat, door etc.
5 Cooling parts: Radiator, air conditioner, compressor, after cooler etc.
6 Other parts: Service kit, swing circle, engine hood, swing joint, fuel tank, filter, boom, arm, bucket etc.
-
Advantage
1. Offer Top quality & competitive products
2. Support 12-month warranty
3. 100% tested before shipping
4. Delivery in time
5. A wide range of Oil Pressure Sensor, Fuel Tank Level Sensor, Temperature Sensor, Speed Sensor for excavator
6. More than 15 years production and 11 years foreign trade experience
7. Professional QC team
8. Best sales team, 24 hours service
- Packing and Shipping
Packing Details :
inner packing : plastic film for wrapping
external packing : wooden
Shipping :
within 3 days after received the payment , by air or by express or by sea on the basis of the
quantity and emergency circumstances.
1. By Couriers: DHL, UPS, FEDEX, TNT are the main courier companies we are cooperated,
2. By Air: Delivery from the Guangzhou air port to customer's destination city air port.
3. By Sea: Delivery from the Huangpu port .
