6V-0314 6V0314 Bolt Tractor Spare Parts Fit For 3304 3412C 657E
- 6V-0314 6V0314 Bolt Tractor Spare Parts Fit For 3304 3412C 657E
- Specifiion
| Name | Bolt |
| Parts No | 6V-0314 6V0314 |
| Machine Model | 621B 621E 623B 623E 627B 627E 633D 637D |
| egory | Transfer Gear |
| Lead time | 1-3 DAYS |
| Quality | Brand new, OEM quality |
| MOQ | 1 PCS |
| Means of transport | By sea/air, DHL FEDEX UPS TNT EMS |
| Packing | As request or standard packing |
- Compatible models
HYDRAULIC CONTROL 173B
MOTOR GRADER 120G 120H 120H ES 120H NA 120K 120K 2 135H 135H NA
TRACK LOADER 943 953
TRACK-TYPE TRACTOR D11R D11T D3B D7G D7H D9H
WHEEL SCRAPER 621E 623E 627B 627E 637D 637E 657B 657E
WHEEL TRACTOR 621B 621E 623B 623E 627B 627E 633D 637D 637E 639D 641B 651B 651E 657B 657E er.pillar.
- More other bolt parts fit for C A T machine
| 0998110 BOLT-SOCKET HEAD |
| 330, 330 FM L, 330 L, 330B, 330B L, 330D, 330D FM, 330D L, 330D LN, 330D MH, 336D, 336D L, 336D LN, 336D2, 336D2 L, 340D L, 340D2 L, E300B, M330D, W330B |
| 1440805 BOLT-TRACK |
| 345B II, 345C, 345C L, 365B, 365B II, 365B L, 365C, 365C L, 365C L MH, 374D L, 374F L, 385C |
| 4F3664 BOLT |
| 120G, 12E, 140B, 14E |
| 6B7708 BOLT |
| 120, 12E |
| 4F3665 BOLT |
| 16 |
| 6D8671 BOLT |
| 12F, 14E, 14G, 16 |
| 3D9502 BOLT (16.06" LONG) |
| 120B, 12E, 140, 140B |
| 3B5752 BOLT (6.5" LONG) |
| 120B, 12E, 140B |
| 2G9632 BOLT |
| 14G, 16G |
| 2Y1102 BOLT |
| 120B |
| 4471727 BOLT |
| 365C, 365C L, 374D L, 374F L, 385C, 385C FS, 385C L, 390D, 390D L |

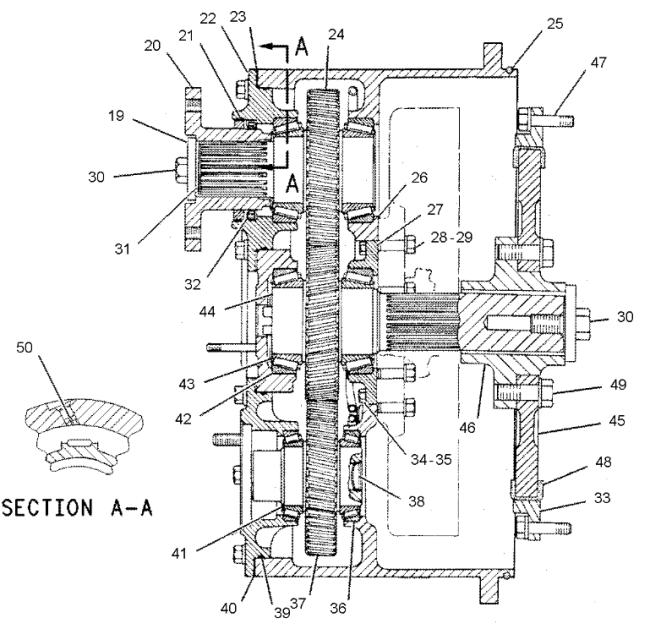

- alog parts list
| Pos. | Part No | Qty | Parts name | Comments |
| 1 | 5D-6361 | [2] | CAGE AS | |
| 2 | 2D-8822 | [4] | STUD-TAPERLOCK (5/8-11X2.36-IN) | |
| 3 | 8C-4436 | [18] | BOLT (1/2-13X1.375-IN) | |
| 4 | 8T-4223 | [33] | WASHER-HARD (13.5X25.5X3-MM THK) | |
| 5 | 6K-4936 | [3] | BOLT-LOCKING (3/8-16X0.625-IN) | |
| 6 | 9S-1350 | [3] | CLIP | |
| 7 | 8T-8919 | [15] | BOLT (1/2-13X1.75-IN) | |
| 8 | 6D-7052 | [1] | TUBE | |
| 9 | 6D-7053 | [1] | TUBE | |
| 10 | 5P-4452 | [2] | ELBOW-AIR BRAKE | |
| 11 | 5P-4455 | [1] | CONNECTOR-AIR BRAKE | |
| 12 | 6D-7049 | [1] | ADAPTER | |
| 13 | 6D-7051 | [1] | TUBE | |
| 14 | 3H-4190 | [1] | PLUG-DRAIN (TRANSFER GEAR GP) | |
| 9S-1369 | [1] | GASKET | ||
| 15 | 9S-4191 | [2] | PLUG (9/16-18-THD) | |
| 3J-1907 | [2] | SEAL-O-RING | ||
| 16 | 5P-4424 | [1] | ELBOW-AIR BRAKE | |
| 17 | 151-5214 | [1] | CAASE-TRANSFER | |
| 18 | 5M-2894 | [3] | WASHER-HARD (10.2X18.5X2.5-MM THK) | |
| 19 | 2G-0493 | [2] | WASHER-RETAINING (20X82.55X11-MM THK) | |
| 20 | 9D-9090 | [1] | YOKE AS | |
| 21 | 5D-6285 | [1] | RING-SEAL | |
| 22 | 5D-6283 | [1] | CAGE-BEARING | |
| 23 | 5D-6279 B | [2] | SHIM (0.127-MM THK) | |
| 24 | 6G-3231 | [1] | GEAR (36-TEETH) | |
| 25 | 5D-6428 | [1] | SEAL-O-RING | |
| 26 | 5D-6281 B | [2] | SHIM (0.127-MM THK) | |
| 27 | 6D-7853 | [1] | CAGE-BEARING | |
| 28 | 030-9620 C | [8] | BOLT (1/2-13X1.45-IN) | |
| 29 | 5P-7213 | [8] | WASHER-HARD (13.5X20.5X2-MM THK) | |
| 30 | 5P-6712 | [2] | BOLT-LOCKING (3/4-10X3-IN) | |
| 31 | 9D-2734 | [1] | GASKET | |
| 32 | 8S-7928 | [1] | SEAL-LIP TYPE | |
| 33 | 6W-3662 CJ | [1] | RING-DRIVE | |
| 34 | 2J-3118 | [4] | BOLT-LOCKING (3/8-16X1.25-IN) | |
| 35 | 5M-2894 | [4] | WASHER-HARD (10.2X18.5X2.5-MM THK) | |
| 36 | 5P-9532 | [4] | CUP-BEARING | |
| 37 | 2G-7243 | [2] | GEAR AS (36-TEETH) | |
| 38 | 2P-4519 | [1] | PLUG-CUP | |
| 39 | 1H-8278 | [3] | SEAL-O-RING | |
| 40 | 5D-6282 B | [4] | SHIM (0.127-MM THK) | |
| 41 | 5P-9531 | [4] | CONE-BEARING | |
| 42 | 6D-1138 | [4] | CUP-BEARING | |
| 43 | 6D-1137 | [4] | CONE-BEARING | |
| 44 | 6G-3149 | [1] | GEAR (36-TEETH)(36 TEETH) | |
| 45 | 6W-1326 C | [1] | SPIDER-DRIVE | |
| 46 | 8W-5615 C | [1] | FLANGE | |
| 47 | 6V-0314 C | [12] | BOLT-LOCKING (1/2-13X2-IN) | |
| 8T-4223 | [12] | WASHER-HARD (13.5X25.5X3-MM THK) | ||
| 48 | 6T-8526 C | [26] | BLOCK-COUPLING | |
| 49 | 6K-0137 C | [8] | BOLT-LOCKING (5/8-11X2-IN) | |
| 5P-8247 C | [8] | WASHER-HARD (17X32X3.5-MM THK) | ||
| 50 | 9J-8126 | [1] | PLUG-ORIFICE | |
| AVAILABLE REPLACEMENT PART(S): | ||||
| 446-3079 ABJ | [1] | RING-DRIVE | ||
| A | NOT PART OF THIS GROUP | |||
| B | USE AS REQUIRED | |||
| C | CHANGE FROM PREVIOUS TYPE | |||
| J | PART MARKED J IS A CLASSIC OPTIONAL SERVICE REPLACEMT FOR PART MARKED J |
- We could supply the following spare parts
1 Hydraulic parts: hydraulic pump, main valve, hydraulic cylinder, final drive, travel motor, swing machinery, swing motor etc.
2 Engine parts: engine ass’y, piston, piston ring, cylinder block, cylinder head, crankshaft, turbocharger, fuel injection pump, starting motor and alternator etc.
3 Undercarriage part: Track roller, Carrier roller, Track Link, Track shoe, Sprocket, Idler and Idler cushion etc.
4 Cab parts: operator’s cab, wiring harness, monitor, controller, seat, door etc.
5 Cooling parts: Radiator, air conditioner, compressor, after cooler etc.
6 Other parts: Service kit, swing circle, engine hood, swing joint, fuel tank, filter, boom, arm, bucket etc.
-
Advantage
1. Offer Top quality & competitive products
2. Support 12-month warranty
3. 100% tested before shipping
4. Delivery in time
5. A wide range of Oil Pressure Sensor, Fuel Tank Level Sensor, Temperature Sensor, Speed Sensor for excavator
6. More than 15 years production and 11 years foreign trade experience
7. Professional QC team
8. Best sales team, 24 hours service
- Packing and Shipping
Packing Details :
inner packing : plastic film for wrapping
external packing : wooden
Shipping :
within 3 days after received the payment , by air or by express or by sea on the basis of the
quantity and emergency circumstances.
1. By Couriers: DHL, UPS, FEDEX, TNT are the main courier companies we are cooperated,
2. By Air: Delivery from the Guangzhou air port to customer's destination city air port.
3. By Sea: Delivery from the Huangpu port .
