65.04101-0032 65.04101-0025A Intake Valve DOOSAN Excavator Spare Parts For DX225LCA DB58
- 65.04101-0032 65.04101-0025A Intake Valve DOOSAN Excavator Spare Parts For DX225LCA DB58
- Specifiion
| Name | Intake Valve |
| Parts No | 65.04101-0032 65.04101-0025A |
| Machine Model | DX225LCA DB58 |
| egory | Control Valve |
| Lead time | 1-3 DAYS |
| Quality | Brand new, OEM quality |
| MOQ | 1 PCS |
| Means of transport | By sea/air, DHL FEDEX UPS TNT EMS |
| Packing | As request or standard packing |
- Compatible models
- More other valve parts fit for DOOSAN machine
| 9420-6031C VALVE;PACKAGE |
| Doosan |
| 2426-9039C VALVE;PILOT |
| Doosan |
| 2426-9039B VALVE;PILOT |
| Doosan |
| K1004312 VALVE;CONTROL |
| Doosan |
| 2420-9627A VALVE;RELIEF |
| Doosan |
| 235886 VALVE;RELIEF |
| Doosan |
| 9420-9027 VALVE;SWITCH |
| Doosan |
| K1002677 VALVE;SOLENOID |
| Doosan |
| 2420-9627B VALVE;RELIEF |
| Doosan |
| 9426-6009 VALVE;SOLENOID |
| Doosan |
| 426-00330B VALVE;SOLENOID |
| Doosan |
| 65.04101-0025A VALVE;EXHAUST |
| Doosan |

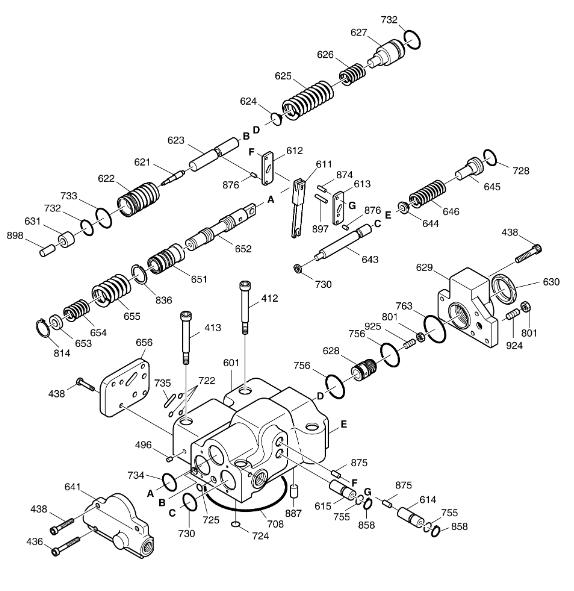

- alog parts list
| Pos. | Part No | Qty | Parts name | Comments |
| -. | K9001833 | [2] | REGULATOR ASS'Y | |
| 412 | S2209661 | [2] | BOLT | |
| 413 | S2210071 | [2] | BOLT | |
| 436 | S2205261 | [2] | BOLT | |
| 438 | S2204861 | [10] | BOLT | |
| 496 | 181-00318 | [5] | BOLT;SOCKER | |
| 601 | 1.402-00055 | [1] | CASING(A) | |
| 611 | 1.357-00014 | [1] | LEVER;FEEDBACK(A) | |
| 612 | 1.357-00005 | [1] | LEVER 1(A) | |
| 613 | 1.357-00008 | [1] | LEVER 2(B) | |
| 614 | 1.181-00136 | [1] | PLUG;CENTER(A) | |
| 615 | 1.181-00090 | [1] | PLUG;ADJUST(A) | |
| 621 | 1.409-00189 | [1] | PISTON;COMPEN | |
| 622 | 1.402-00036 | [1] | CAASE,PISTON | |
| 623 | 1.428-00208 | [1] | ROD;COMPEN | |
| 624 | 1.131-00165 | [1] | SEAT;SPRING(C) | |
| 625 | 1.131-00143 | [1] | SPRING;OUTER | |
| 626 | 1.131-00139 | [1] | SPRING;INNER | |
| 627 | K9001834 | [1] | RING;ADJUST(C) | |
| 628 | K9001835 | [1] | SCREW,ADJUST(C) | |
| 629 | K9001836 | [1] | COVER C(A) | |
| 630 | 1.121-00044 | [1] | NUT;LOCK | |
| 631 | K9001837 | [1] | SLEEVE;PF | |
| 641 | K9001838 | [1] | COVER;PILOT | |
| 643 | 1.409-00204 | [1] | PISTON;PILOT | |
| 644 | 1.131-00170 | [1] | SEAT;SPRING(Q) | |
| 645 | 1.115-00171 | [1] | RING;ADJUST(Q) | |
| 646 | 1.131-00157 | [1] | SPRING;PILOT | |
| 651 | 1.425-00001 | [1] | SLEEVE | |
| 652 | 1.424-00038 | [1] | SPOOL(A) | |
| 653 | 1.131-00166 | [1] | SEAT;SPRING | |
| 654 | 1.131-00160 | [1] | SPRING;RETURN | |
| 655 | 1.131-00172 | [1] | SPRING;SET | |
| 656 | 1.430-00017 | [1] | COVER | |
| 708 | S8010755 | [1] | O-RING 1BG-75 | |
| 722 | S8000061 | [3] | O-RING | |
| 724 | S8000085 | [9] | O-RING | |
| 725 | S8000111 | [1] | O-RING | |
| 728 | S8000181 | [1] | O-RING | |
| 730 | S8000221 | [1] | O-RING | |
| 732 | S8000161 | [1] | O-RING | |
| 733 | S8000201 | [1] | O-RING | |
| 734 | S8010251 | [1] | O-RING | |
| 735 | S8002721 | [1] | O-RING | |
| 755 | S8000111 | [2] | O-RING | |
| 756 | S8000261 | [1] | O-RING | |
| 763 | S8010351 | [1] | O-RING | |
| 801 | S4012533 | [2] | NUT | |
| 814 | S6500100 | [1] | RING,SNAP | |
| 836 | 1.115-00366 | [1] | RING;STOP | |
| 858 | S6510150 | [2] | RING,SNAP | |
| 874 | 1.123-00007 | [1] | PIN | |
| 875 | 1.123-00012 | [2] | PIN | |
| 876 | 1.123-00014 | [2] | PIN | |
| 887 | 1.123-00009 | [1] | PIN | |
| 897 | 1.123-00016 | [1] | PIN | |
| 898 | K9001839 | [1] | PIN | |
| 924 | S3524008 | [1] | SCREW,SET | |
| 925 | 120-00199 | [1] | SCREW,ADJUST(Qi) |
- We could supply the following spare parts
1 Hydraulic parts: hydraulic pump, main valve, hydraulic cylinder, final drive, travel motor, swing machinery, swing motor etc.
2 Engine parts: engine ass’y, piston, piston ring, cylinder block, cylinder head, crankshaft, turbocharger, fuel injection pump, starting motor and alternator etc.
3 Undercarriage part: Track roller, Carrier roller, Track Link, Track shoe, Sprocket, Idler and Idler cushion etc.
4 Cab parts: operator’s cab, wiring harness, monitor, controller, seat, door etc.
5 Cooling parts: Radiator, air conditioner, compressor, after cooler etc.
6 Other parts: Service kit, swing circle, engine hood, swing joint, fuel tank, filter, boom, arm, bucket etc.
-
Advantage
1. Offer Top quality & competitive products
2. Support 12-month warranty
3. 100% tested before shipping
4. Delivery in time
5. A wide range of Oil Pressure Sensor, Fuel Tank Level Sensor, Temperature Sensor, Speed Sensor for excavator
6. More than 15 years production and 11 years foreign trade experience
7. Professional QC team
8. Best sales team, 24 hours service
- Packing and Shipping
Packing Details :
inner packing : plastic film for wrapping
external packing : wooden
Shipping :
within 3 days after received the payment , by air or by express or by sea on the basis of the
quantity and emergency circumstances.
1. By Couriers: DHL, UPS, FEDEX, TNT are the main courier companies we are cooperated,
2. By Air: Delivery from the Guangzhou air port to customer's destination city air port.
3. By Sea: Delivery from the Huangpu port .
