6251-31-2030 6251312030 Piston Ring Fitting For Excavator KOMATSU PC400 PC450
- 6251-31-2030 6251312030 Piston Ring Fitting For Excavator KOMATSU PC400 PC450
- Specifiion
| egory | KOMATSU Engine Parts |
| Name | Piston ring |
| Parts No | 6251-31-2030 6251312030 |
| Machine Model | PC400 PC450 |
| Lead time | 1-3 DAYS |
| Quality | Brand new, OEM quality |
| MOQ | 1 PCS |
| Means of transport | By sea/air, DHL FEDEX UPS TNT EMS |
| Packing | As request or standard packing |
- Compatible models
DUMP TRUCKS HM300
ENGINES SAA6D125E
EXCAVATORS PC400 PC450
WHEEL LOADERS WA470 WA480 Komatsu

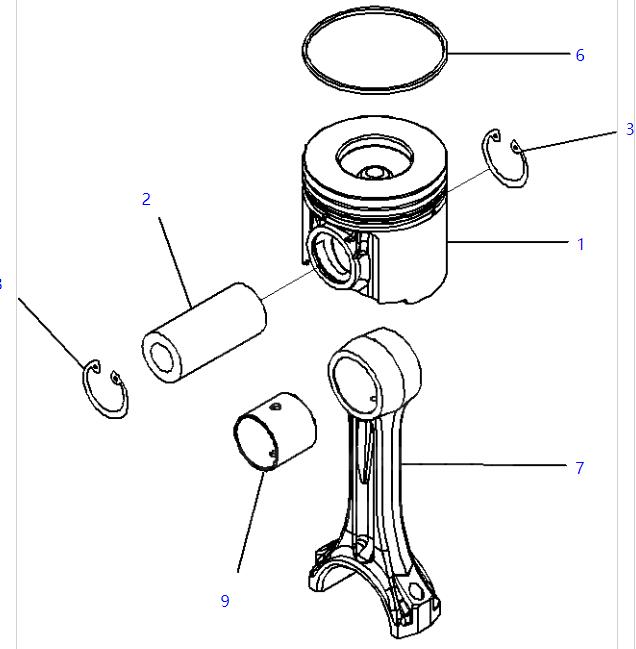

- alog parts list
| Pos. | Part No | Qty | Parts name | Comments |
| 1 | 6251-31-2510 | [6] | Piston Komatsu | 3.14 kg. |
| ["SN: 560004-UP"] | ||||
| 2 | 6151-31-2410 | [6] | Pin, Piston Komatsu China | 1.108 kg. |
| ["SN: 560004-UP"] | ||||
| 3 | 04065-04818 | [12] | Ring, Snap, Snap Komatsu OEM | 0.007 kg. |
| ["SN: 560004-UP"] | ||||
| 6251-31-2030 | [6] | Ring Assembly, Piston Komatsu | 0.1 kg. | |
| ["SN: 560004-UP"] |3. | ||||
| 4. | 6251-31-2210 | [1] | Ring, Top Komatsu | 0.1 kg. |
| ["SN: 560004-UP", "SCC: C1"] analogs:["6251312030"] | ||||
| 5. | 6251-31-2220 | [1] | Ring, Second Komatsu | 0.1 kg. |
| ["SN: 560004-UP", "SCC: C1"] analogs:["6251312030"] | ||||
| 6. | 6251-31-2230 | [1] | Ring, Oil Komatsu | 0.1 kg. |
| ["SN: 560004-UP", "SCC: C1"] analogs:["6251312030"] | ||||
| 6251-31-3100 | [6] | Rod Assembly, Connecting Komatsu | 4.072 kg. | |
| ["SN: 560004-UP"] |6. | ||||
| 7. | 6151-31-3111 | [1] | Rod, Connecting Komatsu OEM | 4.04 kg. |
| ["SN: 560004-UP", "SCC: C1"] analogs:["6151313101", "6151313100", "6151313110"] | ||||
| 8. | 6150-31-3120 | [1] | Cap, Connecting Rod Komatsu China | |
| ["SN: 560004-UP", "SCC: C1"] | ||||
| 9. | 6251-31-3130 | [1] | Bushing Komatsu | 0.166 kg. |
| ["SN: 560004-UP"] | ||||
| 10. | 6150-31-3310 | [2] | Bolt Komatsu OEM | 0.13 kg. |
| ["SN: 560004-UP"] | ||||
| 11. | 02400-10413 | [2] | Pin, Dowel Komatsu | 0.004 kg. |
| ["SN: 560004-UP"] analogs:["0240020413"] | ||||
| 12 | 6151-31-3050 | [6] | Metal Assembly, Standard Komatsu | 0.23 kg. |
| ["SN: 560004-UP"] | ||||
| 6152-31-3530 | [1] | Metal, Upper Standard Komatsu China | ||
| ["SN: 560004-UP", "SCC: C1"] |12. | ||||
| 6151-31-3440 | [1] | Metal, Lower Standard Komatsu China | ||
| ["SN: 560004-UP", "SCC: C1"] analogs:["6151313420"] |12. | ||||
| 6151-39-3050 | [6] | Metal Assembly, Undersize 0.25mm Komatsu China | ||
| ["SN: 560004-UP"] analogs:["6152393510"] |12. | ||||
| 6152-39-3510 | [1] | Metal, Upper Undersize 0.25mm Komatsu China | ||
| ["SN: 560004-UP", "SCC: C1"] analogs:["6151393050"] |12. | ||||
| 6151-39-3440 | [1] | Metal, Lower Undersize 0.25mm Komatsu OEM | 1.5 kg. | |
| ["SN: 560004-UP", "SCC: C1"] analogs:["6151393040"] |12. | ||||
| 6151-38-3050 | [6] | Metal Assembly, Undersize 0.50mm Komatsu China | ||
| ["SN: 560004-UP"] analogs:["6152383510"] |12. | ||||
| 6152-38-3510 | [1] | Metal, Upper Undersize 0.50mm Komatsu China | ||
| ["SN: 560004-UP", "SCC: C1"] analogs:["6151383050"] |12. | ||||
| 6151-38-3440 | [1] | Metal, Lower Undersize 0.50mm Komatsu China | 0.252 kg. | |
| ["SN: 560004-UP", "SCC: C1"] analogs:["6151383040"] |12. | ||||
| 6151-37-3050 | [6] | Metal Assembly, Undersize 0.75mm Komatsu China | ||
| ["SN: 560004-UP"] analogs:["6152373510"] |12. | ||||
| 6152-37-3510 | [1] | Metal, Upper Undersize 0.75mm Komatsu China | ||
| ["SN: 560004-UP", "SCC: C1"] analogs:["6151373050"] |12. | ||||
| 6151-37-3440 | [1] | Metal, Lower Undersize 0.75mm Komatsu | 0.304 kg. | |
| ["SN: 560004-UP", "SCC: C1"] analogs:["6151373040"] |12. | ||||
| 6151-36-3050 | [6] | Metal Assembly, Undersize 1.00mm Komatsu | 0.27 kg. | |
| ["SN: 560004-UP"] |12. | ||||
| 6152-36-3510 | [1] | Metal, Upper Undersize 1.00mm Komatsu | 0.27 kg. | |
| ["SN: 560004-UP", "SCC: C1"] analogs:["6151363050"] |12. | ||||
| 6151-36-3440 | [1] | Metal, Lower Undersize 1.00mm Komatsu OEM | 0.26 kg. | |
| ["SN: 560004-UP", "SCC: C1"] analogs:["6151363040"] |12. | ||||
- More other piston parts applied to KOMASTU equipment
| 708-2L-28540 PISTON |
| AIR, D155A, D155AX, D375A, D475A, D475ASD, D65EX, D65PX, D65WX, HYDRAULIC, PC130, PC138, PC138US, PC160, PC190, PC200, PC220, PC228, PC228US, PC270, PC300, PC350, PC400, PC450, PRESSURE, RAIN, WA500, ... |
| 421-33-31320 PISTON |
| WA450, WA470, WA480 |
| 425-43-27290 PISTON |
| HM250, HM300, HM300TN, HM350, HM400, WA500, WD500, WF550, WF550T |
| 56D-33-11120 PISTON |
| HM250, HM300, HM300TN |
| 421-33-31331 PISTON |
| WA470, WA480 |
| 714-16-12660 PISTON,1ST AND 3RD |
| WA300, WA320, WA470, WA480 |
| 6251-31-2510 PISTON |
| HM300, PC400, PC450, SAA6D125E, WA470, WA480 |
| 708-2H-03022 PISTON ASS'Y,SERVO |
| BR580JG, PC400, PC450, PC550, WA1200 |
| 500468651 PISTON |
| WB91R, WB95R, WB98A |
| 198-63-12160 PISTON |
| D455A |
- We could supply the following spare parts
1 Hydraulic parts: hydraulic pump, main valve, hydraulic cylinder, final drive, travel motor, swing machinery, swing motor etc.
2 Engine parts: engine ass’y, piston, piston ring, cylinder block, cylinder head, crankshaft, turbocharger, fuel injection pump, starting motor and alternator etc.
3 Undercarriage part: Track roller, Carrier roller, Track Link, Track shoe, Sprocket, Idler and Idler cushion etc.
4 Cab parts: operator’s cab, wiring harness, monitor, controller, seat, door etc.
5 Cooling parts: Radiator, air conditioner, compressor, after cooler etc.
6 Other parts: Service kit, swing circle, engine hood, swing joint, fuel tank, filter, boom, arm, bucket etc.
-
Advantage
1. Offer Top quality & competitive products
2. Support 12-month warranty
3. 100% tested before shipping
4. Delivery in time
5. A wide range of Oil Pressure Sensor, Fuel Tank Level Sensor, Temperature Sensor, Speed Sensor for excavator
6. More than 15 years production and 11 years foreign trade experience
7. Professional QC team
8. Best sales team, 24 hours service
- Packing and Shipping
Packing Details :
inner packing : plastic film for wrapping
external packing : wooden
Shipping :
within 3 days after received the payment , by air or by express or by sea on the basis of the
quantity and emergency circumstances.
1. By Couriers: DHL, UPS, FEDEX, TNT are the main courier companies we are cooperated,
2. By Air: Delivery from the Guangzhou air port to customer's destination city air port.
3. By Sea: Delivery from the Huangpu port .
- Product Warranty
1. Warranty Period: 3 Months' warranty from the date of arrival. Longer period of 6 months' warranty could be offered with higher price level.
2. Warranty type: replacement of the parts that have quality problem.
3. Warranty is not valid for below s
* Cutomer give wrong information about the order
* Force Majeure
* Wrong installation and operation
* Rust because of wrong stock & maintenance
