21N6-32102 21N632102 Cpu Controller For HYUNDAI Excavator Electric Parts R210LC7
Price:
Negotiable
MOQ:
1 PCS
Delivery Time:
3-7 working days
Brand:
OEM
Product Description
- 21N6-32102 21N632102 Cpu Controller For HYUNDAI Excavator Electric Parts R210LC7
- Specifiion
| spare parts name | Cpu controller |
| Equipment Model | R210LC7 |
| Parts egory | HYUNDAI excavator electric parts |
| Spare parts Condition | Brand new, OEM quality |
| MOQ of order(PCS, SET) | 1 PCS |
| Parts Availability | In stock |
| Delivery Lead time | 1-3 days |
- Compatible models
7-SERIES CRAWLER EXCAVATOR R210LC7 Hyundai
- More other controller parts applicable for HYUNDAI machine
| 21N6-42100 CPU CONTROLLER |
| R210LC7 |
| 21N5-20020 CPU CONTROLLER |
| R170W7 |
| 21N5-32100 CPU-CONTROLLER |
| R160LC7, R180LC7 |
| 21EG-32112 CPU CONTROLLER |
| R160LC3 |
| 21EG-32111 CPU CONTROLLER |
| R160LC3 |
| 21N4-32300 CPU CONTROLLER |
| R140W7 |
| 21Q6-40040 CPU-PCB |
| R1200-9, R140LC9, R140LC9S, R140W9, R140W9S, R145CR9, R160LC9, R160LC9S, R170W9, R170W9S, R180LC9, R180LC9S, R180W9S, R210LC9, R210LC9BC, R210LC9BH, R210NLC9, R210W-9, R210W9MH, R210W9S, R235LCR9, R25... |
| 21N4-33102 CPU CONTROLLER |
| R140LC-7 |
| 21N4-33101 CPU CONTROLLER |
| R140LC-7 |
| 21N4-33100 CPU CONTROLLER |
| R140LC-7 |

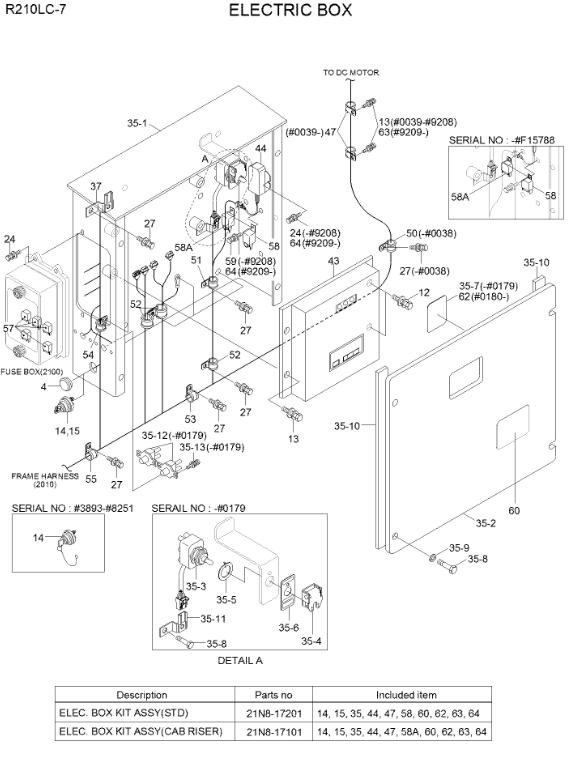

- Parts list diagram
| Pos. | Part No | Qty | Parts name | Comments |
| 4 | S661-210300 | [1] | CAP-RUBBER | |
| 12 | S035-082522 | [2] | BOLT-W/WASHER | |
| 13 | S035-081622 | [2] | BOLT-W/WASHER | |
| 13 | S035-081622 | [4] | BOLT-W/WASHER | |
| 13 | S035-081622 | [2] | BOLT-W/WASHER | |
| 14 | 21L7-10500 | [1] | SWITCH-MASTER | SEE 2020 |
| 14 | 21N4-10441 | [1] | SWITCH-MASTER | |
| K14. | 21L7-10500 | [1] | SWITCH-MASTER | |
| K14. | 21L7-10501 | [1] | SWITCH-MASTER | |
| 14-1. | 21N4-10441K | [1] | KEY-MASTER SWITCH | |
| 15 | 21EN-00420 | [1] | DECAL-MASTER SW | SEE 2020 |
| 15 | 21N4-10451 | [1] | DECAL-MASTER SWITCH | |
| K15. | 21LD-34180 | [1] | DECAL-MASTER SWITCH | |
| 24 | S035-062022 | [6] | BOLT-W/WASHER | |
| 24 | S035-062026 | [4] | BOLT-W/WASHER | |
| 27 | S037-102026 | [7] | BOLT-W/WASHER | |
| N35. | 21N6-20102 | [1] | ELECTRIC BOX ASSY | |
| K35. | 21N8-00701 | [1] | ELECTRIC BOX ASSY | |
| 35-1. | 21N6-20113 | [1] | ELECTRIC BOX WA | |
| 35-1. | 21N6-20114 | [1] | ELECTRIC BOX WA | |
| 35-1. | 21N8-00710 | [1] | ELECTRIC BOX WA | |
| 35-2. | 21N6-20152 | [1] | PLATE-FRONT COVER | |
| 35-3. | 21N6-20410 | [1] | SWITCH-TOGGLE | |
| 35-4. | 21EN-00350 | [1] | SECURITY CAP ASSY | |
| 35-5. | 21EN-00320 | [1] | LOCKING RING | |
| 35-6. | 21N6-20161 | [1] | DECAL-PROLIX SWITCH | |
| 35-7. | 21N6-20170 | [1] | DECAL-CAUTION | |
| 35-8. | S017-100162 | [5] | BOLT-HEX | |
| 35-8. | S017-100162 | [4] | BOLT-HEX | |
| 35-9. | S411-100002 | [4] | WASHER-SPRING | |
| 35-10. | 21N6-20180 | [2] | PAD-RUBBER | |
| 35-11. | 25D1-10650 | [1] | CLIP ASSY | |
| 35-12. | 21N6-20330 | [2] | CIRCUIT BREAKER | |
| 35-13. | S031-051511 | [4] | BOLT-W/WASHER | |
| 37 | 25D1-10650 | [1] | CLIP ASSY | |
| 43 | 21N6-32102 | [1] | CPU CONTROLLER | |
| 43 | 21N6-42100 | [1] | CPU CONTROLLER | |
| 43 | 21N6-42101 | [1] | MCU CONTROLLER | |
| 44 | 21E7-2000 | [1] | RESISTER-PROLIX | OPT |
| 44 | 21Q4-10900 | [1] | RESISTOR ASSY | OPT |
| K44. | 21Q4-20100 | [1] | RESISTOR ASSY | OPT |
| 47 | S593-000752 | [2] | CLIP-HARNESS | |
| K47. | 21E9-00170 | [2] | CLIP-HARNESS | |
| K47. | S593-000902 | [2] | CLIP-HARNESS | |
| 50 | S543-080002 | [1] | CLAMP-TUBE | |
| 51 | S543-120002 | [1] | CLAMP-TUBE | |
| 52 | S543-160002 | [2] | CLAMP-TUBE | |
| 53 | S543-200002 | [1] | CLAMP-TUBE | |
| 55 | S543-260002 | [1] | CLAMP-TUBE | |
| 57 | 24L1-05100 | [5] | RELAY | |
| K58. | 21E4-0011 | [1] | RELAY ASSY | FUEL WARMER,OPT |
| K58. | 22FV-24110 | [1] | RELAY | FUEL WARMER,OPT |
| K58A. | 21E4-0011 | [1] | RELAY ASSY | HD LAMP,C/RISER |
| K58A. | 22FV-24110 | [1] | RELAY | HD LAMP,C/RISER |
| 59 | S035-061622 | [1] | BOLT-W/WASHER | |
| K60. | 21N3-10080 | [1] | DECAL-RELAY | |
| 62 | 21N8-00621 | [1] | DECAL-EMER CONTROL | |
| K62. | 21N8-12040 | [1] | DECAL-EMER CONTROL | |
| K63. | S037-102026 | [2] | BOLT-W/WASHER | |
| K64. | S035-061526 | [4] | BOLT-W/WASHER | |
| K. | 21N8-17200 | [1] | ELEC BOX KIT ASSY | SEE ILLUST |
| K. | 21N8-17201 | [1] | ELEC.BOX KIT ASSY | SEE ILLUST |
| K. | 21N8-17100 | [1] | ELEC. BOX KIT ASSY | SEE ILLUST |
| K. | 21N8-17101 | [1] | ELEC.BOX KIT ASSY | SEE ILLUST |
- Advantage
1. The electrical parts are built to fit to the genuine engine system. The elctrical parts consist below parts: wire harness, sensors, switch, relay, controller, monitor, fuse, governor.
2. The engine parts are supplied strictly according to the genuine parts alog.
3. All the parts are manufactured from carefully selected materials with standard quality using standard production process.
4. Surplus stock and the various varioties of electrical parts that cover excavator for upto 70 Tons excavator. HITACHI KOMATSU HYUNDAI Vo-lvo DOOSAN KOBELCO SUMITOMO KATO JCB
- Warranty
1. Warranty Period: 3 Months' warranty from the date of arrival. Longer period of 6 months' warranty could be offered with higher price level.
2. Warranty type: replacement of the parts that have quality problem.
3. Warranty is not valid for below s
* Cutomer give wrong information about the order
* Force Majeure
* Wrong installation and operation
* Rust because of wrong stock & maintenance
- Packing & Delivery
* Strong carton or wooden box for gear components. Wooden box for gearbox assembly
* Delivery methods: By Sea, By air to local internation airport, By express like DHL TNT FEDEX
