XKAQ00035 Gauge Pipe HYUNDAI Excavator Spare Parts For R140LC-7 R160LC-7
- XKAQ00035 Gauge Pipe HYUNDAI Excavator Spare Parts For R140LC-7 R160LC-7
- Specifiion
| Name | Gauge Pipe |
| Parts No | 31QA-02080 |
| Machine Model | R140LC-7 R160LC7 R160LC7A R180LC7 |
| egory | Swing Reduction Gear |
| Lead time | 1-3 DAYS |
| Quality | Brand new, OEM quality |
| MOQ | 1 PCS |
| Means of transport | By sea/air, DHL FEDEX UPS TNT EMS |
| Packing | As request or standard packing |
- Compatible models
7 SERIES WHEEL EXCAVATOR R140W7 R170W7 R170W7A R200W7
7-SERIES CRAWLER EXCAVATOR R140LC-7 R160LC7 R160LC7A R180LC7 R180LC7A R210LC7 R210NLC7 R250LC7 R250LC7A R290LC7 R290LC7A R290LC7H R300LC7 R305LC7 R320LC7 R320LC7A
9-SERIES CRAWLER EXCAVATOR R250LC9 R250LC9A R260LC9S R290LC9 R290LC9MH R300LC9A R300LC9S R300LC9SH RB260LC9S Hyundai
- More other gauge pipe parts fit for HYUNDAI machine
| 31Y1-32901GG PIPE ASSY-B |
| RB260LC9S |
| 31Q7-91611 PIPE WA |
| HX260L, R250LC9, R250LC9A, R260LC9S |
| 31Q7-91621 PIPE WA |
| HX260L, R250LC9, R250LC9A, R260LC9S |
| 31Q8-91611 PIPE ASSY |
| HX300L, R290LC9, R300LC9A, R300LC9S, R300LC9SH |
| 31Q8-91621 PIPE ASSY |
| HX300L, R290LC9, R300LC9A, R300LC9S, R300LC9SH |
| 31Y1-32651 PIPE ASSY-BV,LH |
| R250LC9, R250LC9A |
| 31Y1-32661 PIPE ASSY-BV,RH |
| R250LC9, R250LC9A |
| 31Y1-32441 PIPE ASSY-RV |
| R250LC9, R250LC9A |
| 31Y1-36101 PIPE ASSY-BV |
| R290LC9, R300LC9S, R300LC9SH |
| 31Y1-36111 PIPE ASSY-BV,RH |
| R290LC9, R300LC9A, R300LC9S, R300LC9SH |
| 31Y1-36121 PIPE ASSY-RV |
| R290LC9, R300LC9A, R300LC9S, R300LC9SH |
| 31Q8-91741 PIPE WA |
| R290LC9, R300LC9A, R300LC9S, R300LC9SH |
| 31N4-92290 PIPE ASSY |
| R140LC-7, R140LC-7A, R140W7, R140W7A |
| 31N4-92280 PIPE ASSY |
| R140LC-7, R140LC-7A, R140W7, R140W7A |
| 31N4-92270 PIPE ASSY |
| R140LC-7, R140LC-7A, R140W7, R140W7A |
| 31N4-92210 PIPE ASSY |
| R140LC-7 |
| 31N4-92220 PIPE ASSY |
| R140LC-7 |
| 31N4-92230 PIPE ASSY |
| R140LC-7 |
| 31N4-92171 PIPE ASSY |
| R140LC-7, R140LC-7A |
| 31N4-92200 PIPE ASSY |
| R140LC-7, R140LC-7A |
| 31N4-92190 PIPE ASSY |
| R140LC-7, R140LC-7A |
| 31N4-95630 PIPE ASSY |
| R140LC-7, R140LC-7A, R140W7, R140W7A |
| 31N4-95601 PIPE ASSY |
| R140LC-7, R140LC-7A, R140W7, R140W7A |
| 31N4-92260 PIPE ASSY |
| R140LC-7, R140LC-7A, R140W7, R140W7A |
| 31Y1-18130 PIPE ASSY-LH |
| R140LC-7, R140LC-7A, R140W7, R140W7A |
| 31Y1-18140 PIPE ASSY-RH |
| R140LC-7, R140LC-7A, R140W7, R140W7A |
| 31Y1-18150 PIPE ASSY-LH |
| R140LC-7, R140LC-7A, R140W7, R140W7A |
| 31Y1-18160 PIPE ASSY-RH |
| R140LC-7, R140LC-7A, R140W7, R140W7A |
| 31Y1-18090 PIPE ASSY |
| R140LC-7, R140LC-7A, R140W7, R140W7A |
| 31Y1-18100 PIPE ASSY-B |
| R140LC-7, R140W7 |
| 31Y1-18190 PIPE ASSY |
| R140LC-7, R140LC-7A, R140W7, R140W7A |
| 31Y1-18200 PIPE ASSY |
| R140LC-7, R140LC-7A, R140W7, R140W7A |
| 31Y1-04010 PIPE ASSY-RH |
| R130LC, R130LC3, R140LC-7 |
| 31Y1-25000 PIPE ASSY-RH |
| R140LC-7, R140LC-7A |
| 31Y1-04000 PIPE ASSY-LH |
| R130LC, R130LC3, R140LC-7 |
| 31Y1-24990 PIPE ASSY-LH |
| R140LC-7, R140LC-7A |

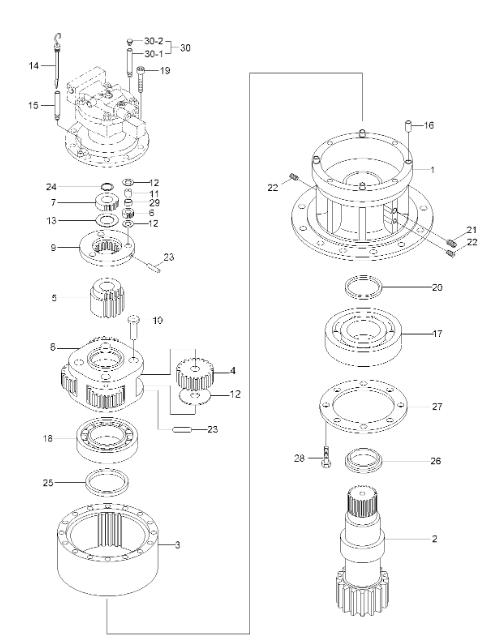

- alog parts list
| Pos. | Part No | Qty | Parts name | Comments |
| *. | @ | [1] | SWING MOTOR ASSY | SEE 4100 |
| *-2. | 31E6-12030 | [1] | SWING REDUCTION GEAR | |
| 1 | XKAQ-00250 | [1] | CASING | |
| 2 | XKAQ-00249 | [1] | SHAFT-DRIVE | |
| 3 | XKAQ-00102 | [1] | GEAR-RING | |
| 5 | XKAQ-00278 | [1] | GEAR-SUN NO.2 | |
| *-21. | XKAQ-00271 | [1] | CARRIER NO.1 ASSY | |
| 6 | XKAQ-00099 | [3] | GEAR-PLANET NO.1 | |
| 7 | XKAQ-00277 | [1] | GEAR-SUN NO.1 | |
| 9 | XKAQ-00096 | [1] | CARRIER NO.1 | |
| 11 | XKAQ-00094 | [3] | PIN ASSY NO.1 | |
| 12 | XKAQ-00093 | [6] | WASHER-THRUST(B) | |
| 13 | XKAQ-00057 | [1] | PLATE-SIDE 1 | |
| 23 | XKAQ-00086 | [3] | PIN-SPRING | |
| 24 | XKAQ-00085 | [4] | RING-STOP | |
| 29 | XKAQ-00080 | [3] | CAGE-NEEDLE | |
| *-22. | XKAQ-00272 | [1] | CARRIER NO.2 ASSY | |
| 4 | XKAQ-00101 | [4] | GEAR-PLANET NO.2 | |
| 8 | XKAQ-00097 | [1] | CARRIER NO.2 | |
| 10 | XKAQ-00095 | [4] | PIN ASSY NO.2 | |
| 12 | XKAQ-00093 | [4] | WASHER-THRUST(B) | |
| 23 | XKAQ-00086 | [4] | PIN-SPRING | |
| 14 | XKAQ-00034 | [1] | BAR-GAUGE | |
| 15 | XKAQ-00035 | [1] | PIPE-GAUGE | |
| 16 | XKAQ-00091 | [2] | PIN-KNOCK | |
| 17 | XKAQ-00090 | [1] | BEARING-SPH ROLLER | |
| 18 | XKAQ-00089 | [1] | BEARING-CYL ROLLER | |
| 19 | XKAQ-00088 | [10] | BOLT-SOCKET | |
| 20 | XKAQ-00087 | [1] | SEAL-OIL | |
| 21 | XKAQ-00049 | [1] | PLUG-PRESSURE | |
| 22 | XKAQ-00066 | [2] | PLUG | |
| 25 | XKAQ-00084 | [1] | RING-STOP | |
| 26 | XKAQ-00083 | [1] | SPACER | |
| 27 | XKAQ-00082 | [1] | PLATE-COVER | |
| 28 | XKAQ-00081 | [6] | BOLT-HEX | |
| 30 | XKAQ-00142 | [1] | AIR BREATHER ASSY | |
| 30-1. | HHI13-WP30 | [1] | POST | |
| 30-2. | HHI13-WP31 | [1] | CAP-BREATHER |
- We could supply the following spare parts
1 Hydraulic parts: hydraulic pump, main valve, hydraulic cylinder, final drive, travel motor, swing machinery, swing motor etc.
2 Engine parts: engine ass’y, piston, piston ring, cylinder block, cylinder head, crankshaft, turbocharger, fuel injection pump, starting motor and alternator etc.
3 Undercarriage part: Track roller, Carrier roller, Track Link, Track shoe, Sprocket, Idler and Idler cushion etc.
4 Cab parts: operator’s cab, wiring harness, monitor, controller, seat, door etc.
5 Cooling parts: Radiator, air conditioner, compressor, after cooler etc.
6 Other parts: Service kit, swing circle, engine hood, swing joint, fuel tank, filter, boom, arm, bucket etc.
-
Advantage
1. Offer Top quality & competitive products
2. Support 12-month warranty
3. 100% tested before shipping
4. Delivery in time
5. A wide range of Oil Pressure Sensor, Fuel Tank Level Sensor, Temperature Sensor, Speed Sensor for excavator
6. More than 15 years production and 11 years foreign trade experience
7. Professional QC team
8. Best sales team, 24 hours service
- Packing and Shipping
Packing Details :
inner packing : plastic film for wrapping
external packing : wooden
Shipping :
within 3 days after received the payment , by air or by express or by sea on the basis of the
quantity and emergency circumstances.
1. By Couriers: DHL, UPS, FEDEX, TNT are the main courier companies we are cooperated,
2. By Air: Delivery from the Guangzhou air port to customer's destination city air port.
3. By Sea: Delivery from the Huangpu port .
