723-40-71102 723-40-71103 Valve ASSY KOMATSU Excavator Spare Parts For PC200-7
- 723-40-71102 723-40-71103 Valve ASSY KOMATSU Excavator Spare Parts For PC200-7
- Specifiion
| Appliion | Excavator |
| Name | Valve |
| Parts No | 20Y-54-28911 20Y5428911 |
| Machine Model | PC200 PC210 PC220 PC228 PC228US PC230 |
| egory | Main Valve |
| Lead time | 1-3 DAYS |
| Quality | Brand new, OEM quality |
| MOQ | 1 PCS |
| Means of transport | By sea/air, DHL FEDEX UPS TNT EMS |
| Packing | As request or standard packing |
- Compatible models
EXCAVATORS PC200 PC210 PC220 PC228 PC228US PC230 PC230NHD PC240 PC270 PC270LL PC290 Komatsu
- More other valve fit for KOMATSU machine
| 20Y-60-31212 VALVE ASS'Y |
| BP500, BR300S, PC200, PC200LL, PC200SC, PC210, PC220, PC220LL, PC228, PC228US, PC230, PC308 |
| 723-90-76101 VALVE ASS'Y,SUCTION AND SAFETY |
| HB205, HB215, PC160, PC190, PC200, PC210, PC220, PC228, PC228US, PC240, PC270, PC290, PC308 |
| 723-40-71103 VALVE ASS'Y |
| BP500, PC200, PC200LL, PC210, PC220, PC228, PC240, PC290 |
| 723-40-91200 VALVE ASS'Y,SUCTION AND SAFETY |
| PC220, PC240, PC290, PC300, PC350, PC400, PC450, PRESSURE, RAIN |
| 723-46-20502 VALVE ASS'Y |
| PC220, PC230 |
| 723-40-92200 VALVE ASS'Y,RELIEF |
| PC220, PC230, PC240, PC270, PC270LL, PC290, PC308 |
| 723-40-92203 VALVE ASS'Y |
| PC220, PC240, PC270, PC308 |
| 07700-50240 VALVE |
| AIR, BOOM,, CARRIER, FRONT, HM250, HM300, PC130, PC138, PC138US, PC160, PC190, PC200, PC220, PC240, PC270, PC290, PC300, PC350, PC400, PC450, PC45MR, PC55MR, PC78US, PC78UU, PC88MR, PRESSURE, RAIN, WA... |
| 723-47-14300 VALVE ASS'Y |
| PC228, PC228US |
| 708-2L-04740 VALVE ASS'Y,LS |
| PC200, PC200SC, PC210 |
| 702-21-04800 VALVE ASS'Y,QUICK RETURN |
| COOLANT, PC600, PC650, PC700, PC800, PC800SE, PC850, PC850SE |
| 709-34-12101 VALVE ASS'Y |
| PC20, PC30 |
- alog parts list

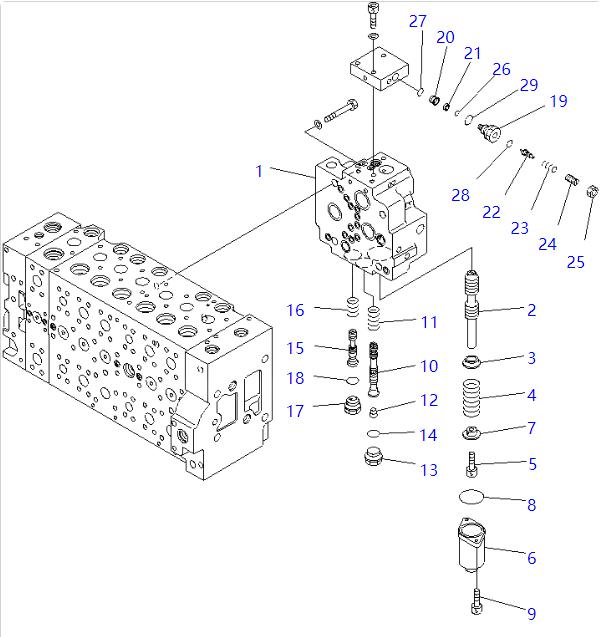

| Pos | Part No | Qty | Parts name | Comments |
| 723-47-20401 | [1] | VALVE ASS'Y Komatsu | 235 kg. | |
| ["SN: C70001--UP"] analogs:["7234720403", "7234720402", "7234720404"] |$1. | ||||
| [-1] | THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.Y1662-01A0 TO Y1662-19A0. | |||
| |$2. | ||||
| 723-40-71102 | [1] | VALVE ASS'Y Komatsu OEM | 24.002 kg. | |
| ["SN: C70001--UP"] analogs:["7234071103"] |$3. | ||||
| 3 | 723-40-71330 | [1] | RETAINER Komatsu China | |
| ["SN: C70001--UP"] | ||||
| 4 | 723-40-71340 | [1] | SPRING Komatsu China | |
| ["SN: C70001--UP"] | ||||
| 5 | 01252-60816 | [1] | BOLT Komatsu | 0.013 kg. |
| ["SN: C70001--UP"] | ||||
| 6 | 723-46-15111 | [1] | CAASE Komatsu | 0.25 kg. |
| ["SN: C70001--UP"] analogs:["7234615110"] | ||||
| 7 | 723-40-71350 | [1] | RETAINER Komatsu China | |
| ["SN: C70001--UP"] | ||||
| 8 | 07430-71380 | [1] | O-RING Komatsu | 0.006 kg. |
| ["SN: C70001--UP"] | ||||
| 9 | 01252-60820 | [2] | BOLT Komatsu | 0.015 kg. |
| ["SN: C70001--UP"] | ||||
| 11 | 723-40-71440 | [1] | SPRING Komatsu China | |
| ["SN: C70001--UP"] analogs:["7234071370"] | ||||
| 13 | 709-74-91860 | [1] | PLUG Komatsu China | |
| ["SN: C70001--UP"] | ||||
| 14 | 07002-12434 | [1] | O-RING Komatsu China | 0.01 kg. |
| ["SN: C70001--UP"] analogs:["0700202434", "0700213434"] | ||||
| 16 | 723-40-71390 | [1] | SPRING Komatsu | 0.02 kg. |
| ["SN: C70001--UP"] | ||||
| 17 | 723-40-61150 | [1] | PLUG Komatsu China | |
| ["SN: C70001--UP"] | ||||
| 20 | 702-21-55750 | [1] | COLLAR Komatsu China | |
| ["SN: C70001--UP"] | ||||
| 21 | 702-21-55760 | [1] | FILTER Komatsu China | |
| ["SN: C70001--UP"] | ||||
| 26 | 723-11-19660 | [1] | O-RING Komatsu China | |
| ["SN: C70001--UP"] | ||||
| 27 | 702-16-53920 | [1] | O-RING Komatsu | 0.001 kg. |
| ["SN: C70001--UP"] | ||||
| 29 | 07002-11623 | [1] | O-RING Komatsu China | 0.001 kg. |
| ["SN: C70001--UP"] analogs:["0700201623"] |
- We could supply the following spare parts
1 Hydraulic parts: hydraulic pump, main valve, hydraulic cylinder, final drive, travel motor, swing machinery, swing motor etc.
2 Engine parts: engine ass’y, piston, piston ring, cylinder block, cylinder head, crankshaft, turbocharger, fuel injection pump, starting motor and alternator etc.
3 Undercarriage part: Track roller, Carrier roller, Track Link, Track shoe, Sprocket, Idler and Idler cushion etc.
4 Cab parts: operator’s cab, wiring harness, monitor, controller, seat, door etc.
5 Cooling parts: Radiator, air conditioner, compressor, after cooler etc.
6 Other parts: Service kit, swing circle, engine hood, swing joint, fuel tank, filter, boom, arm, bucket etc.
-
Advantage
1. Offer Top quality & competitive products
2. Support 12-month warranty
3. 100% tested before shipping
4. Delivery in time
5. A wide range of Oil Pressure Sensor, Fuel Tank Level Sensor, Temperature Sensor, Speed Sensor for excavator
6. More than 15 years production and 11 years foreign trade experience
7. Professional QC team
8. Best sales team, 24 hours service
- Packing and Shipping
Packing Details :
inner packing : plastic film for wrapping
external packing : wooden
Shipping :
within 3 days after received the payment , by air or by express or by sea on the basis of the
quantity and emergency circumstances.
1. By Couriers: DHL, UPS, FEDEX, TNT are the main courier companies we are cooperated,
2. By Air: Delivery from the Guangzhou air port to customer's destination city air port.
3. By Sea: Delivery from the Huangpu port .
