6209-41-4110 6209414110 Intake Valve Fit KOMATSU Excavator PC200 PC210 PC220 PC250
- 6209-41-4110 6209414110 Intake Valve Fit KOMATSU Excavator PC200 PC210 PC220 PC250
- Spec Sheet
| Product name | Intake valve |
| Part number | 6209-41-4110 6209414110 |
| Model |
PC200 PC210 PC220 PC250 |
| egory group | Excavator engine parts |
| MOQ | 1 PCS |
| Warranty | 6 months |
| Payment term | T/T, Western Union, PAYPAL |
| Delivery time | 1-3 days after receiving the payment |
| Packing | As request or standard packing |
| Means of transport | By sea/air, DHL FEDEX UPS TNT EMS |
- Appliion
ENGINES S6D95L SA6D95L SAA6D95LE
EXCAVATORS PC200 PC210 PC220 PC250 Komatsu
- More valve parts fit for KOMATSU machinery
| 20Y-60-22262 VALVE ASS’Y |
| BR200T, BR550JG, PC200, PC228, PC228US, PC400, PC450 |
| 07700-51240 VALVE |
| PC200 |
| 07700-10240 VALVE |
| PC200, PC220 |
| ND447500-0210 VALVE |
| D155A, D155AX, D155C, D355A, D375A, D41E, D41P, D60P, D65E, D65EX, D66S, D75S, D85A, D85C, D85ESS, PC200, PC210, PC220, PC230 |
| 207-60-61201 VALVE ASS'Y |
| PC200, PC200LL, PC200SC, PC210, PC220, PC228, PC228US, PC230, PC250, PC300, PC300SC, PC340, PC350, PC380, PC400 |
| 206-60-51102 VALVE ASS'Y |
| BA100, BR120T, PC200, PC200LL, PC200SC, PC210, PC220, PC220LL, PC230, PC250, PC270, PC300, PC300SC, PC340, PC350, PC380, PC400 |
| 20Y-60-21700 VALVE ASS'Y |
| PC200, PC200CA, PC210, PC228, PC228US, PC228UU, PC230 |
| 20Y-62-27340 VALVE ASS'Y |
| PC200, PC200CA, PC210, PC220, PC240, PC250HD, PC290, PW200, PW220 |
| 20Y-62-27350 VALVE ASS'Y |
| PC200, PC200CA, PC210, PC220, PC240, PC250HD, PC290 |
| 20Y-977-K220 VALVE |
| PC200, PC210, PC240, PC290, PC340, PC380, PC450, PW130ES, PW150ES, PW170ES |

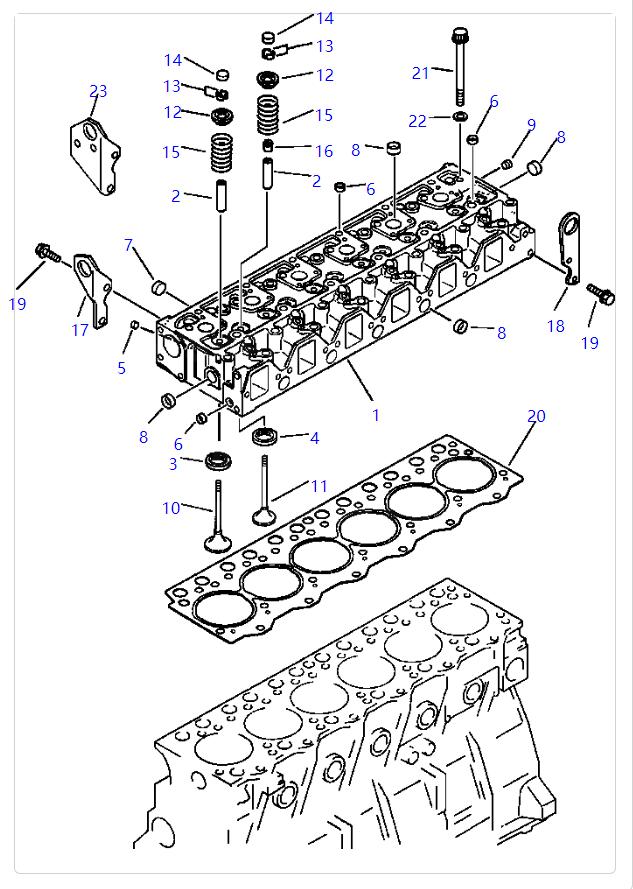

- Parts List Diagram
| Pos. | Part No | Qty | Parts name | Comments |
| 6209-11-1100 | [1] | CYLINDER HEAD ASSEMBLY, WITHOUT VALVE Komatsu OEM | 45 kg. | |
| |$0. | ||||
| 1. | NSS | [1] | HEAD, CYLINDER Komatsu China | |
| 2. | 6204-19-1310 | [12] | GUIDE, VALVE Komatsu OEM | 0.026 kg. |
| 3. | 6209-11-1430 | [6] | SEAT, INTAKE VALVE (STANDARD) Komatsu | 0.03 kg. |
| 3. | 6209-19-1430 | [6] | SEAT, INTAKE VALVE (OVER SIZE, 0.25mm) Komatsu China | |
| 3. | 6209-18-1430 | [6] | SEAT, INTAKE VALVE (OVER SIZE, 0.50mm) Komatsu China | |
| 4. | 6207-11-1440 | [6] | SEAT, EXHAUST VALVE (STANDARD) Komatsu OEM | 0.018 kg. |
| 4. | 6207-19-1440 | [6] | SEAT, EXHAUST VALVE (OVER SIZE, 0.25mm) Komatsu China | |
| 4. | 6207-18-1440 | [6] | SEAT, EXHAUST VALVE (OVER SIZE, 0.50mm) Komatsu China | |
| 5. | 07046-41008 | [6] | PLUG Komatsu | 0.001 kg. |
| 6. | 07046-41810 | [13] | PLUG Komatsu | 0.004 kg. |
| 7. | 07046-42216 | [5] | PLUG Komatsu | 0.008 kg. |
| analogs:["0704622216"] | ||||
| 8. | 07046-42516 | [15] | PLUG Komatsu OEM | 0.01 kg. |
| 9. | 02720-40104 | [1] | PLUG Komatsu | 0.003 kg. |
| 10 | 6209-41-4110 | [6] | VALVE, INTAKE Komatsu | 0.135 kg. |
| 11 | 6209-41-4210 | [6] | VALVE, EXHAUST Komatsu China | 0.112 kg. |
| 12 | 6204-41-4510 | [12] | SEAT, SPRING Komatsu China | 0.025 kg. |
| 13 | 6204-41-4520 | [24] | COLLET Komatsu | 0.01 kg. |
| 14 | 6204-41-4550 | [12] | CAP, VALVE Komatsu | 0.02 kg. |
| 15 | 6204-41-4431 | [12] | SPRING, VALVE Komatsu OEM | 0.054 kg. |
| 16 | 6204-41-4540 | [6] | SEAL, VALVE Komatsu China | 0.01 kg. |
| analogs:["6204415450"] | ||||
| 17 | 6206-11-1930 | [1] | HANGER, FRONT Komatsu China | |
| analogs:["6204111930"] | ||||
| 18 | 6206-11-1910 | [1] | HANGER, REAR Komatsu China | |
| analogs:["6207151980"] | ||||
| 19 | 01435-01020 | [4] | BOLT Komatsu | 0.023 kg. |
| analogs:["0143521020"] | ||||
| 20 | 6207-11-1822 | [1] | GASKET, HEAD Komatsu OEM | 0.5 kg. |
| analogs:["6206111830", "6206111810", "6206111812", "6207111821", "6207111810"] | ||||
| 20 | 6207-11-1821 | [1] | GASKET, HEAD Komatsu OEM | 0.5 kg. |
| analogs:["6206111830", "6206111810", "6206111812", "6207111822", "6207111810"] | ||||
| 21 | 6204-13-1610 | [25] | BOLT, HEAD Komatsu | 0.13 kg. |
| analogs:["6142111611", "6142111610"] | ||||
| 22 | 01643-51232 | [25] | WASHER Komatsu | 0.024 kg. |
| 22 | 01643-31232 | [6] | WASHER Komatsu | 0.027 kg. |
| analogs:["0164371232", "0164381232", "802170003", "R0164331232", "0614331232"] | ||||
| 23 | 6207-11-1910 | [1] | HANGER, FRONT Komatsu | 0.632 kg. |
- Description
The Swing drive reducer gearbox rotates the top of the Excavator on the chassis together with the slewing gear bearing.
Attributes: Heavy Duty Swing Drives are designed to be rebuilt and reused. The below following gear components are included in swing drive: sun gear, planetary gear, needle bearing, roller bearing, carrier, pinion shaft, pinion gear, oil seal, ring gear, swing housing .
- Advantage
2. The gear parts are supplied strictly according to the genuine parts alog.
3. All the gear components are manufactured from carefully selected materials with standard quality using standard production process heat treatment processes — including carburizing, nitriding, and induction hardening.
4. Surplus stock and the various varioties of gear parts that cover final and swign drive for upto 70 Tons excavator. HITACHI KOMATSU HYUNDAI Vo-lvo DOOSAN KOBELCO SUMITOMO KATO JCB
- Warranty
1. Warranty Period: 3 Months' warranty from the date of arrival. Longer period of 6 months' warranty could be offered with higher price level.
2. Warranty type: replacement of the parts that have quality problem.
3. Warranty is not valid for below s
* Cutomer give wrong information about the order
* Force Majeure
* Wrong installation and operation
* Rust because of wrong stock & maintenance
- Packing & Delivery
* Strong carton or wooden box for gear components. Wooden box for gearbox assembly
* Delivery methods: By Sea, By air to local internation airport, By express like DHL TNT FEDEX
