6136116510 6136-11-6510 Water Connector Fit KOMATSU Engine 4D105 6D105 S6D105

Name: 6136116510 6136-11-6510 Water Connector Fit KOMATSU Engine 4D105 6D105 S6D105
Brand: Guangzhou Anto Machinery Parts Co.,Ltd.

Price Negotiable

Price: Negotiable

MOQ: 1 PCS

Delivery Time: 3-7 working days

Brand: OEM

Product Description

6136116510 6136-11-6510 Water Connector Fit KOMATSU Engine 4D105 6D105 S6D105

Specifiion

Appliion	KOMATSU excavator engine parts
Name	Water connector
Parts No	6136116510 6136-11-6510
Model	4D105 6D105 S6D105
Delivery time	Stock for urgent delivery
Quality	Brand new, OEM quality
MOQ	1 PCS
Design	made in china
Means of transport	By sea/air, DHL FEDEX UPS TNT Express
Packing	As request or standard packing

Applicable models

ENGINES 4D105 6D105 S6D105 Komatsu

More connector parts to KOMATSU machine

SD4215-01300X0 CONNECTOR ASSEMBLY

6D105, 6D125, 6D125E, 6D140, 6D95L, GD605A, HM300, HM350, HM400, S6D105, S6D108, S6D108E, S6D110, S6D125, S6D125E, S6D140, SAA6D125E, SAA6D140E, WA470

6136-11-4550 CONNECTOR

6D105

6151-11-8650 CONNECTOR

6D125, 6D125E, S6D125, S6D125E

6162-15-4350 CONNECTOR

SAA6D170E, WA700

411-44-11670 CONNECTOR

HD200D, HD320, HD325, HD460, HD465, HD785, HD985, WS23S

281-35-19590 CONNECTOR

HD1200, HD200, HD255, HD320, HD325, HD405, HD465, HD605, HD785

6151-11-5890 CONNECTOR

S6D125

6732-61-6361 CONNECTOR

S4D102E, S6D102E, SAA4D102E

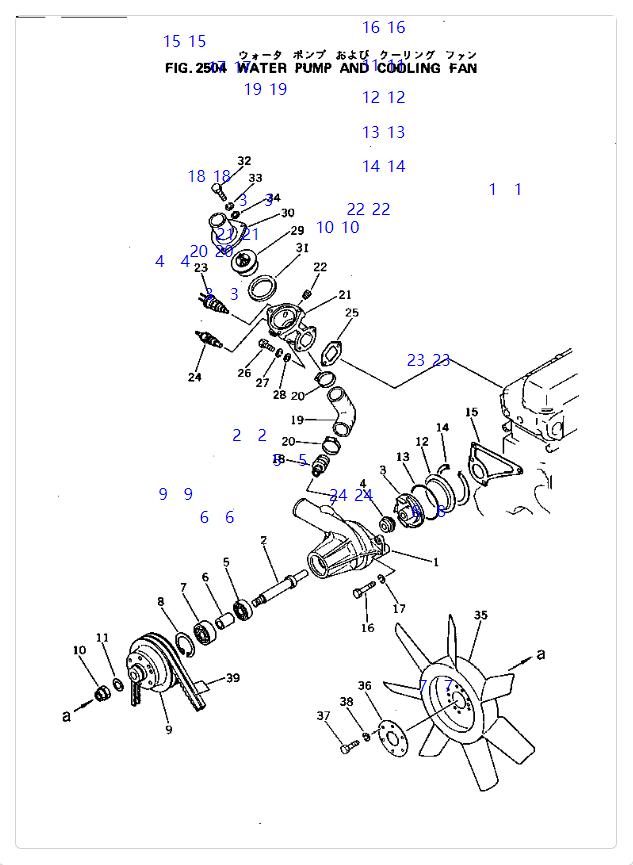

alog parts list

Pos.	Part No	Qty	Parts name	Comments
	6134-61-1610	[1]	WATER PUMP ASS'Y Komatsu China
			["SN: 151749-UP"] analogs:["RM6134611610"] \|$0.
1.	6134-61-1140	[1]	BODY Komatsu China
			["SN: 151749-UP"]
2.	6134-61-1320	[1]	SHAFT Komatsu	0.7 kg.
			["SN: 151749-UP"]
3.	6134-61-1330	[1]	IMPELLER Komatsu	0.6 kg.
			["SN: 151749-UP"]
4.	6610-61-1512	[1]	SEAL, WATER (K2) Komatsu	0.03 kg.
			["SN: 151749-UP"] analogs:["6610611520"]
5.	6676-62-1141	[1]	BEARING,BALL Komatsu	0.133 kg.
			["SN: 151749-UP"] analogs:["0600706205"]
6.	6131-62-1230	[1]	SPACER Komatsu	0.175 kg.
			["SN: 151749-UP"]
7.	6130-62-1520	[1]	BEARING,BALL Komatsu	0.396 kg.
			["SN: 151749-UP"]
8.	6676-62-1120	[1]	RING,SNAP Komatsu China
			["SN: 151749-UP"] analogs:["6600011120"]
9.	6134-61-3430	[1]	PULLEY Komatsu China
			["SN: 151749-UP"]
10.	01839-01821	[1]	NUT Komatsu China
			["SN: 151749-UP"] analogs:["6110631390", "6112631391", "6112631390"]
11.	01643-31845	[1]	WASHER Komatsu China	0.02 kg.
			["SN: 151749-UP"] analogs:["0164321845", "R0164331845"]
12.	6134-61-1120	[1]	COVER Komatsu China
			["SN: 151749-UP"]
13.	6140-61-1160	[1]	O-RING (K2) Komatsu	0.005 kg.
			["SN: 151749-UP"]
14.	6140-61-1170	[1]	RING,SNAP Komatsu	0.1 kg.
			["SN: 151749-UP"]
15	6136-61-1811	[1]	GASKET (K2) Komatsu	0.02 kg.
			["SN: 151749-UP"] analogs:["6136611820"]
16	01010-31050	[4]	BOLT Komatsu	0.042 kg.
			["SN: 151749-UP"] analogs:["01010E1050"]
17	01602-01030	[4]	WASHER,SPRING Komatsu	0.004 kg.
			["SN: 151749-UP"] analogs:["0160211030"]
18	6136-61-6111	[1]	NIPPLE Komatsu China
			["SN: 151749-UP"] analogs:["6136616110"]
19	6136-61-6120	[1]	HOSE Komatsu	0.13 kg.
			["SN: 151749-UP"]
20	07281-00489	[2]	CLAMP Komatsu	0.035 kg.
			["SN: 151749-UP"] analogs:["802660010"]
21	6136-11-6411	[1]	HOUSING Komatsu	0.55 kg.
			["SN: 151749-UP"]
22	07042-20108	[1]	PLUG Komatsu	0.008 kg.
			["SN: 151749-UP"] analogs:["0704230108"]
23	600-815-3580	[1]	SWITCH,THERMO Komatsu China
			["SN: 151749-UP"] analogs:["6008153581"]
24	198-06-11940	[1]	SENSOR Komatsu	0.034 kg.
			["SN: 151749-UP"]
25	6136-11-6821	[1]	GASKET (K1) Komatsu	0.01 kg.
			["SN: 151749-UP"] analogs:["6136116840"]
26	01010-31035	[2]	BOLT Komatsu	0.033 kg.
			["SN: 151749-UP"] analogs:["01010E1035", "0101061035"]
28	01640-01016	[2]	WASHER Komatsu	0.177 kg.
			["SN: 151749-UP"] analogs:["0164021016", "0164221016", "0164201016"]
29	600-421-6210	[1]	THERMOSTAT Komatsu	0.22 kg.
			["SN: 151749-UP"]
30	6136-11-6510	[1]	CONNECTOR Komatsu	0.215 kg.
			["SN: 151749-UP"]
31	6136-11-6810	[1]	GASKET (K1) Komatsu	0.01 kg.
			["SN: 151749-UP"]
32	01010-30830	[3]	BOLT Komatsu	0.017 kg.
			["SN: 151749-UP"] analogs:["01010E0830"]
33	01602-00825	[3]	WASHER,SPRING Komatsu	0.004 kg.
			["SN: 151749-UP"] analogs:["0160220825", "0231011020", "6124613790"]
34	01640-00816	[3]	WASHER Komatsu	0.002 kg.
			["SN: 151749-UP"] analogs:["0164020816"]
35	600-625-0580	[1]	FAN Komatsu China
			["SN: 151749-UP"]
36	6131-62-3310	[1]	PLATE Komatsu	0.19 kg.
			["SN: 151749-UP"]
37	01010-51020	[6]	BOLT Komatsu	0.161 kg.
			["SN: 151749-UP"] analogs:["0101081020", "801014093", "801015108"]
38	01602-21030	[6]	WASHER,SPRING Komatsu	0.004 kg.
			["SN: 151749-UP"] analogs:["YM22217100000"]
39	04121-21751	[1]	V-BELT SET Komatsu	0.572 kg.
			["SN: 151749-UP"]
39	04121-21750	[1]	V-BELT SET,(TROPICAL SANDY, DUSTY SPEC.) Komatsu	0.562 kg.
			["SN: 151749-UP"]

We could supply the following spare parts

1 Hydraulic parts: hydraulic pump, main valve, hydraulic cylinder, final drive, travel motor, swing machinery, swing motor etc.

2 Engine parts: engine ass’y, piston, piston ring, cylinder block, cylinder head, crankshaft, turbocharger, fuel injection pump, starting motor and alternator etc.

3 Undercarriage part: Track roller, Carrier roller, Track Link, Track shoe, Sprocket, Idler and Idler cushion etc.

4 Cab parts: operator’s cab, wiring harness, monitor, controller, seat, door etc.

5 Cooling parts: Radiator, air conditioner, compressor, after cooler etc.

6 Other parts: Service kit, swing circle, engine hood, swing joint, fuel tank, filter, boom, arm, bucket etc.

Advantage

1. Offer Top quality & competitive products

2. Support 6-month warranty

3. 100% tested before shipping

4. Delivery in time

5. A wide range of Oil Pressure Sensor, Fuel Tank Level Sensor, Temperature Sensor, Speed Sensor for excavator

6. More than 15 years production and 11 years foreign trade experience

7. Professional QC team

8. Best sales team, 24 hours service

Packing and Shipping

Packing Details :

inner packing : plastic film for wrapping

external packing : wooden

Shipping :

within 3 days after received the payment , by air or by express or by sea on the basis of the

quantity and emergency circumstances.

1. By Couriers: DHL, UPS, FEDEX, TNT are the main courier companies we are cooperated,

2. By Air: Delivery from the Guangzhou air port to customer's destination city air port.

3. By Sea: Delivery from the Huangpu port .
